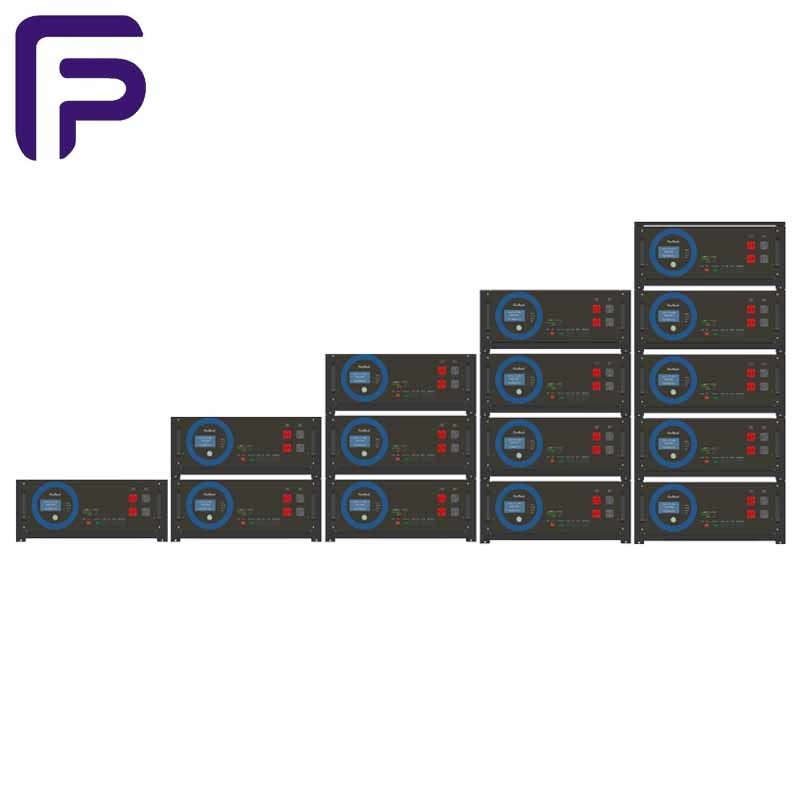

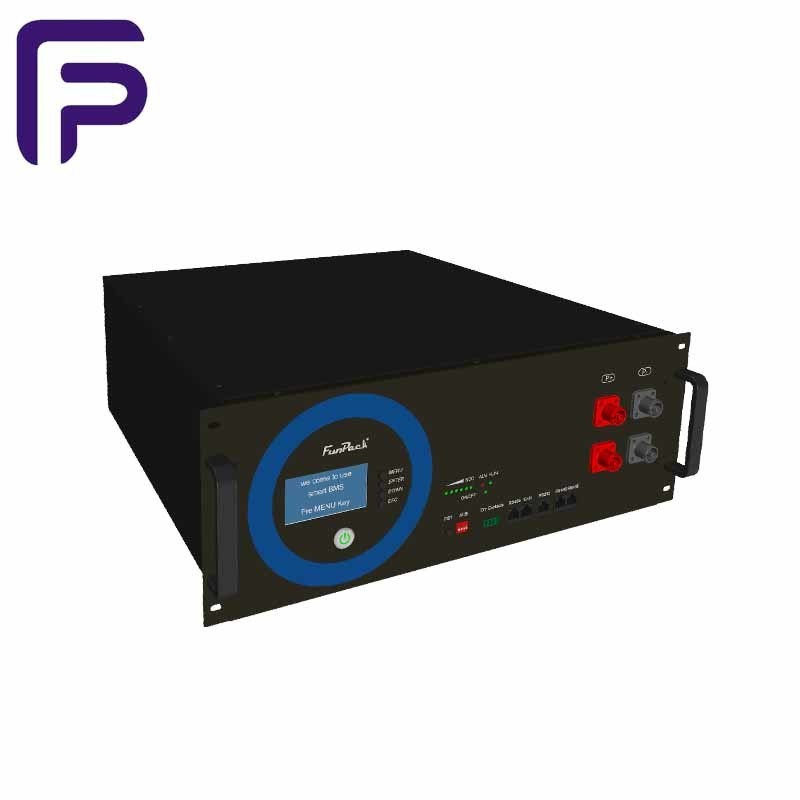

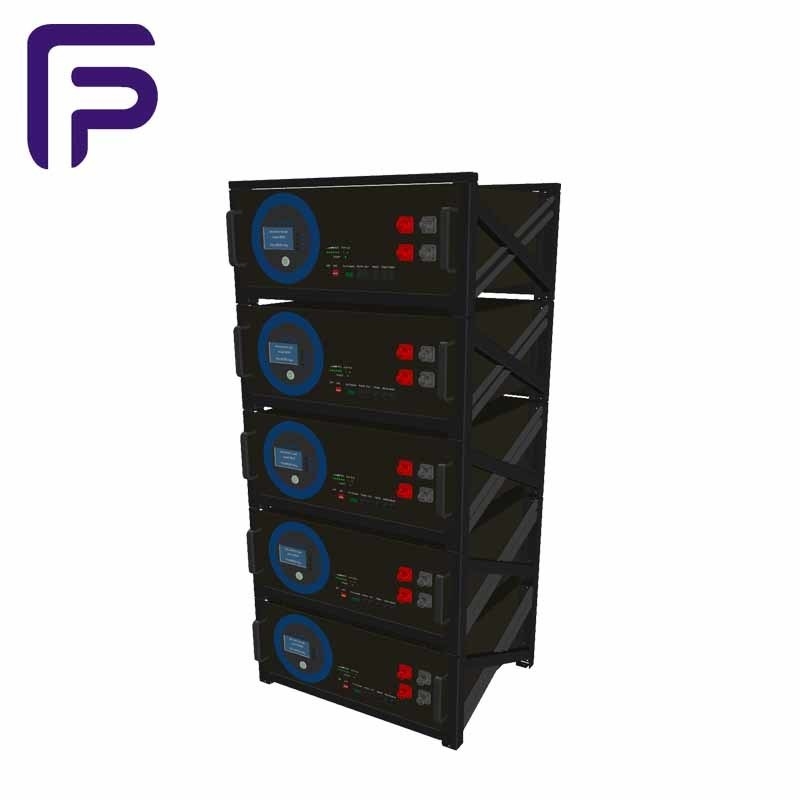

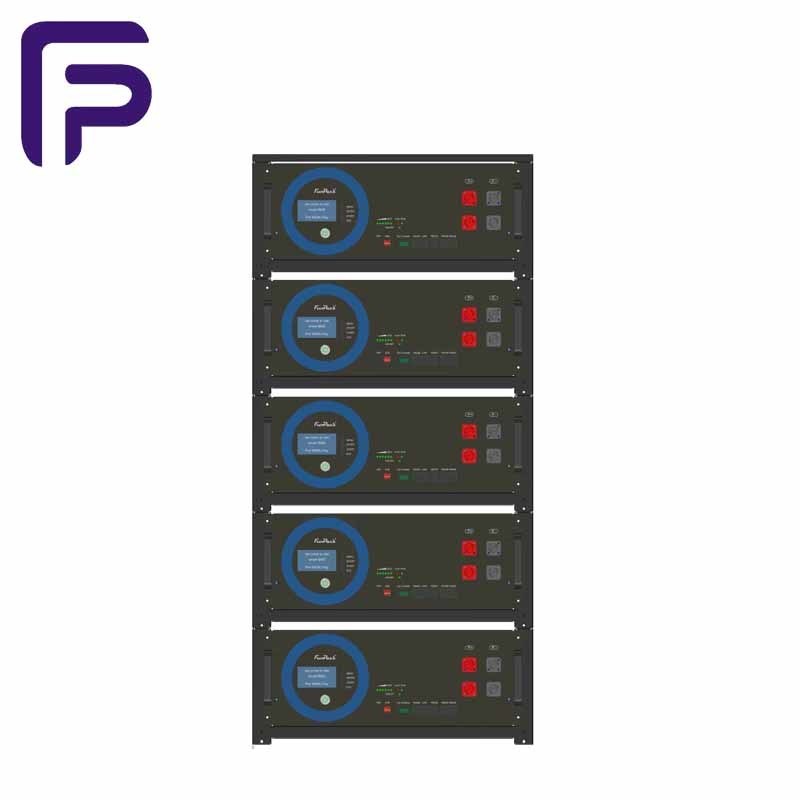

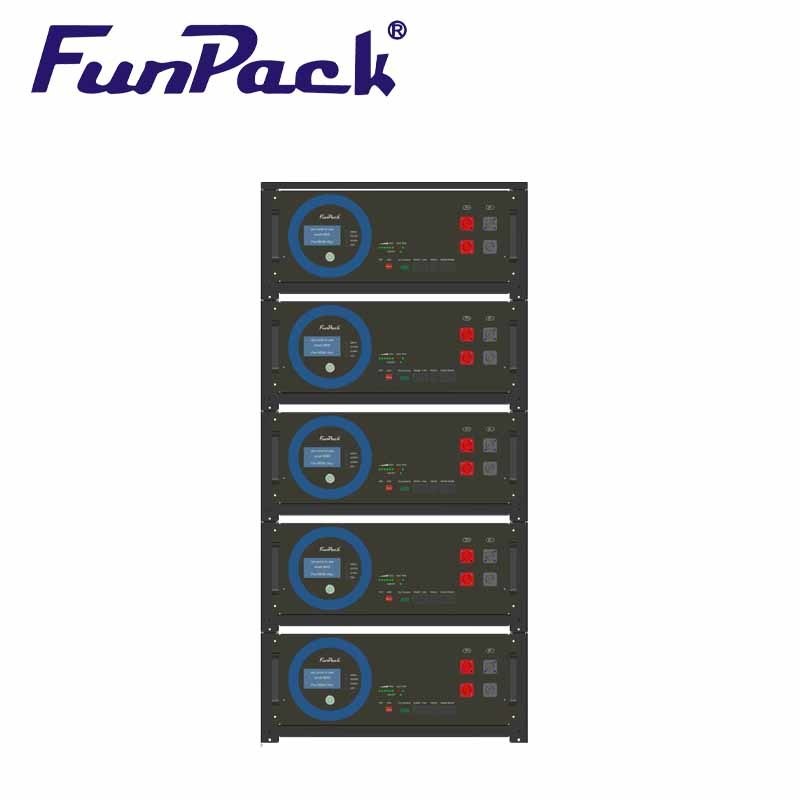

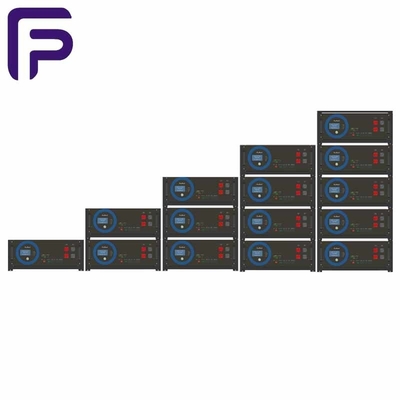

51.2V 135ah Rack Mounted LFP Energy Storage Battery 6000 Times Lifecycle IP65

Minimum Order Quantity : 1 Price : Negotiated The Price
Packaging Details : Customer Requirements Delivery Time : 30-45 work days
Payment Terms : L/C, D/A, D/P, T/T Supply Ability : 100PCS /Day
Place of Origin: CHINA, GuangDong Brand Name: FUNPACK
Certification: CE ROHS UN38.3 Model Number: FH-LP05-4U

Detail Information

Model: FP05-4U Battery Type: LiFePO4
Rated Voltage: 51.2V Working Voltage Range: 40~58.4V
Max String Parallel Number: 15 Lifecycle: 6000 Times
Nominal Operation Altitude: <3000m IP Rating: IP65
Warranty Period: 5 Communication: MSDS UN383
High Light:

51.2V 135ah LFP Energy Storage Battery

,

Rack Mounted LFP Energy Storage Battery

,

IP65 LFP Energy Storage

Product Description

LifePO4 batteries and its benefits:

NLP LifePO4 battery is superior compared to lead acid batteries in following features

1.0 Degree charging cut off, designed with full protection.

2.1/2 Lower weight, high energy density.

3.1 Hour Fast Charging

4.Longer life, up to 4000 cycles.

5. 5 Years quality warranty.

6. 100% Power discharge without harm battery



Product Basic Information Of Rack Mounted LEP Energy Storage Battery:

Technical Parameters
Model FP05-4U FP05-4U FP05-4U FP05-4U FP05-4U
Battery Type LiFePO4 LiFePO4 LiFePO4 LiFePO4 LiFePO4
Energy 6.912KWh 13.824KWh 20.736KWh 27.648KWh 34.56KWh
Capacity 100AH 200AH 300AH 400AH 500AH
Rated Voltage 51.2V 51.2V 51.2V 51.2V 51.2V
Working Voltage Range 40~58.4V 40~58.4V 40~58.4V 40~58.4V 40~58.4V
Max charge current 100A 100A 100A 100A 100A
Max discharge current 100A 100A 100A 100A 100A
Standard charging current 100A 100A 100A 100A 100A
Standard discharge current 100A 100A 100A 100A 100A
DOD 100% 100% 100% 100% 100%
Max string parallel number 15 15 15 15 15
Lifecycle 6000 times 6000 times 6000 times 6000 times 6000 times
Operating Temperature Charge:0~60ºCDischarge:-10~60ºC
Operation Humidity 5~95% 5~95% 5~95% 5~95% 5~95%
Nominal Operation Altitude <3000m <3000m <3000m <3000m <3000m
IP Rating IP65 IP65 IP65 IP65 IP65
Warranty period 5 5 5 5 5
Communication MSDS UN383 MSDS UN383 MSDS UN383 MSDS UN383 MSDS UN383
Certification / / / / /
Net weight ≈50KG ≈50KG ≈50KG ≈50KG ≈50KG
Dimension(L*W*H) 574*482.6*177mm 574*482.6*177mm 574*482.6*177mm 574*482.6*177mm 574*482.6*177mm
Rack size(L*W*H) 519*409*1087mm 574*482.6*177mm*2 574*482.6*177mm*3 574*482.6*177mm*4 574*482.6*177mm*5



Main Applications of Rack Mounted LFP Energy Storage Battery:

This product is mainly used for home energy storage system. Schools, restaurants, pizzerias, small factories, etc. can also be used.

51.2V 135ah Rack Mounted LFP Energy Storage Battery 6000 Times Lifecycle IP65 051.2V 135ah Rack Mounted LFP Energy Storage Battery 6000 Times Lifecycle IP65 1

FAQ
Q1: Are your a factory or trading company?
A: We are a professional battery manufacturer with our own factory and brand. We provide all kinds of OEM/ODM services for clients, can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2.Can I have a sample order?
A: Yes, we welcome sample orders to test and check quality.
Q3: Where can I get the price?
A: We will offer you the best quotation in 12 hours after we get the product specifications such as voltage capacity application etc.
