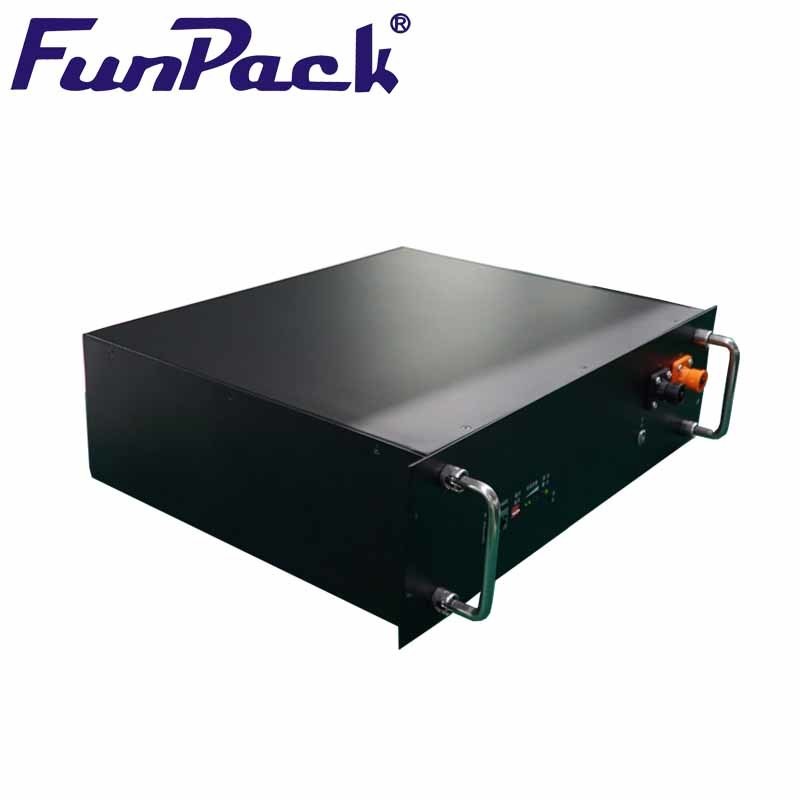

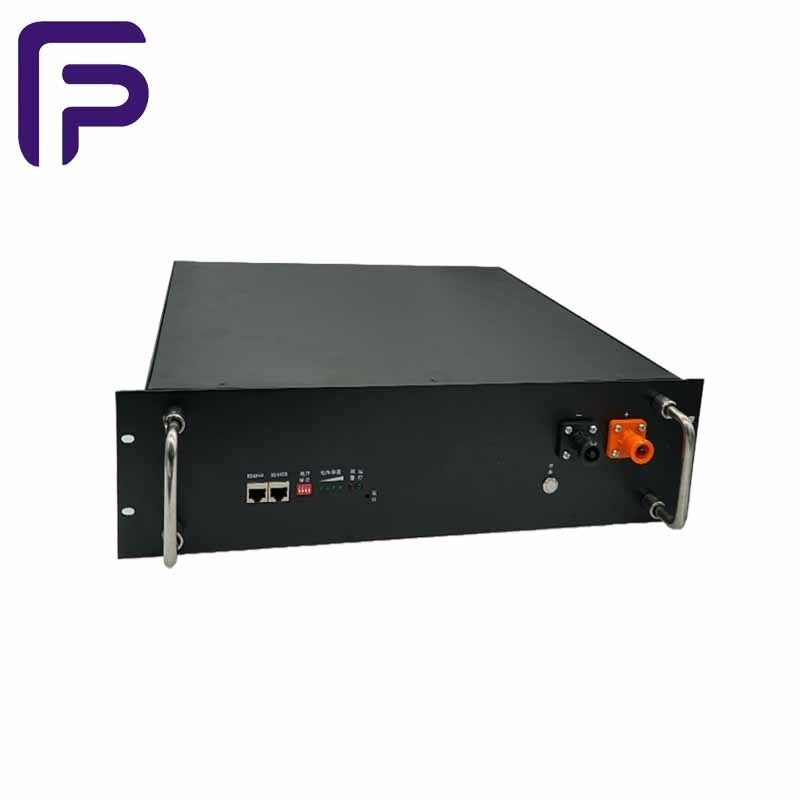

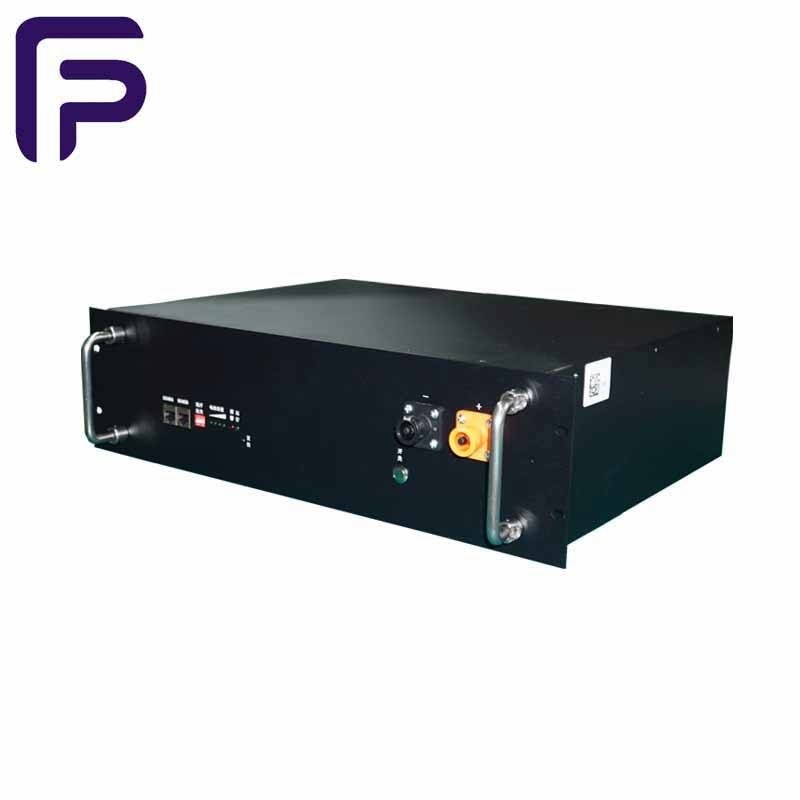

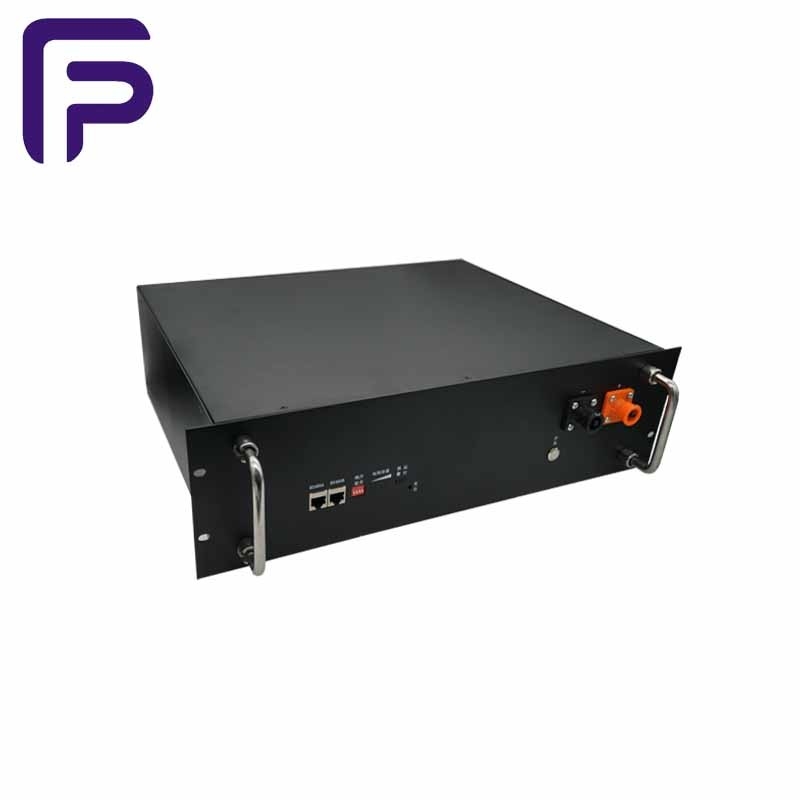

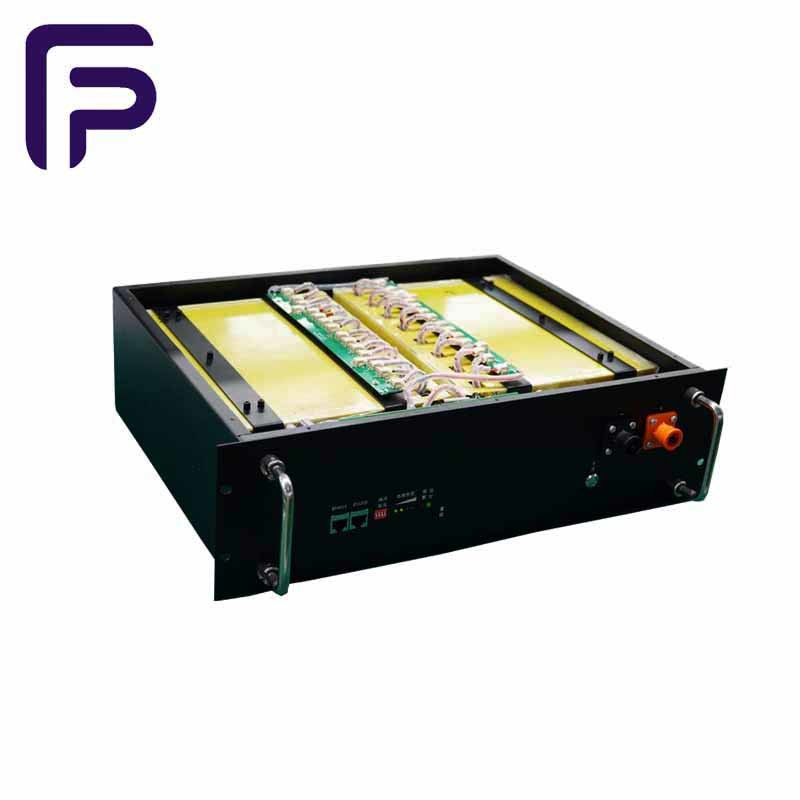

51.2V 50ah Rack Low Temperature LiFePO4 Battery Module 3U Energy Storage Device

Minimum Order Quantity : 1 Price : Negotiated The Price
Packaging Details : Customer Requirements Delivery Time : 30-45 work days
Payment Terms : L/C, D/A, D/P, T/T Supply Ability : 100PCS/Month
Place of Origin: CHINA, GuangDong Brand Name: FUNPACK
Certification: CE ROHS UN38.3 Model Number: Lifepo4 Battery Pack

Detail Information

Internal Impedance: ≤10.0mΩ(Ac. 1kHz) Operating Temperature: Charging 0 ~ 45ºC; Discharging -40 ~ 55ºC
Maximum Charging Voltage: 58.4V Discharge Termination Voltage: 40V(T≥-20ºC),32.0V(T<-20ºC)
Maximum Continuous Charging Current: 50A Maximum Continuous Discharge Current: 100A
Dimension: ≤480*350*130mm
High Light:

51.2V 50ah LiFePO4 Battery Module

,

Rack LFP Battery Module

,

3U LFP Battery Module

Product Description

Product Description

51.2V 50AH Rack Lifepo4 Battery Module For Energy Storage Equipment


Product Description Of 51.2V 50AH Rack Lifepo4 Battery Module:
Work indicator: Green, lit in normal state
Fault indicator: Red, lit in case of overtemperature, overvoltage, undervoltage and overload
Capacity display: 4 LED display, 25%, 50%, 75%, 100%
The Li-ion battery pack should be stored in a cool, dry and well-ventilated area, and should be far from the fire and the high temperature



Product Basic Information Of 51.2V 50AH Rack Lifepo4 Battery Module:

Item Specification
internal Impedance
≤10.0mΩ(Ac. 1kHz)
Operating temperature Charging 0 ~ 45ºC;
Discharging -40 ~ 55ºC
Maximum Charging Voltage
58.4V
Discharge Termination Voltage
40V(T≥-20ºC),32.0V(T<-20ºC)
Maximum Continuous Charging Current
50A
Maximum Continuous Discharge Current
100A
Dimension ≤480*350*130mm

Main Applications Of 51.2V 50AH Rack Lifepo4 Battery Module :

This product is mainly used for energy storage equipment, and customers also can customize it.

51.2V 50ah Rack Low Temperature LiFePO4 Battery Module 3U Energy Storage Device 451.2V 50ah Rack Low Temperature LiFePO4 Battery Module 3U Energy Storage Device 551.2V 50ah Rack Low Temperature LiFePO4 Battery Module 3U Energy Storage Device 651.2V 50ah Rack Low Temperature LiFePO4 Battery Module 3U Energy Storage Device 7

FAQ
Q1: Are your a factory or trading company?

A: We are a professional battery manufacturer with our own factory and brand. We provide all kinds of OEM/ODM services for clients, can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2.Can I have a sample order?
A: Yes, we welcome sample orders to test and check quality.
Q3: Where can I get the price?
A: We will offer you the best quotation in 12 hours after we get the product specifications such as voltage capacity application etc.
