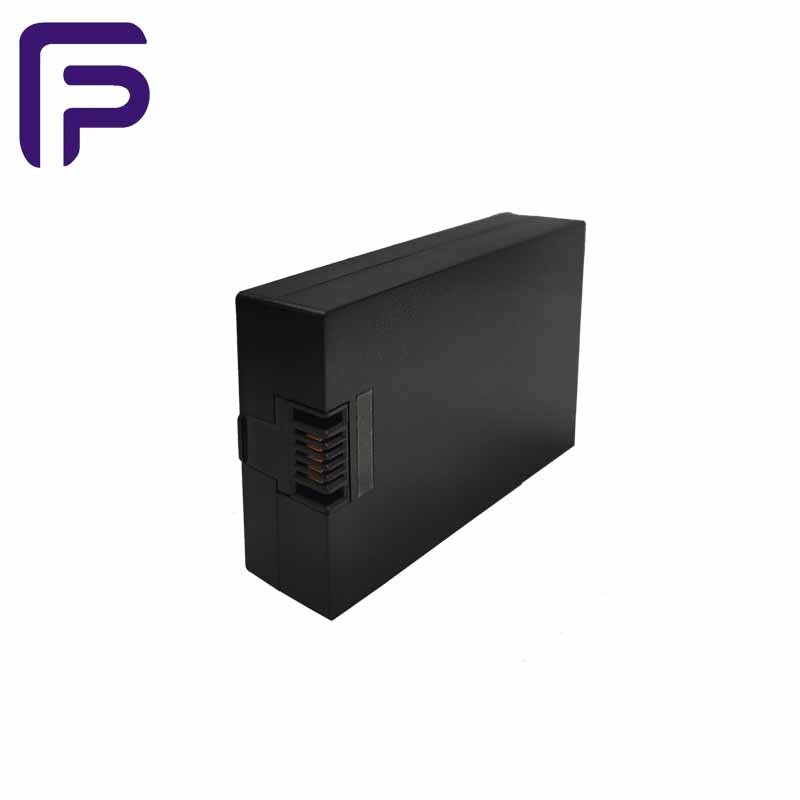

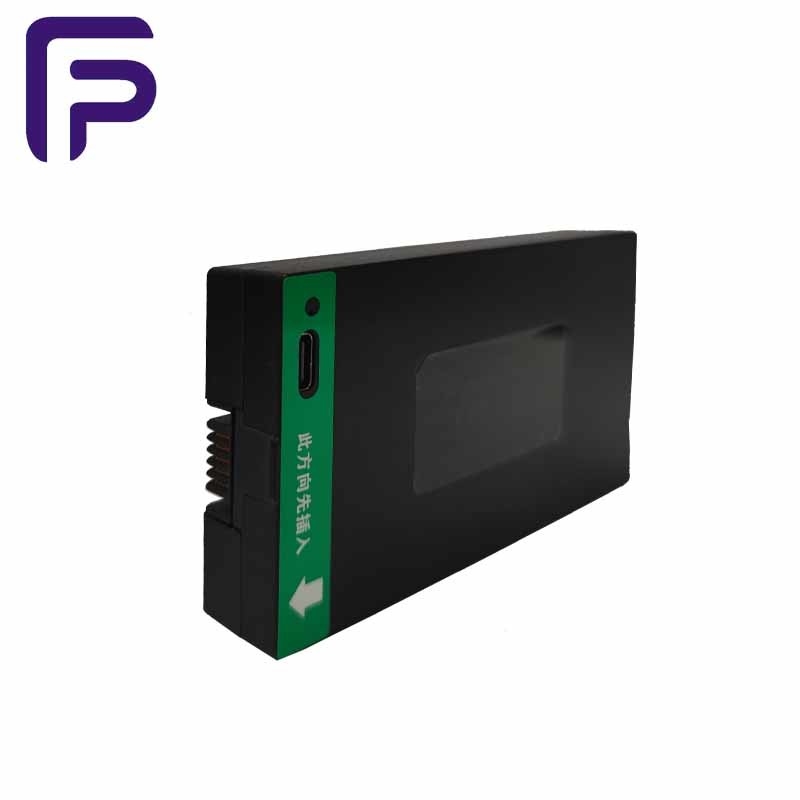

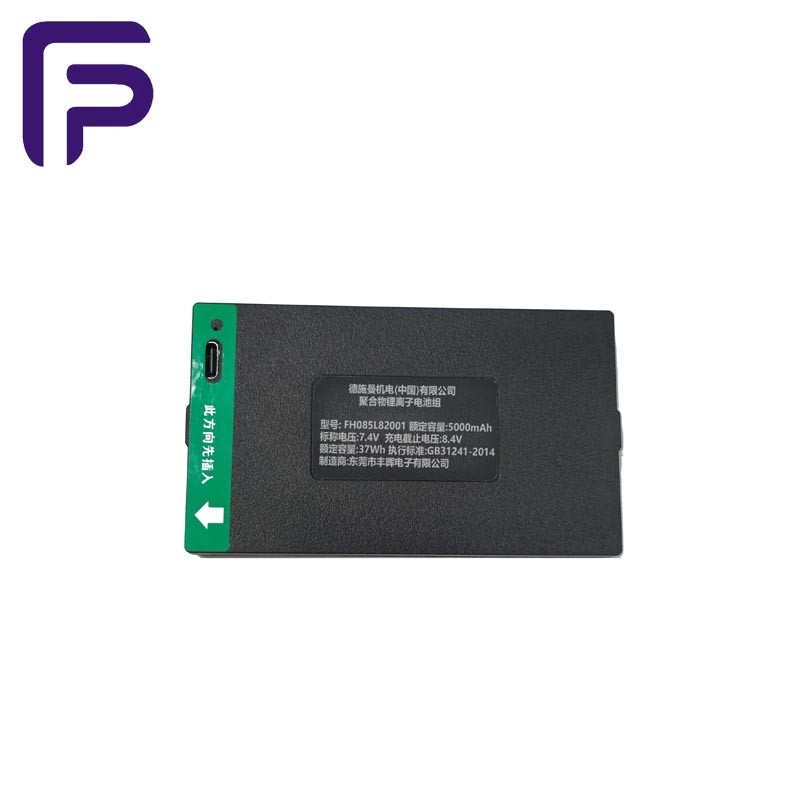

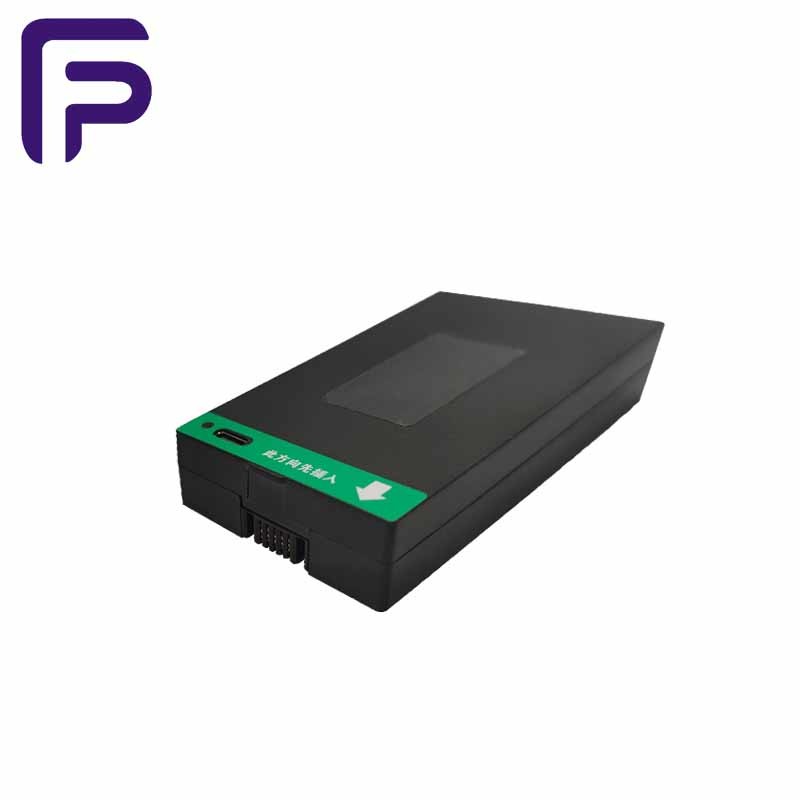

3.7V Rechargeable Lithium Ion Battery Pack 7800mAh 8030mAh With PCB
Contact Person : YI QUAN
Phone Number : 13631634942
Whatsapp : +8613662635407
Minimum Order Quantity : | 1000PCS | Price : | Negotiated The Price |
---|---|---|---|
Packaging Details : | Customer Requirements | Delivery Time : | 30-45 work days |
Payment Terms : | T/T, D/P, D/A, L/C | Supply Ability : | 10000PCS /Day |
Place of Origin: | Battery CELL made in CHINA | Brand Name: | FUNPACK |
---|---|---|---|
Certification: | CE ROHS | Model Number: | L82001 |
Detail Information |
|||
Nominal Voltage: | 7.4V | Minimum Capacity: | 5000mAh |
---|---|---|---|
Charge Cut-off Voltage: | 8.4V | Cycle Life: | ≥300 Cycles |
Internal Resistance: | ≤150mΩ | Dimensions: | Max 101.65*59.65*17.65mm |
High Light: | 5000mAh Consumer Electronics Battery,7.4V Consumer Electronics Battery,ROHS Rechargeable Lithium Battery Pack |
Product Description
Item | Specification |
Cell Nominal Voltage
|
3.7V |
Cell Model
|
755590
|
Cell Dimension
|
Max 90*55*7.5mm
|
Cell Minimum Capacity
|
5000mAh
|
Nominal Voltage | 7.4V |
Internal Impedance | ≤150mΩ |
Charge Cut-off Voltage
|
8.4V |
Nominal Capacity
|
5000mAh
|
Initial Voltage
|
7.50-8.0V
|
Battery Weight
|
About 187g |
Cycle Life
|
300 Cycles
|
Standard Charge Current
|
0.2C
|
Standard Discharge Current | 0.2C |
Operating Temperature | Charging:0~45℃ |
Discharging:-10~60℃ | |
Storage Temperature | Less than 1 month:-20℃~45℃ |
Less than 3 months:-20℃~35℃ | |
Relative Humidity
|
45%-75%RH |
Mainly used for intelligent door lock, security equipment, closed-circuit CCTV monitoring system, access control backup, smoke
alarm, monitoring equipment and so on.
FAQ:
Q1: Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we’ll regard your inquiry priority
Q2: What about the lead time?
A: Sample needs 7-12 days, mass production time needs negotiation.
Q3: How do you ship the goods and how long does it take to arrive?
A: We usually ship by JEC. It usually takes 13-15 days to arrive. Airline and sea shipping also optional.
Q4: How to proceed an order?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.
Q5: Is it OK to print my logo on product?
A: OK, Need customer provide their packaging or we make neutral packaging.
