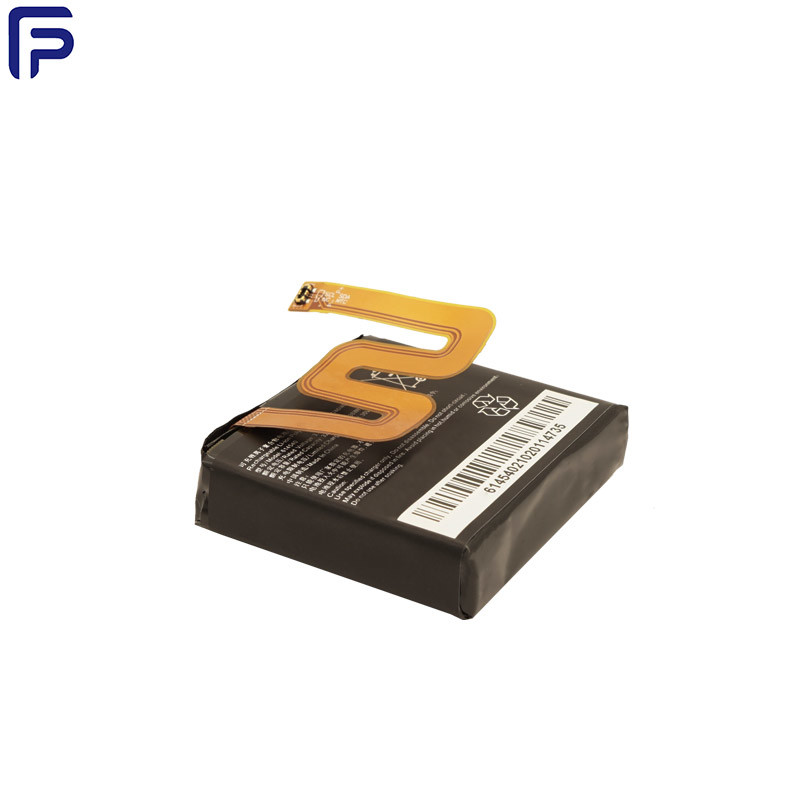

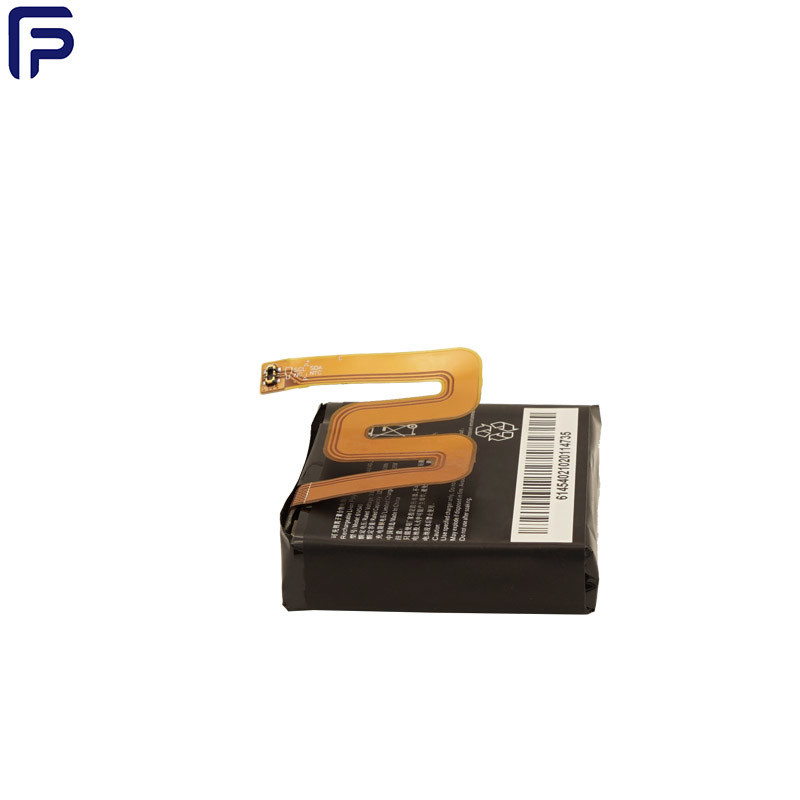

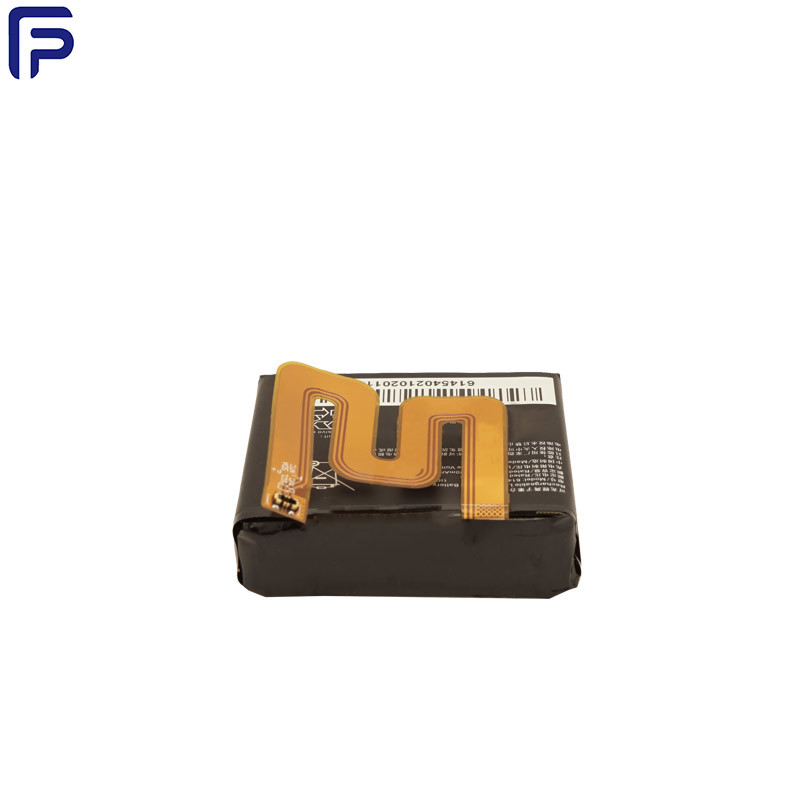

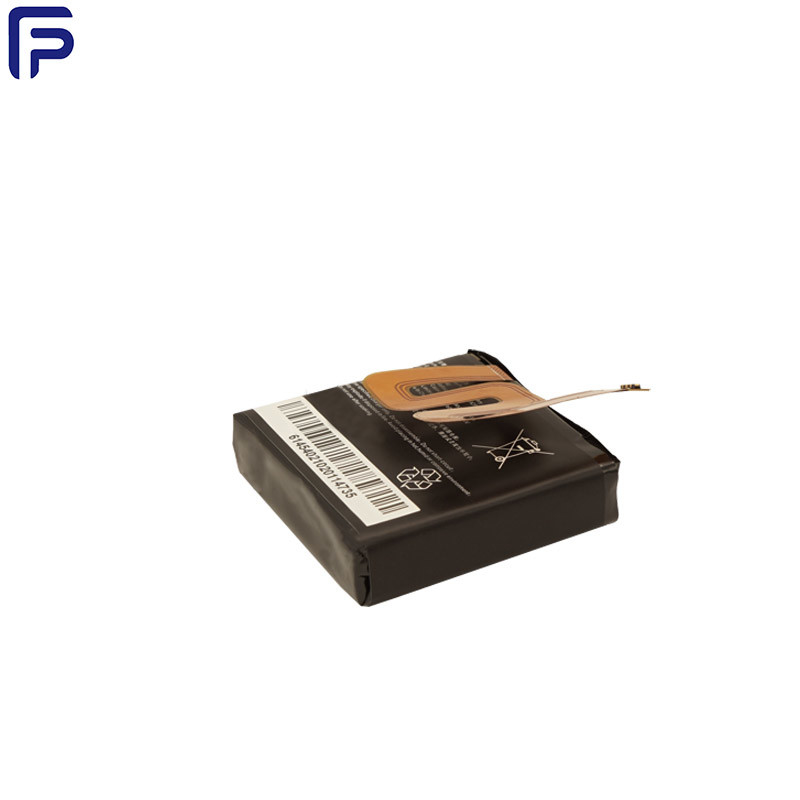

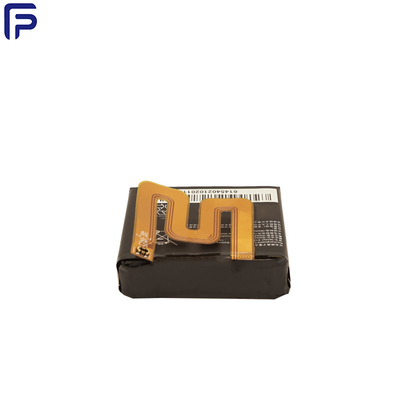

3.7V Rechargeable Lithium Ion Battery Pack 7800mAh 8030mAh With PCB
Contact Person : YI QUAN
Phone Number : 13631634942
Whatsapp : +8613662635407
| Minimum Order Quantity : | 10000PCS | Price : | Negotiated The Price |
|---|---|---|---|
| Packaging Details : | Customer Requirements | Delivery Time : | 30-45 work days |
| Payment Terms : | T/T, D/P, D/A, L/C | Supply Ability : | 10000PCS/Month |
| Place of Origin: | CHINA,GuangDong | Brand Name: | FUNPACK |
|---|---|---|---|
| Certification: | ROHS REACH | Model Number: | 614540 |
|
Detail Information |
|||
| NAME: | Lithium Ion Battery Pack | Typical Capacity: | 3220 MAh |
|---|---|---|---|
| Nominal Voltage: | 3.8V | Initial Resistancege: | ≤180mΩ |
| Size: | 46.1*43*12.5mm | Cycle Life: | 500 Cycles |
| High Light: | 1S2P Battery Pack 3320mAh,1S2P Battery Pack 3.8 Volt,1S2P 3.8 Volt Lithium Ion Battery |
||
Product Description
Product Description:
Customer customized service accepted.
Through advanced battery program management and deep participation of cell factory, you can customize battery
and circuit board parameters anytime, anywhere. It is convenient to apply the battery to various fields.
Basic specification:
| Item | Specification | |||
| Pack Configuration | 1 Series 2 parallel | |||
| Minimal Capacity(Cmin) | 3220mAh(1S2P) | |||
| Typical Capacity | 3300mAh(1S2P) | |||
| Typical Voltage | 3.8 V | |||
| Charge Cutoff Voltage | 4.35 V | |||
| Discharge Cut-off Voltage | 3.0V | |||
| Allowable Humidity Range | 65±20%RH | |||
| Pack Voltage (V) (as of shipment, Alternative) | 3.80～3.95V | |||
| size | 46.1*43*12.5mm | |||
| RT Cycle life | 500 cycles | |||
| Initial resistance | ≤ 180mΩ | |||
| Charge Current (CC=constant current charge; CV=constant voltage charge) | Ambient Temperature | CC current | Upper-limit voltage | CV cut-off current |
| 0℃~10℃ | ≤ 0.25Cmin | 4.35V | ≤ 0.02Cmin | |
| 10℃~20℃ | ≤ 0.5Cmin | 4.35V | ≤ 0.02Cmin | |
| 20℃~45℃ | ≤ 1.0Cmin | 4.35V | ≤ 0.02Cmin | |
| 45℃~60℃ | ≤ 0.2Cmin | 4.35V | ≤ 0.02Cmin | |
| Discharge Current | Operational Discharging Temperature:-20℃~60℃ | Standard Continuous Current: 0.2Cmin | ||
| Max. Continuous Current: 1Cmin@20℃~45℃ | ||||
| Storage Temperature | -20 to 45℃ | 1month recovery≥85% | ||
| -20 to 35℃ | 6months recovery≥85% | |||
| -20 to 25℃ | 12months recovery≥85% | |||
Main Functions:
For Safety Equipment,such as: cellular phone, interphone, cordless phone,digital camera, portable DVD, portable television,
GPS, PDA, PMP, PSP, portable medical device, instrument and apparatus,miner lamp, searchlight, lighting devices,
emergency light.e cigarette, mc models, power tools.
FAQ:
Q1: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Customized is available.
Q2: What about the lead time?
A: Sample needs 7-12 days, mass production time needs negotiation.
Q3: How do you ship the goods and how long does it take to arrive?
A: We usually ship by JES. It usually takes 13-15 days to arrive. Airline and sea shipping also optional.
Q4: How to proceed an order?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.
Q5: Is it OK to print my logo on product?
A: OK, Need customer provide their packaging or we make neutral packaging.
Q6: Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us
in your email so that we’ll regard your inquiry priority
