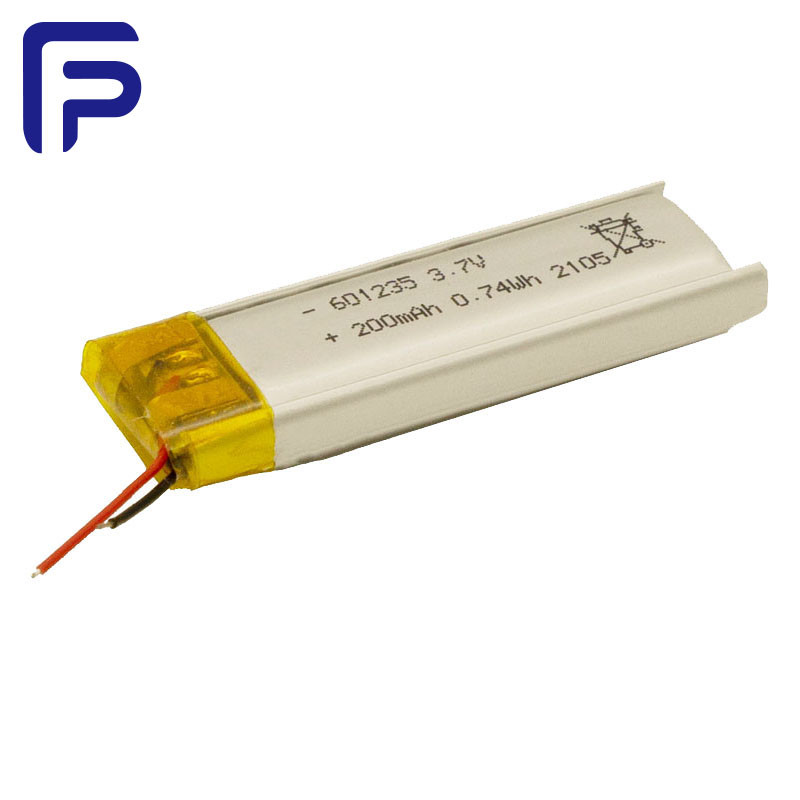

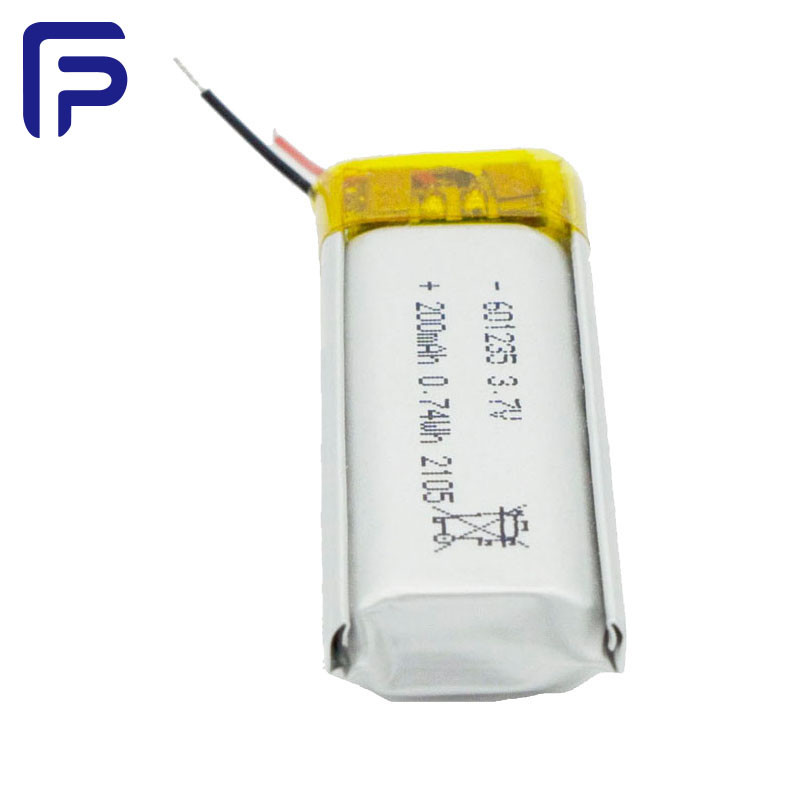

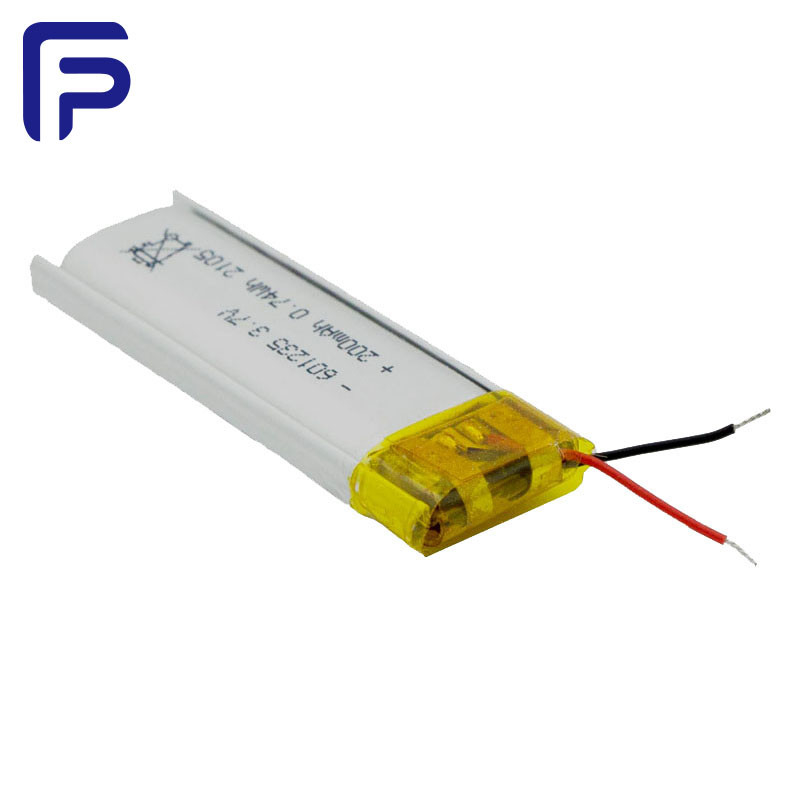

Rechargeable 601235 Lithium Ion Battery Pack 3.7V 200mAh For Wearable Device

Minimum Order Quantity : 10000PCS Price : Negotiate the price
Packaging Details : As per customer's request Delivery Time : 35-45days
Payment Terms : L/C, T/T, D/A, D/P Supply Ability : 5000pcs/day
Place of Origin: CHINA Brand Name: FUNPACK
Certification: CE UL ROHS REACH Model Number: 601235

Detail Information

Model Number:: 601235 3.7V 200mAh Nominal:: 200mAh
Nominal Voltage:: 3.7V Weight: 8.4g
Life Cycles: After 500 Cycles Initial Resistance: 345mΩ
High Light:

Lithium Ion Battery Pack 200mAh

,

Lithium Ion Battery Pack 601235

,

3.7V Lithium Ion Rechargeable Battery Pack

Product Description

Rechargeable Li-ion Polymer Battery 601235 3.7V 200mAh With PCB For Wearable Device



Product Description:

Standard Polymer battery pack 1s1p

with 3.8V / 510mAh /1.838 Wh

Worldwide approvals and certification of safety standards

No development costs, fast time-to-market

lithium-ion cells with the market’s highest energy density

Product materials can be customized according to customer requirements

Numerous and redundant safety features, e.g.:

CUV (Cell Under Voltage): protection against deep discharge

COV (Cell Over Voltage): protection against over charge

OTD (Over Temperature in Discharge): Protection against overheating during discharging

Life expectancy: Up to 80% of initial capacity after 300 cycles



Product Parameters:

Item Specification
Weight 8.40g
Dimensions 42*16*7.5mm
Battery minimum Capacity 490mAh
Battery Typical Capacity 510mAh
Parallel-serial mode 1S1P
Typical Voltage 3.7V
Charge Cut-off Voltage 4.35±0.05V
Discharge Cut-off Voltage 3.0V
Max Charge Current  15°C~45°C
Max Discharge Current 1.0C
Initial resistance 345mΩ(reference)
Allowable Humidity Range 60%±25% R.H.
Shipment voltage(V) 3.90V ~ 4.00V
Standard Discharge Method -20~ 60
Operation Temperature Charging :0°C to 60°C
Discharging :-20°C to 60°C
RT Cycle life(25°C±3°C) 500 cycles



Main Applications :

For medical device, bluetooth, headphone, Smart watch,pos machine, medical device, mobile,

powerbank, GPS,ect.

Rechargeable 601235  Lithium Ion Battery Pack 3.7V 200mAh For Wearable Device 0

FAQ:

Q1: Are you factory?
A: Yes, we are professional manufacturer for polymer batteries since 2017
Q2: When you ship my order?
A: Normally 35-45days after payment confirmed, but it can be negotiated based on order qty and production schedule.
Q3: Can I get the pre-production sample?
A: Yes, we will send you sample for approval first, after you confirm, then we will start mass production order.
Q4: Can battery size customized available?
A: Yes, Please send up the capacity and max battery size, so that we can search our model for you.
Q5: How about the quality grantee period?
A: One Year.
Q6: How can you guarantee the production quality?
A: We have more than 5 years experience of polymer battery production. Our production quality follow strict control program.
We have 3 times inspection for finished product before package. All of our batteries are 100% tested and installed before shipment.
