43.2V 42Ah Ternary Lithium Ion Battery Pack 12S12P For Drones UAV

Minimum Order Quantity : 500PCS Price : Negotiate The Price
Packaging Details : Customer Requirements Delivery Time : 30-45 work days
Payment Terms : D/P, T/T, D/A, L/C Supply Ability : 1000PCS /Day
Place of Origin: Battery CELL made in CHINA Brand Name: FUNPACK
Certification: CE ROHS UN38.3 Model Number: LFS4243-42Ah/43.2V

Detail Information

Cell Type: Ternary Lithium Ion Cell Pack Configuration: 12S12P
Typical Capacity: 42Ah Typical Voltage: 43.2V
Maximum Charging Current: 24A Life Cycle: ≥1000 Cycles
Size: 208×158×120 Mm Pack Weight (Approx): 7.5kg
High Light:

Ternary Lithium ion Battery Pack

,

Drones Lithium ion Battery Pack

,

12S12P lithium polymer battery pack

Product Description

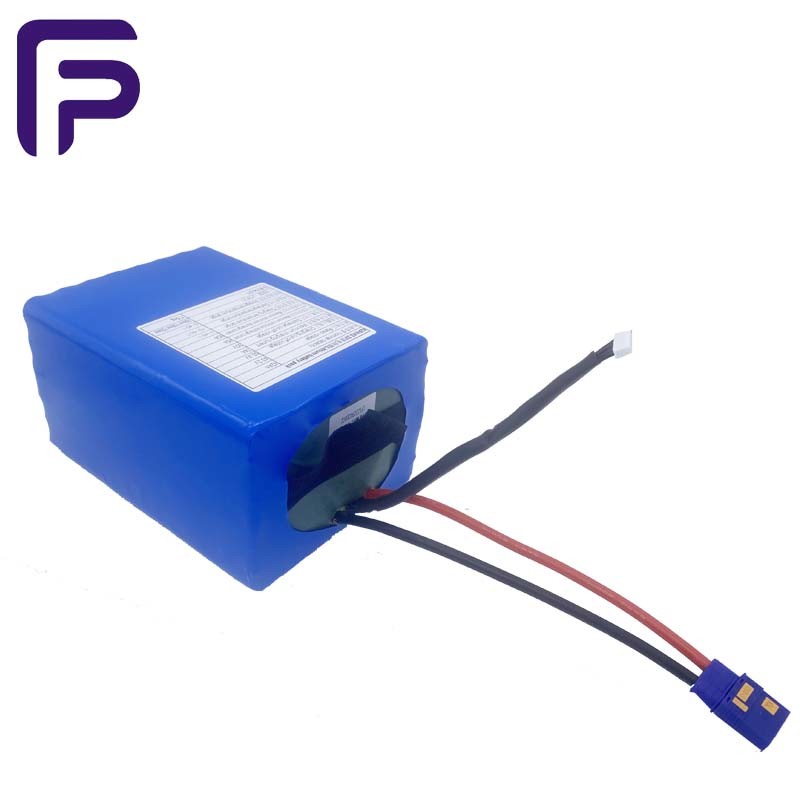

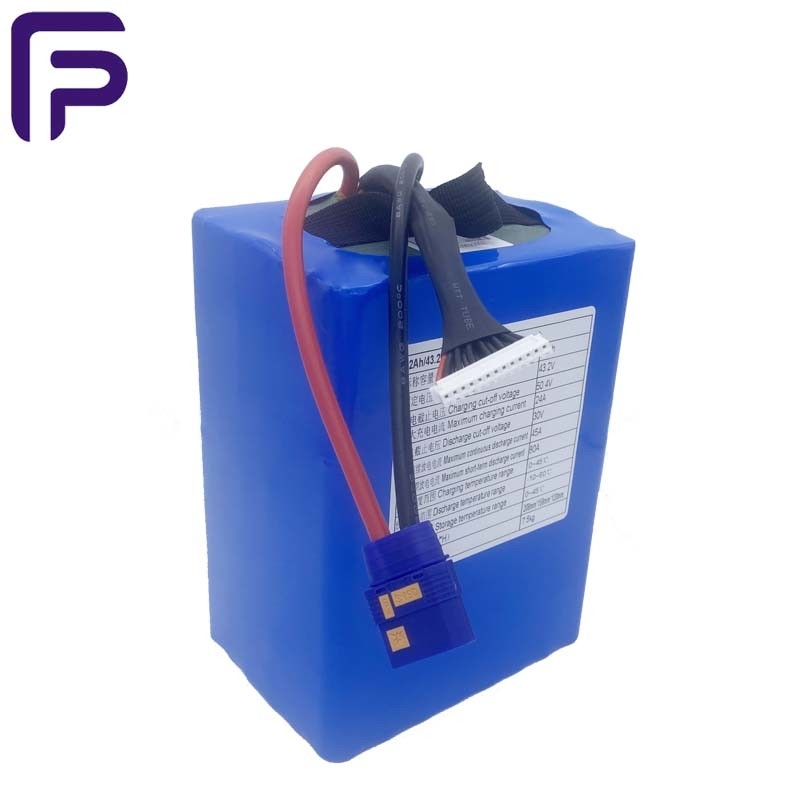

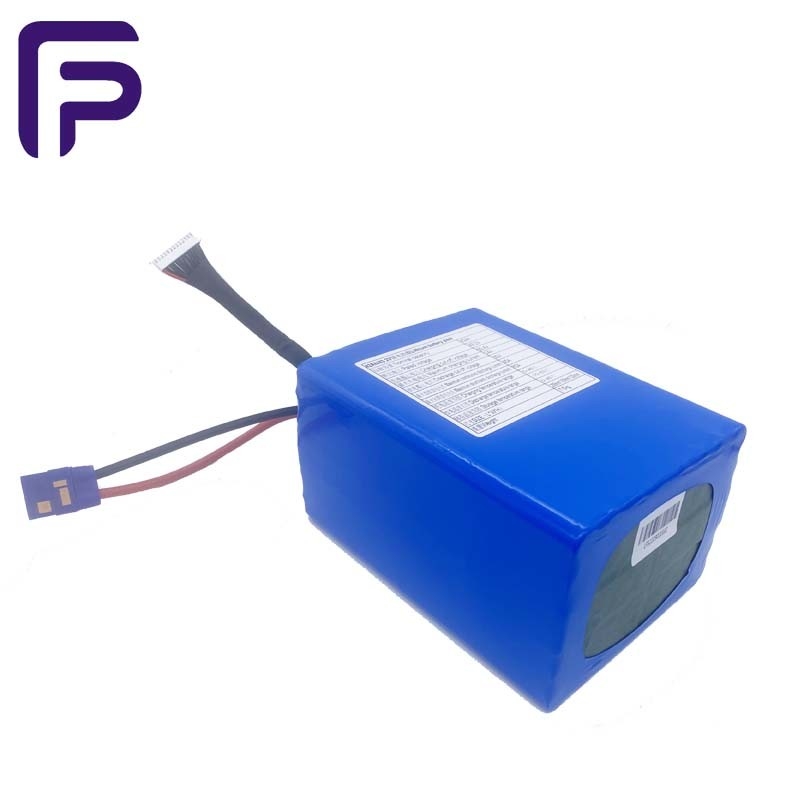

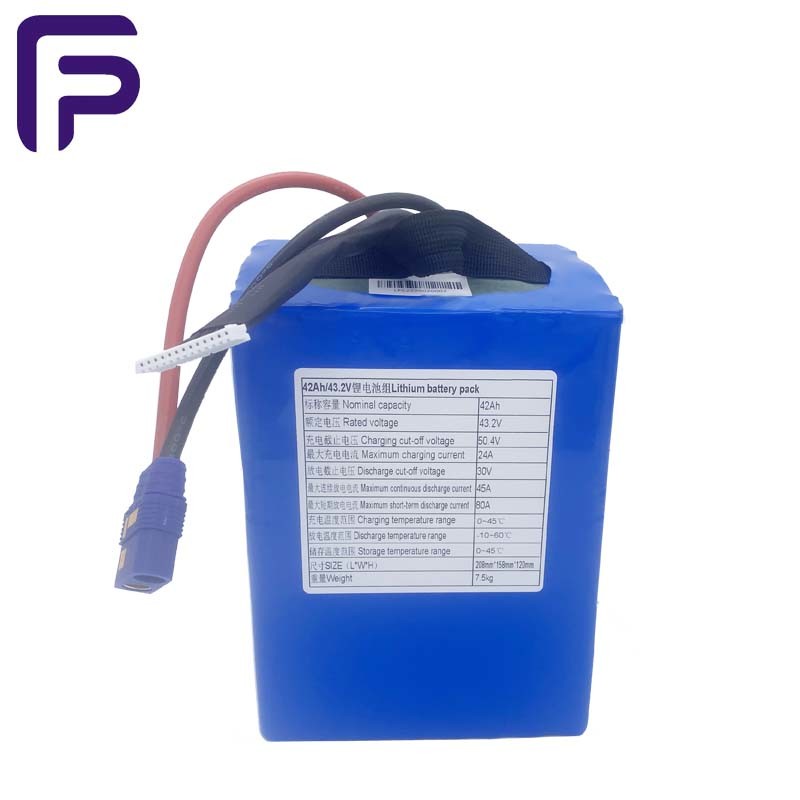

42Ah 43.2V Ternary Lithium ion Battery Pack 12S12P For Drones



Product Description:
This product is a custom-made lithium polymer battery pack for UAV. The battery pack is composed of 1443.5AH/3.6V 18650 cells and 12S12P series-parallel connection. The battery pack adopts the perfect high current structure design, the Advanced Battery Assembly technology, has the high specific energy and the high discharge current, the consistency is good, the safety is reliable, the use temperature range is wide and so on the characteristic, is the aviation, communication and other electronic equipment ideal power supply.





Product Parameters:

Item Specification
Bttery Model LFS4243-42Ah/43.2V
Battery charging temperature range 0~45℃
Battery discharge temperature range -10~60℃
Discharge cut off voltage 30V
Internal Resistance ≤35mΩ
Cell nominal capacity 3500mAh
Cell nominal voltage 3.6V
Charging mode CC-CV
Outgoing mode Single-ended 2-core power cable and 13-core signal cable



Battery storage

One Month:0℃~+60℃,RH:≤70%

Three Months:0℃~+45℃,RH:≤70%

One Year:0℃~+23℃,RH:≤70%

Cell Size 65mm(L)×18mm(Diameter)
Cell Weight 49±1.0g


Main Application:
This battery is  mainly used in  Drones, communication and other electronic equipment.

43.2V 42Ah Ternary Lithium Ion Battery Pack 12S12P For Drones UAV 043.2V 42Ah Ternary Lithium Ion Battery Pack 12S12P For Drones UAV 1

FAQ:

Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Customized is available.
Q2.
Can I get the pre-production sample?

A: Yes, we will send you sample for approval first, after you confirm, then we will start mass production order.

Q3. How do you ship the goods and how long does it take to arrive?
A: We usually ship by JEC. It usually takes 13-15 days to arrive. Airline and sea shipping also optional.
Q4. How to proceed an order?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our
suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.
Q5. Is it OK to print my logo on product?
A: OK, Need customer provide their packaging or we make neutral packaging.
