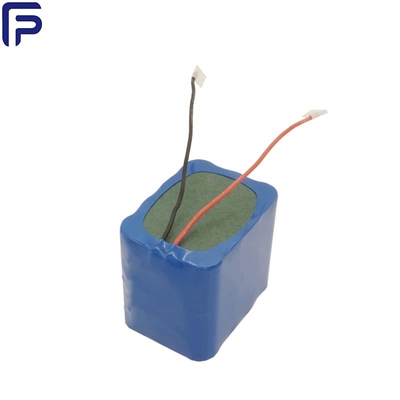

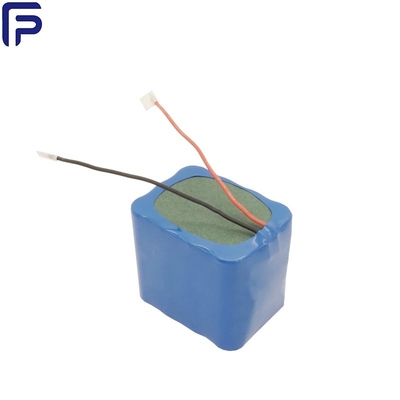

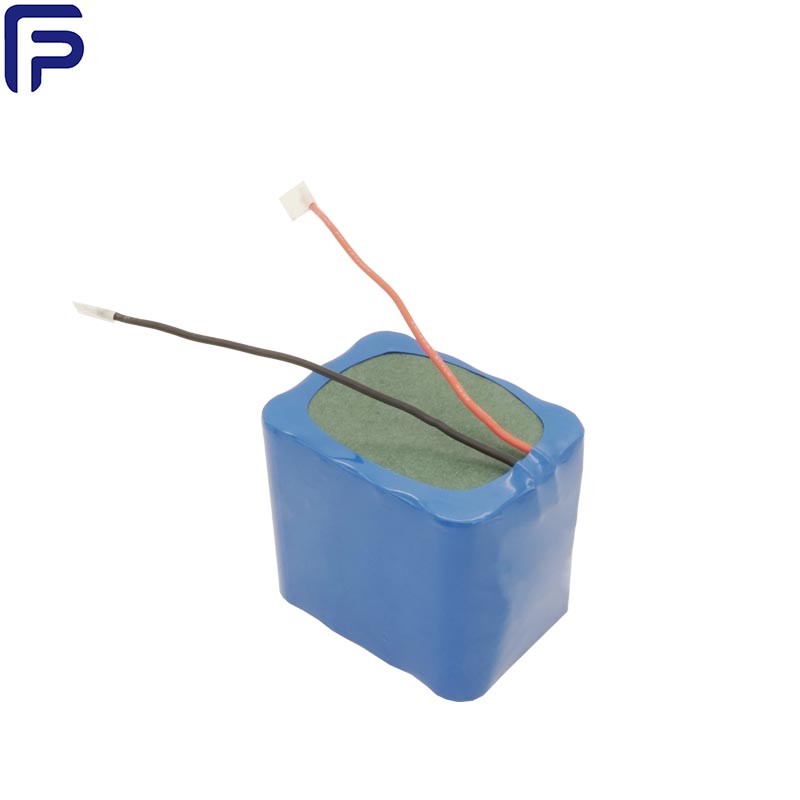

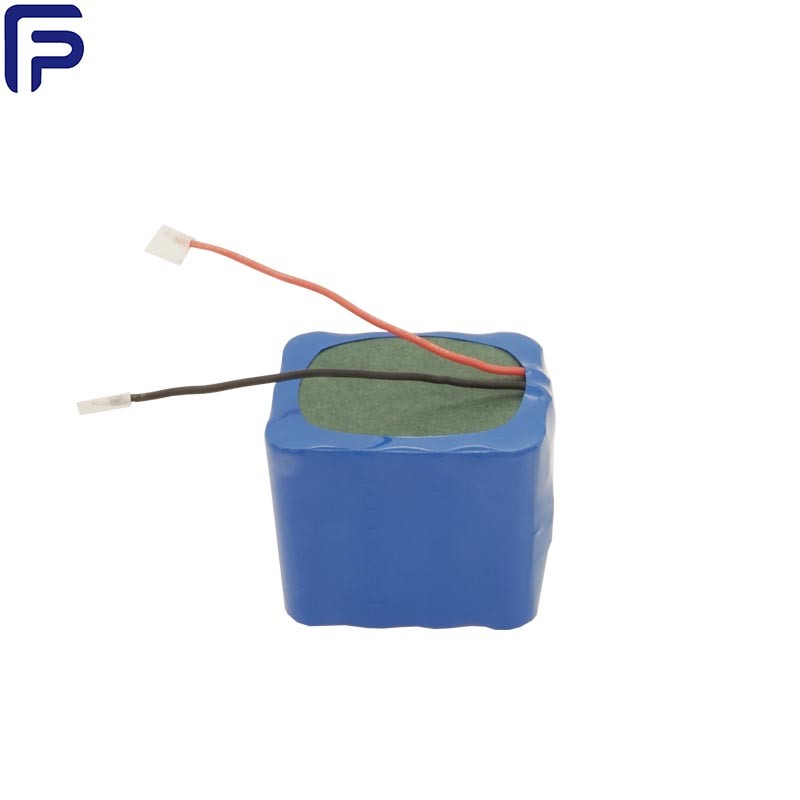

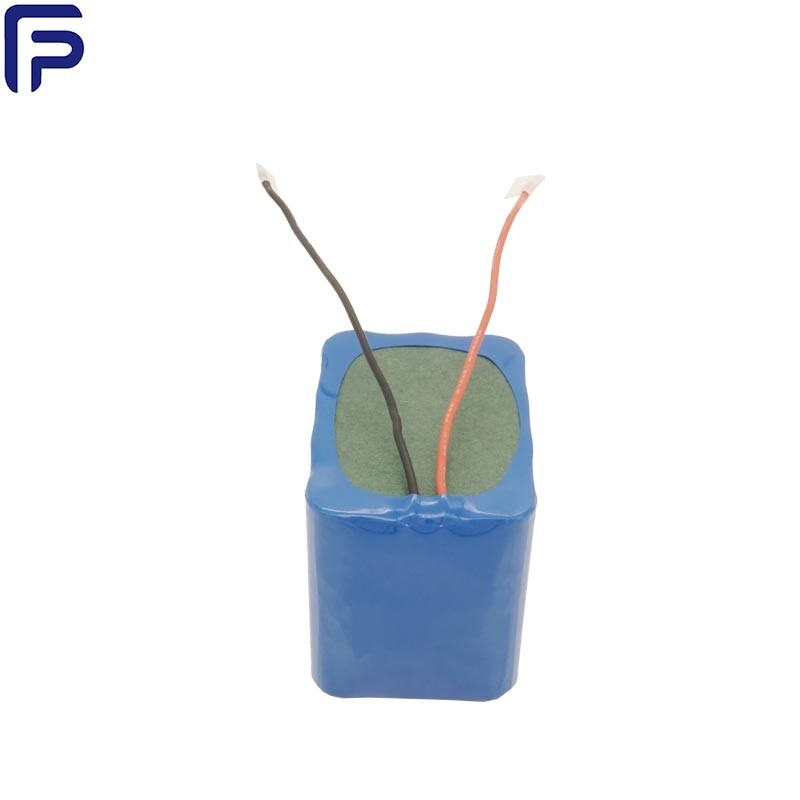

3.7V Rechargeable Lithium Ion Battery Pack 7800mAh 8030mAh With PCB
Contact Person : YI QUAN
Phone Number : 13631634942
Whatsapp : +8613662635407
| Minimum Order Quantity : | 5000PCS | Price : | Negotiate The Price |
|---|---|---|---|
| Packaging Details : | Customer requirements | Delivery Time : | 30-45 work days |
| Payment Terms : | D/P, T/T, D/A, L/C | Supply Ability : | 5000PCS /Day |
| Place of Origin: | Battery CELL made in CHINA | Brand Name: | FUNPACK |
|---|---|---|---|
| Certification: | CE ROHS | Model Number: | FP-6S1P |
|
Detail Information |
|||
| Pack Configuration: | 1S3P | Minimal Capacity: | 8700mAh /32.19Wh |
|---|---|---|---|
| Typical Capacity: | 8960mAh/33.97Wh | Typical Voltage: | (3.7*1S3P) V |
| Initial Resistance: | ≤ 100mΩ | Allowable Allowable Humidity Range: | 10%～90% |
| Standard Charging: | 0.2Cmin | Discharge Cut-off Voltage: | (3.0*1S3P)V |
| Size: | 30.5*32.94*46*58mm | Pack Weight (Approx): | ~260g |
| High Light: | 8700mAh Lithium ion Battery Pack,Shared Bikes Lithium ion Battery Pack,32.19Wh Rechargeable Lithium ion Battery Pack |
||
Product Description
Product Description:
No development costs, fast time-to-market
Worldwide approvals and certification of safety standards
Smart batteries with numerous features according to the SMBus specification
Life expectancy: Up to 80% of initial capacity after300 cycles
Rechargeable batteries have built-in high quality PCB board,
High Capacity with Small Size, thermal protectors and circuit breakers, effectively avoiding the over-charge, and short circuit.
Product Parameters:
| Item | Specification |
| Bttery Model | L9N1_8700mAh 3.7V |
| Pack Configuration | 1 Series 3 parallel (1S3P) |
| Standard Environmental Test Conditions | |
| 1):Unless otherwise specified, all tests stated in this Product Specification are conducted at below conditions: | |
| Temperature: 25 ±3°C (“Temperature Condition”) | |
| Humidity: 65 ± 20% RH (“Humidity Condition”) | |
| 2):Numeric criteria annotated by “*” means such criteria are only applicable to fresh unused Product within 30 days from manufacture . Products either have been used or stored for a period longer than 30 days by Customer and/or its customer may exhibit an inferior numeric parameter than such criteria. Customer agrees that such occurrence does not constitute nonconformance of specification | |
| *Minimal Capacity | 8700mAh /32.19Wh |
| Typical Capacity | 8960mAh/33.97Wh |
| *Typical Voltage | (3.7*1S3P) V |
| Charge Cutoff Voltage | (4.2*1S3P) V |
| Discharge Cut-off Voltage | (3.0*1S3P)V |
| Standard Charging | 0.2Cmin: Standard charge means charging at 0.2Cminto 4.2V in 23±2℃ |
| Standard Charging Time | ≤6h: Charging time with 0.2Cmin max to 4.2V, then CV to 0.02Cmin |
| Charge | 0°C to20°C: 1.5A Max to 4.2V, then CV to 0.02Cmin |
| 20°C to45°C: 3A Max to 4.2V, then CV to 0.02Cmin | |
| 45°C to60°C: 3A Max to 4.1V, then CV to 0.02Cmin | |
| >60°C: Charging prohibited | |
| Standard Discharge | 0.2Cmin: Standard discharge means discharging at 0.2Cmin down to 3.0V in 23±2℃ |
| Discharge | ＜-20°C: Discharging prohibited |
| -20℃ to 60℃: 0.2Cmin Max discharge to 3.0V 2.5Ah max pulse discharge | |
| ＞ 60℃: Discharging prohibited | |
| Standard Discharging Time | ≤6h: Charging time with0.2Cmin Max discharge to 3.0V time； |
| Storage Temperature | -10 ℃to 45℃: 1month recoverry≥85%,thickness swell ing ≤3% |
| -10 ℃to 35℃: 6months recoverry≥85%,thickness swell ing ≤2% | |
| -10℃ to 25℃: 12months recoverry≥85%,thickness swell ing ≤1% | |
| Cell are stored in shipment voltage range at 35℃ for 3months or RT for 12months or 45℃ for 1month, measures the recovered capacity with standard charge/discharge method @RT environment≥85% initial capacity, | |
| *Initial Resistance | ≤ 100mΩ |
| Allowable Humidity Range | 10%～90% |
| *Pack Voltage (V) (as of shipment, Alternative) | 3.60～3.78V |
| 4.00~4.15V | |
| *RT Cycle life(25°C±3°C) | 0.2Cmin Max Charge to 4.2V, then 0.2Cmin discharge to 3.0V, repeat to 300 cycles, record the remained capacity |
| Pack Weight (Approx) | ~260g |
| Size | 30.5*32.94*46*58mm |
Main Application:
Lithium-polymer batteries mainly used in Sharing bike, Vacuum cleaners, Energy storage system for Industrial and household.
