11.1V 3S 603048 Lithium Ion Battery Pack 1000mAh 300 Cycle For Medical Machine

Minimum Order Quantity : 500 Price : Negotiated The Price
Packaging Details : Customer requirements Delivery Time : 30-45 work days
Payment Terms : T/T, D/P, D/A, L/C Supply Ability : 800PCS /Day
Place of Origin: CHINA,GuangDong Brand Name: FUNPACK
Certification: CE ROHS Model Number: 603048-3S

Detail Information

Nominal Capacity: 1Ah Rated Voltage: 11.1V
Discharge Temperature Range: -10~60℃ Cycle Life: ≥300 Cycle
High Light:

603048 Lithium ion Battery Pack

,

1000mAh Lithium ion Battery Pack

,

Medical Machine battery pack lithium ion

Product Description



Three series lithium battery 603048-3S 11.1V 1000mAh, medical machinery can recycle the battery CE ROHS



Product Highlight​:

Rechargeable batteries have built-in high quality PCB board,
thermal protectors and circuit breakers,
effectively avoiding the over-charge, and short circuit.
High Capacity with Small Size





Basic specification:

Item Specification
type Li-ion
cell 603048
Material pvc
Weight ~20g
connector XH2.5-2PIN
Nominal capacity 1Ah
Charging temperature range 0~50
Discharge temperature range -10~45
Rated voltage 11.1V
Charging cut-off voltage 12.6V
Discharge temperature range -10~60
compound mode 3s1p
Maximum charging current 500mA
Discharge cut-off voltage 9.0V
Maximum continuous discharge current 1A
Size(L*W*H) 52.5*30*12.8
cycle life ≥300 cycle
storage one mobth:-20~+60
three months:-20~+45
one year:-20~+23



Main Applications :

Telecommunications, Portable equipment,Portable Devices, Illuminate Devices, Other toys, such as: cellular phone,

interphone, cordless phone,digital camera, portable DVD, portable television, GPS, PDA, PMP, PSP, portable medical

device, instrument and apparatus,miner lamp, searchlight, lighting devices, emergency light.e cigarette, mc models,

power tools. Widely applied in POS system, Solar supply system, electric tools, household,appliance and emergent

device area, electric bikes, Laptop, camcorder, Military equipment, IR telescope, Medical devices.

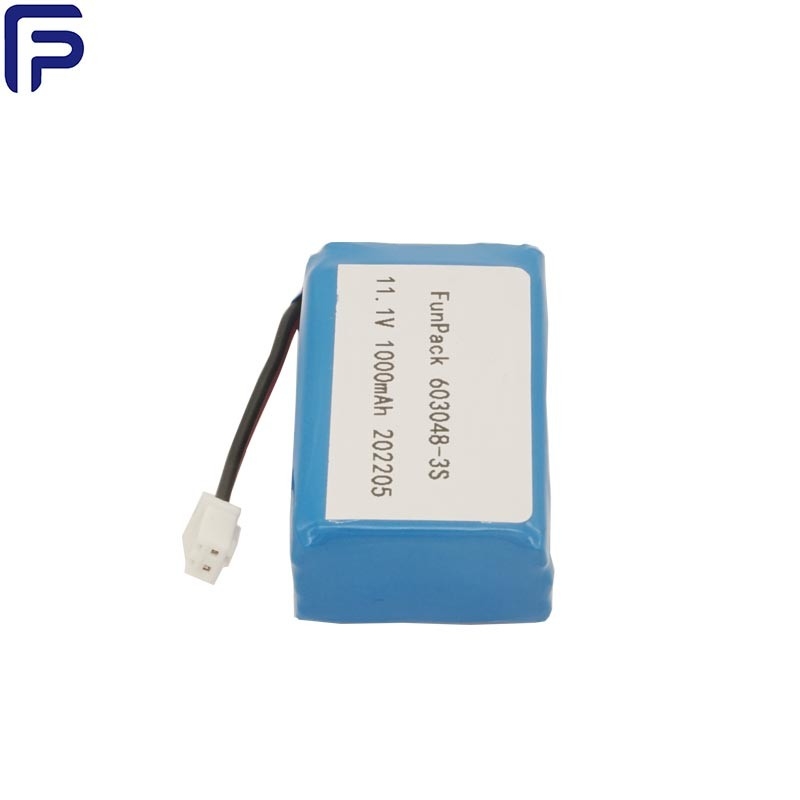

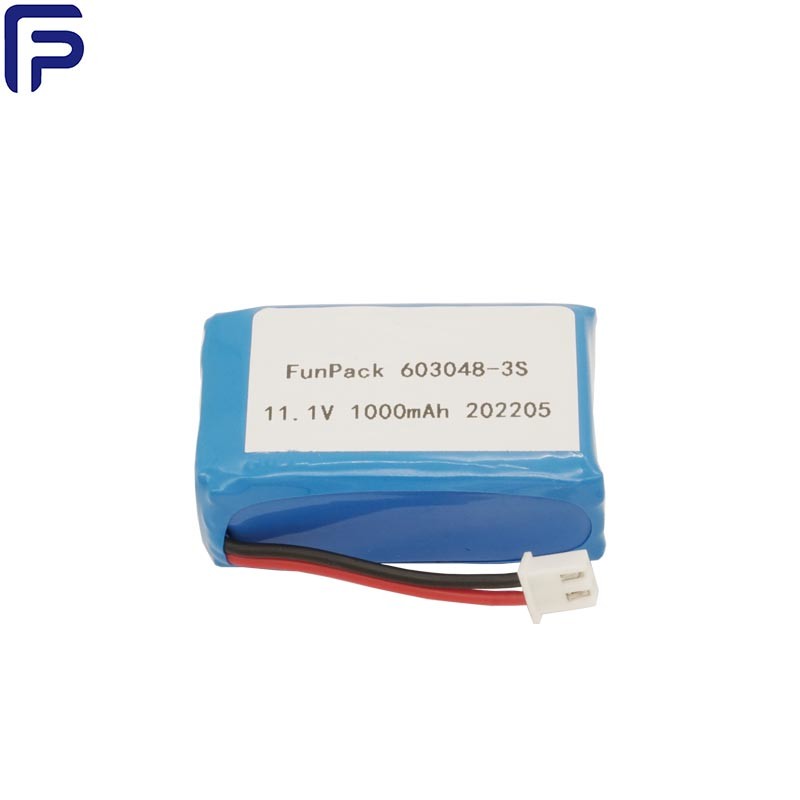

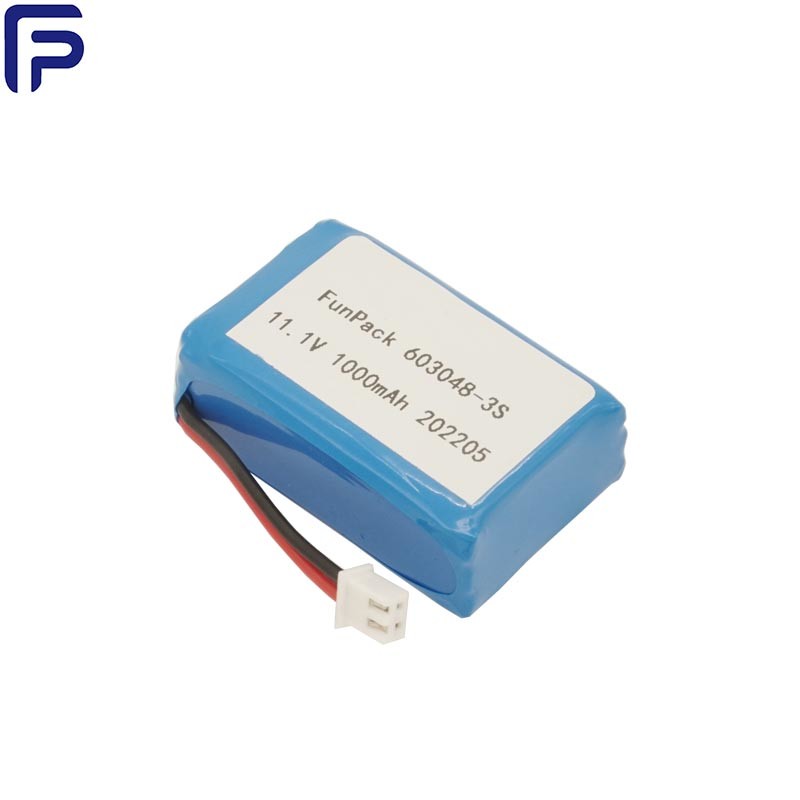

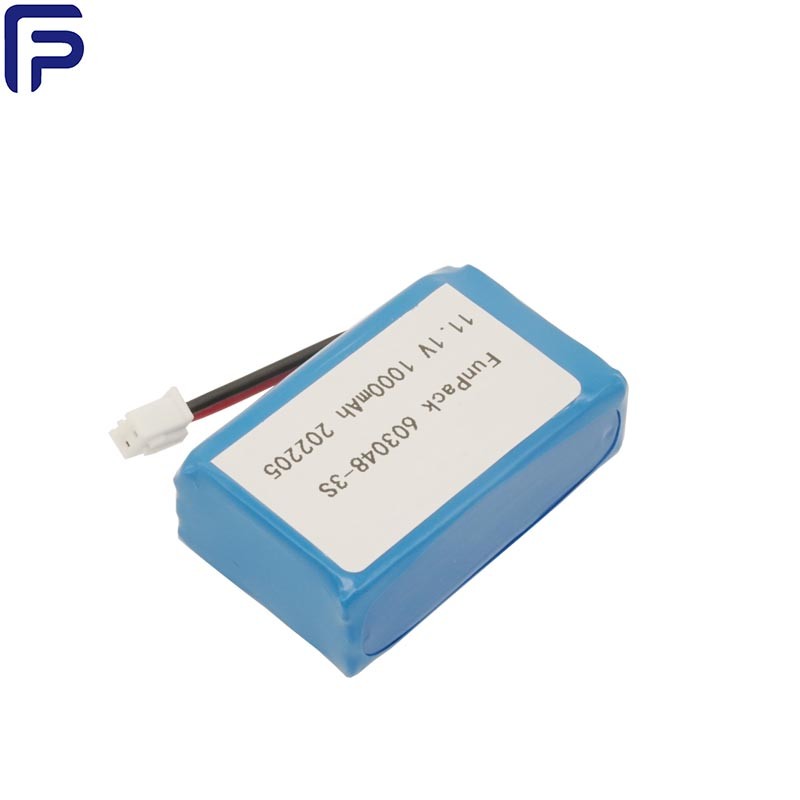

11.1V 3S 603048 Lithium Ion Battery Pack 1000mAh 300 Cycle For Medical Machine 0

11.1V 3S 603048 Lithium Ion Battery Pack 1000mAh 300 Cycle For Medical Machine 1











FAQ:

1, Q: Are you Factory,How long to make Battery Pack?
A: We are the Professional Battery Factory,we Need 30day around if we don't have stock of that model.Because need strictly

    test and high temperature,high voltage life aging as well in every single Battery.That will takes a fixed date.
2,Q:How to start the cooperate?
A: Lets start with the sample orders. In 5days will be ready the samples, then you test.We make the standard according the

    data sheet which we give.Once you confirm the quality, we can talk for further.
3,Q: What will be the packing?
A: We are using blister pallet packing in each battery pack. and then fold all packing in one ctn.
4, Q: Can the connectors or PCB be customized?
A: Yes, we can choose the right connector according your requirement.Or help to match your device.
5,Q: Is OEM/ODM battery pack available?
A: Yes, OEM/ODM battery packs are warmly welcome. Professional engineers provide technical support.
6,Q: What information do you need to make a customized battery pack?
A: We need the details below:
① Size of the battery pack you need in mm.
② Capacity of the Battery pack.
③ Voltage of the battery pack.
④ Max discharge current.
⑤ Cable and connector types you need.
⑥ Casing and Terminals if required.
⑦ Any protection circuits you may need.
7,Q: How do you arrange shipment for batteries?
A: Most of the Batteries we sell are exported.So We have long-standing forwarder partner who arranges shipments to all over the

     world. Although batteries are categorized as dangerous goods, you should rest assured that your cargo will be delivered through

    our experienced shipping partner(s).
8,Q: Do you have the documents required for battery shipments?
A: Yes, we have MSDS, UN38.3, etc. and other special files needed for shipments to some regions can also be secured.
