1S3P 8960mAh 33.97WH Lithium Ion Polymer Battery Pack Rechargeable For Shared Bikes

Minimum Order Quantity : 5000PCS Price : Negotiate The Price
Packaging Details : Customer requirements Delivery Time : 30-45 work days
Payment Terms : D/P, T/T, D/A, L/C Supply Ability : 5000PCS /Day
Place of Origin: Battery CELL made in CHINA Brand Name: FUNPACK
Certification: CE ROHS Model Number: MK10.0101

Detail Information

Pack Configuration: 1S3P Minimal Capacity: 8700mAh /32.19Wh
Typical Capacity: 8960mAh/33.97Wh Typical Voltage: (3.7*1S3P) V
Initial Resistance: ≤ 100mΩ Allowable Allowable Humidity Range: 10%~90%
Standard Charging: 0.2Cmin Size: 30.5*32.94*46*58mm
Discharge Cut-off Voltage: (3.0*1S3P)V Pack Weight (Approx): ~260g
High Light:

8960mAh Lithium Ion Polymer Battery Pack


1S3P Lithium Ion Polymer Battery Pack


Shared Bikes rechargeable li ion polymer battery

Product Description

8960mAh 33.97WH Lithium Ion Polymer Battery Pack Rechargeable For Shared Bikes


Product Description:
No development costs, fast time-to-market

Worldwide approvals and certification of safety standards
Smart batteries with numerous features according to the SMBus specification
Life expectancy: Up to 80% of initial capacity after300 cycles
Rechargeable batteries have built-in high quality PCB board,
High Capacity with Small Size

thermal protectors and circuit breakers,
effectively avoiding the over-charge, and short circuit.


Product Parameters:

Item Specification
Bttery Model L9N1_8700mAh 3.7V
Pack Configuration 1 Series 3 parallel (1S3P)
Standard Environmental Test Conditions
1):Unless otherwise specified, all tests stated in this Product Specification are conducted at below conditions:
Temperature: 25 ±3°C (“Temperature Condition”)
Humidity: 65 ± 20% RH (“Humidity Condition”)
2):Numeric criteria annotated by “*” means such criteria are only applicable to fresh unused Product within 30 days from manufacture . Products either have been used or stored for a period longer than 30 days by Customer and/or its customer may exhibit an inferior numeric parameter than such criteria. Customer agrees that such occurrence does not constitute nonconformance of specification
*Minimal Capacity 8700mAh /32.19Wh
Typical Capacity 8960mAh/33.97Wh
*Typical Voltage (3.7*1S3P) V
Charge Cutoff Voltage (4.2*1S3P) V
Discharge Cut-off Voltage (3.0*1S3P)V
Standard Charging 0.2Cmin: Standard charge means charging at 0.2Cminto 4.2V in 23±2℃
Standard Charging Time ≤6h: Charging time with 0.2Cmin max to 4.2V, then CV to 0.02Cmin
Charge 0°C to20°C: 1.5A Max to 4.2V, then CV to 0.02Cmin
20°C to45°C: 3A Max to 4.2V, then CV to 0.02Cmin
45°C to60°C: 3A Max to 4.1V, then CV to 0.02Cmin
>60°C: Charging prohibited
Standard Discharge 0.2Cmin: Standard discharge means discharging at 0.2Cmin down to 3.0V in 23±2℃
Discharge <-20°C: Discharging prohibited
-20℃ to 60℃: 0.2Cmin Max discharge to 3.0V 2.5Ah max pulse discharge
> 60℃: Discharging prohibited
Standard Discharging Time ≤6h: Charging time with0.2Cmin Max discharge to 3.0V time;
Storage Temperature -10 ℃to 45℃: 1month recoverry≥85%,thickness swell ing ≤3%
-10 ℃to 35℃: 6months recoverry≥85%,thickness swell ing ≤2%
-10℃ to 25℃: 12months recoverry≥85%,thickness swell ing ≤1%
Cell are stored in shipment voltage range at 35℃ for 3months or RT for 12months or 45℃ for 1month, measures the recovered capacity with standard charge/discharge method @RT environment≥85% initial capacity,
*Initial Resistance ≤ 100mΩ
Allowable Humidity Range 10%~90%
*Pack Voltage (V) (as of shipment, Alternative) 3.60~3.78V
*RT Cycle life(25°C±3°C) 0.2Cmin Max Charge to 4.2V, then 0.2Cmin discharge to 3.0V, repeat to 300 cycles, record the remained capacity
Pack Weight (Approx) ~260g
Size 30.5*32.94*46*58mm

The main advantage
For small, thin and flexible devices such as smart cards, trackers
And smart wearables, lithium polymer batteries can provide a certain amount of electricity to drive their functions
Signal transmission or data acquisition.
The main function
Lithium-polymer batteries make it possible to make small objects smart. Flexible lithium polymer battery
Open up new applications for lithium ion batteries. Lithium polymer secondary batteries can be charged and discharged
Cycle, broaden the service life of electronic products.

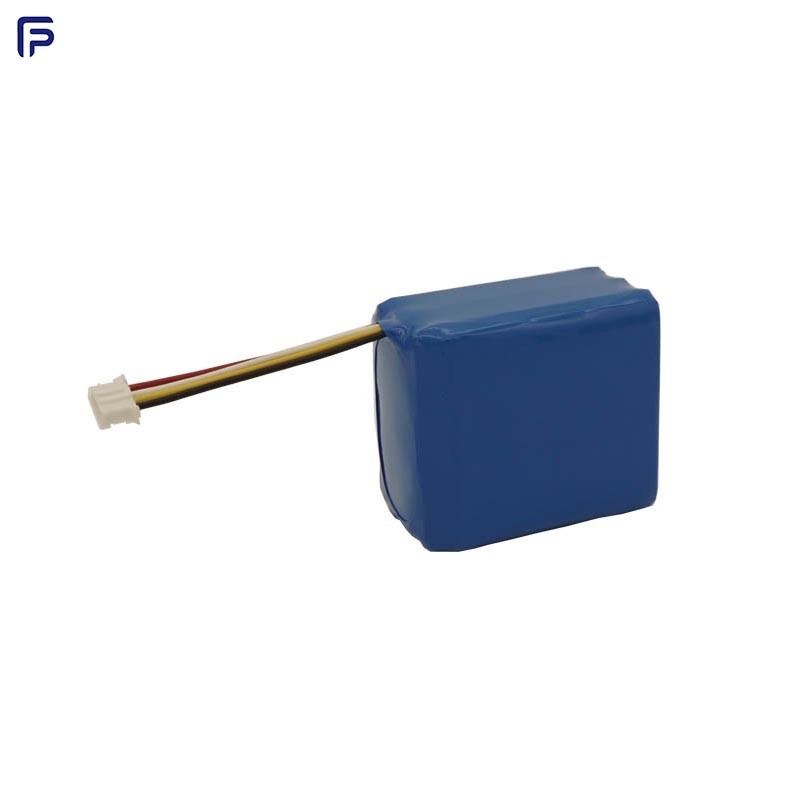

1S3P 8960mAh 33.97WH Lithium Ion Polymer Battery Pack Rechargeable  For Shared Bikes 0

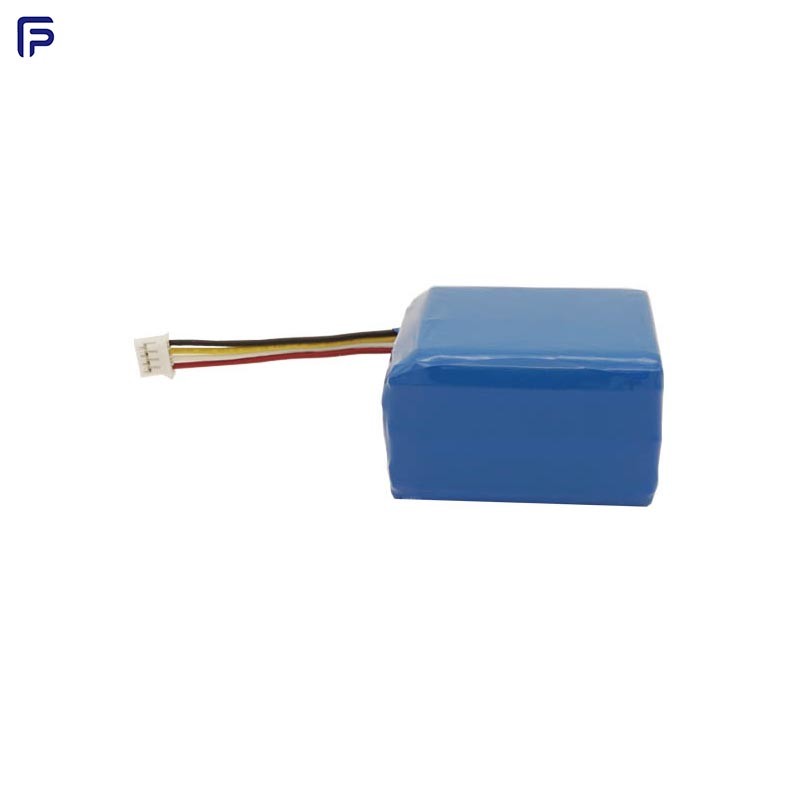

1S3P 8960mAh 33.97WH Lithium Ion Polymer Battery Pack Rechargeable  For Shared Bikes 1

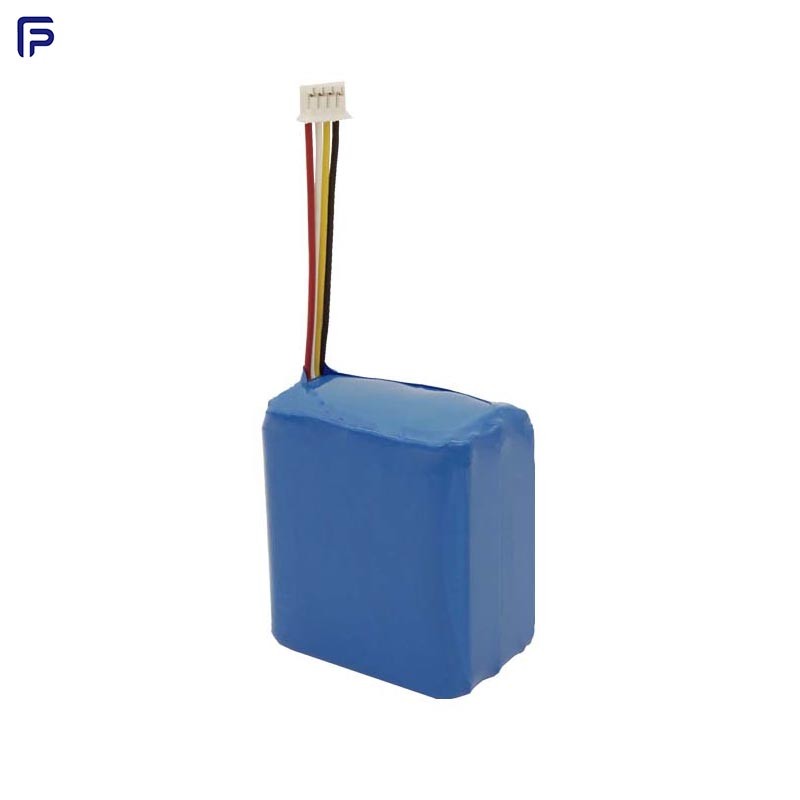

1S3P 8960mAh 33.97WH Lithium Ion Polymer Battery Pack Rechargeable  For Shared Bikes 2


Q1: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Customized is available.
Q2: What about the lead time?
A: Sample needs 7-12 days, mass production time needs negotiation.
Q3: How do you ship the goods and how long does it take to arrive?
A: We usually ship by JEC. It usually takes 13-15 days to arrive. Airline and sea shipping also optional.
Q4: How to proceed an order?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our

      suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange

      the production.
Q5: Is it OK to print my logo on product?
A: OK, Need customer provide their packaging or we make neutral packaging.
Q6: Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us

      or tell us in your email so that we’ll regard your inquiry priority
