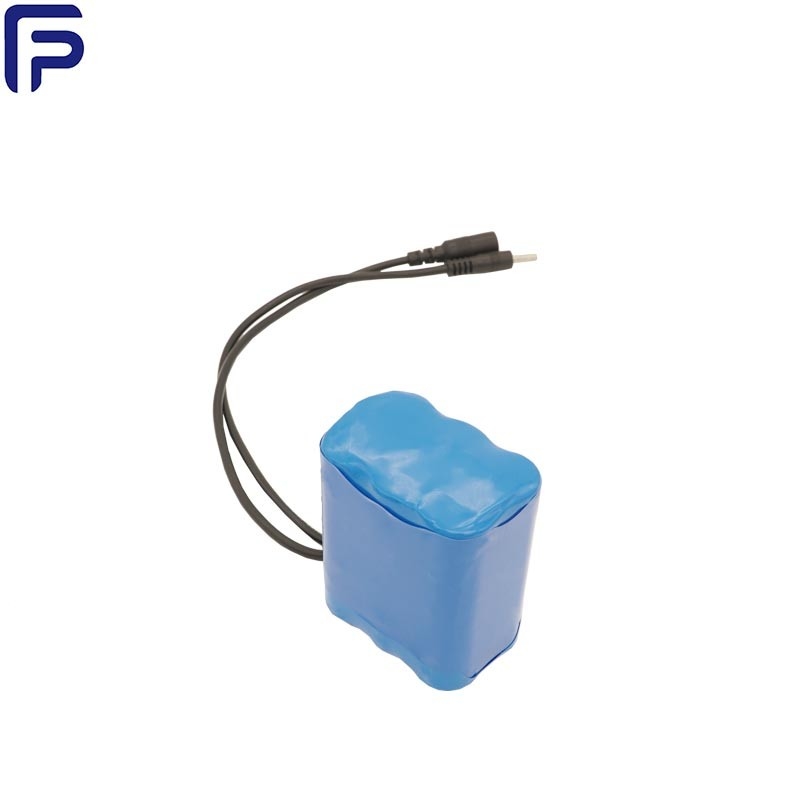

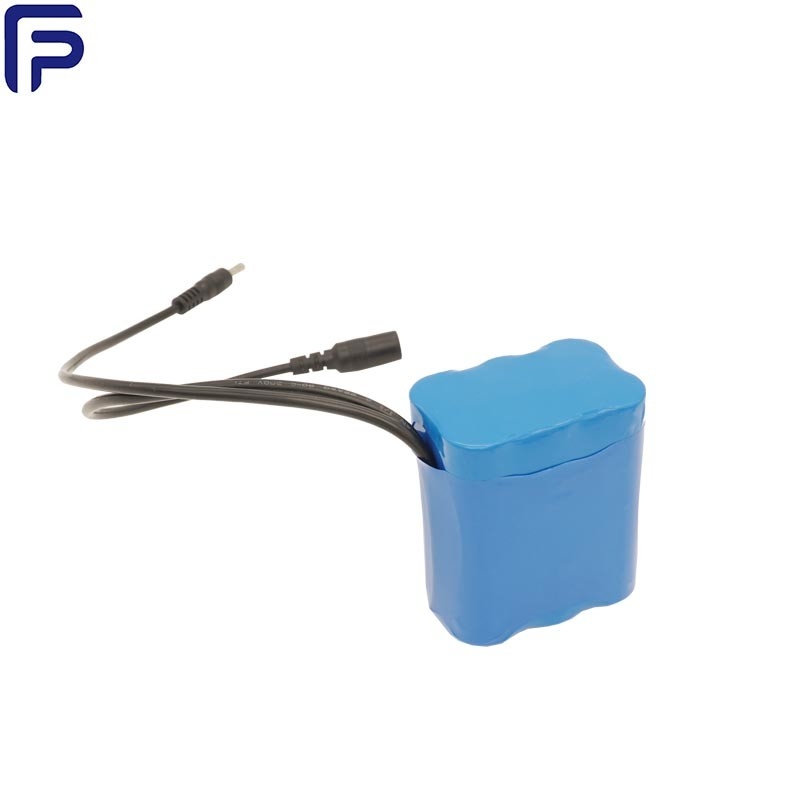

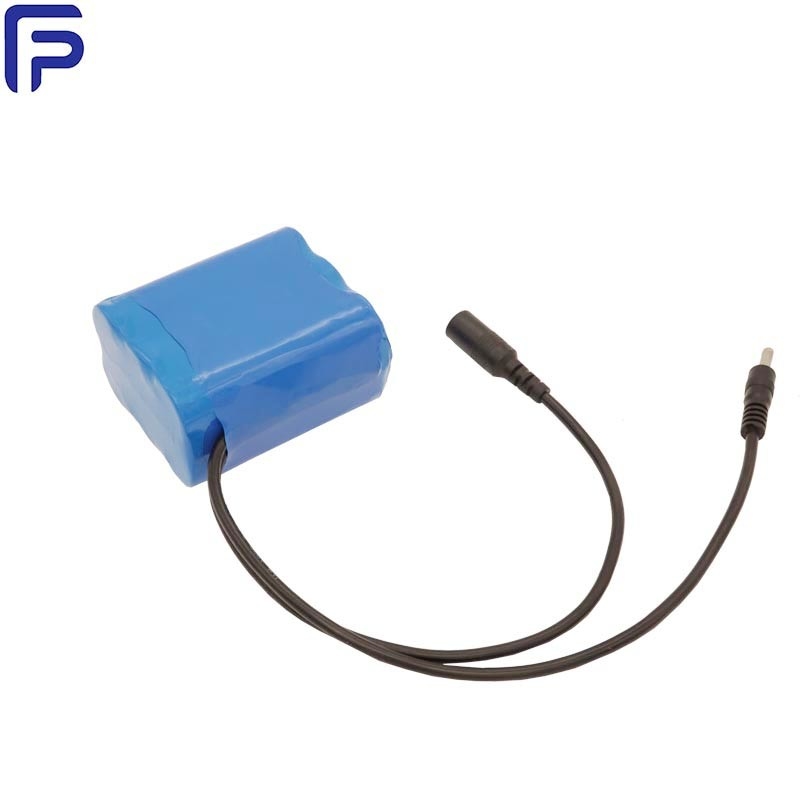

11.1V 3S2P Lithium Ion Battery Pack 5000mAh Rechargeable With PCB

Minimum Order Quantity : 10000 Price : Negotiated The Price
Packaging Details : Customer requirements Delivery Time : 30-45 work days
Payment Terms : T/T, D/P, D/A, L/C Supply Ability : 5000PCS /Day
Place of Origin: Battery CELL made in CHINA Brand Name: FUNPACK
Certification: CE ROHS Model Number: FP-18650-3S2P

Detail Information

Pack Configuration: 3S2P Size: 69*56*37mm
Pack Weight (Approx): 310±5g Minimal Capacity: 4900mAh
Typical Capacity: 5000mAh Voltage: 11.1V
Allowable Humidity Range: 65±20% Pack Voltage (V): 10.8-11.4V
High Light:

3S2P Lithium ion Battery Pack


Custom Lithium ion Battery Pack


5000mAh rechargeable lithium ion battery pack

Product Description

3S2P Lithium Ion Battery Pack 5000mAh 11.1V with PCBA


Worldwide approvals and certification of safety standardsNo development costs, fast time-to-market. Cycle life expectancy up to 80% of initial capacity after 300 cycles. Smart batteries with numerous features according to the SMBus specificationRechargeable batteries have built-in high quality PCB board, thermal protectors and circuit breakers, effectively avoiding the over-charge, and short circuit. High Capacity with Small Size.


Product Parameters:

Item Specification
Model Name FP-18650-3S2P
Pack Configuration 3 Series 2 parallel (3S2P)
Standard Environmental Test Conditions
1):Unless otherwise specified, all tests stated in this Product Specification are conducted at below conditions:
Temperature: 25 ± 3°C (“Temperature Condition”)
Humidity: 65 ± 20% RH (“Humidity Condition”)
2):Numeric criteria annotated by “*” means such criteria are only applicable to fresh unused Product within 30 days from manufacture. Products either have been used or stored for a period longer than 30 days by Customer and/or its customer may exhibit an inferior numeric parameter than such criteria. Customer agrees that such occurrence does not constitute non conformance of specification
*Minimal Capacity 4900mAh
Typical Capacity 5000mAh
*Typical Voltage (11.1*3S2P) V
Charge Cutoff Voltage (*3S2P) V
Voltage at End of Discharging (9.0*3S2P)V
Standard Charging Current 1A
Standard Charging Time ≥3h
Maximum charge current 2.5A
Charge <-10℃: Charging prohibited
-10℃ to 0℃: ≤0.1Cmin CC to 12.6V then CV to 0.02Cmin
0℃ to 15℃: ≤0.2Cmin CC to 12.6V then CV to 0.02Cmin
15℃ to 45℃: ≤0.5Cmin CC to 12.6 then CV to 0.02Cmin
45℃ to 60℃: ≤0.5Cmin CC to 12.3V then CV to 0.02Cmin
Standard Discharge 0.2C: Standard discharge means discharging at 160mA(0.2Cmin) down to 9.0V in 23±2℃
Standard Discharging Time ≥3h: 0.5Cmin Max discharge to 9.0V time
Maximum discharge current 5A
Discharge -30℃ to -20℃: ≤0.1Cmin discharge to 9.0V
-20℃ to 60℃: ≤0.2Cmin max discharge to 9.0V
Storage Temperature -20 to 45℃: 1month recovery≥85%,thickness swelling ≤3%
-20 to 35℃: 6months recovery≥85%,thickness swell ing ≤2%
-20 to 25℃: 12months recovery≥85%,thickness swell ing ≤1%
*Initial resistance ≤ 120mΩ
Allowable Humidity Range 65±20%
*Pack Voltage (V) (as of shipment, Alternative) 10.8~11.4V
*RT Cycle life(25°C±3°C) Charge battery with standard charge method and discharge battery with 0.2Cmin discharging.
Pack Weight (Approx) 310±5g(Ref)
Size max69*56*37mm

Main Applications

Mainly used for safe lock, Smart locks for shared bikes


Main Functions

Lithium Polymer batteries make it possible for small objects to achieve intelligence. Bendable Lithium Polymer cells

open up new applications for lithium-ion batteries. For small, thin and flexible devices such as smart cards, trackers

and smart wearables, Lithium Polymer battery can provide a certain amount of electric energy to drive their functions

of signal transmission or data acquisition. And Lithium Polymer secondary battery allows charging and discharging

cycle, broadening the servicing life of electronics products.


11.1V 3S2P Lithium Ion Battery Pack 5000mAh Rechargeable With PCB 0



Q:   Can I have a sample order?
A:   Yes, we welcome sample order to test and check quality. Customized is available.
Q:   What about the lead time?
A:   Sample needs 7-12 days, mass production time needs negotiation.
Q:   How do you ship the goods and how long does it take to arrive?
A:   We usually ship by JEC, It usually takes 13-15 days to arrive. Airline and sea shipping also optional.
Q:   How to proceed an order?
A:   Firstly let us know your requirements or application. Secondly we quote according to your requirements or our

      suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange

      the production.
Q:   Is it OK to print my logo on product?
A:   OK, Need customer provide their packaging or we make neutral packaging.
Q:   Where can I get the price?
A:   We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us

      or tell us in your email so that we’ll regard your inquiry priority.
