1350mAh 3.7V Ultra Thin Battery Lithium Ion For Ebooks 300 Cycle Life

Minimum Order Quantity : 1000PCS Price : Negotiated The Price
Packaging Details : Customer Requirements Delivery Time : 30-45 work days
Payment Terms : T/T, D/P, D/A, L/C Supply Ability : 10000PCS/Month
Place of Origin: CHINA,GuangDong Brand Name: FUNPACK
Certification: CE UL ROHS Model Number: L02178

Detail Information

Battery Type: Li-ion Polymer Battery Voltage: 3.7V
Capacity: 1350mAh Impedance: ≤300mΩ
Life Cycle: 300 Times Shipment Voltage: 3.75~3.95V
Cell Weight: 32g Size: 3*45*134mm
High Light:

Ultra Thin Battery 3.7V

,

Ultra Thin Battery 1350mAh

,

Ebooks Ultra Thin Lithium Ion Battery

Product Description

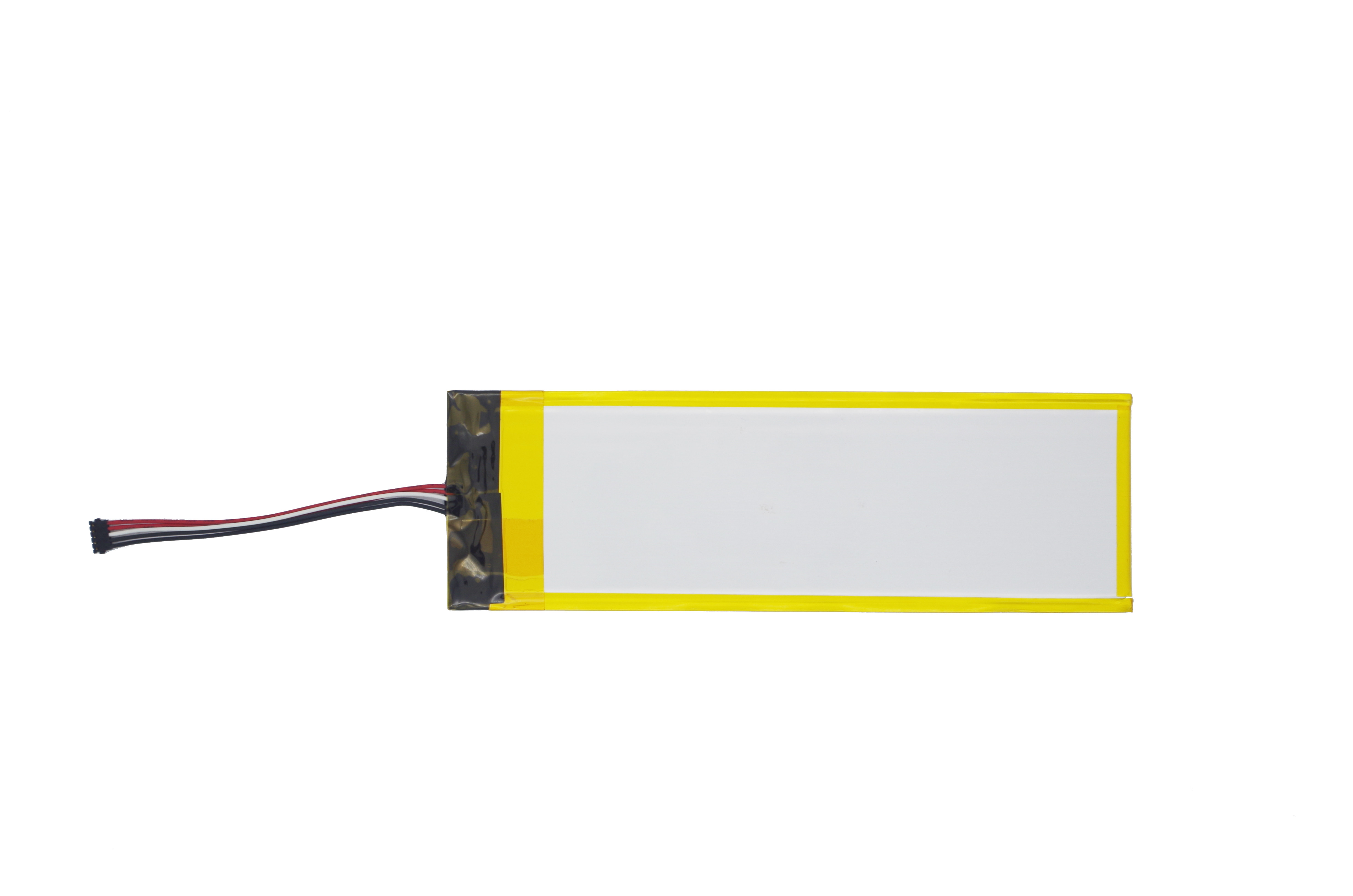

1350mAh 3.7V Ultra Thin Lithium Ion Battery Polymer With Ebooks



Product Description:

Lithium Polymer batteries make it possible for small objects to achieve intelligence. Bendable Lithium Polymer cells open up new applications for lithium-ion batteries. For small, thin and flexible devices such as smart cards, trackers.
Lithium Polymer battery can provide a certain amount of electric energy to drive their functions of signal transmission or data acquisition. And Lithium Polymer secondary battery allows charging and discharging cycle, broadening the servicing life of electronics products.



Product Parameters:
Item Specification
Cell Type 1S1P
Capacity 1350mAh(Min.)
Standard Current 230mA (0.2C)
Charging Current
Charge current 4.1V@ 0~15 , Cut off 27mA 135mA
Charge current 4.2V@ 15~45 , Cut off 27mA 1000mA
Standard Current 675mA
Maximum Discharging
Current

Discharge Current – @ -20 ~ 25 1000mA
Discharge Current – @ 25 ~ 60 1000mA
Nominal Voltage 3.7V
Suggestive Discharge Cut off Voltage 3.2V ~ 3.4V
End of Voltage (Discharge) 3.0V
Cycle life After 300 cycles (Under 23±2 )
Environmental using conditions
When stored within 1 Month (RSOC 50% *a) *b -20~ +45
When stored within 3 Months (RSOC 50% *a) *b -20~ +45
When stored within 12Months (RSOC 50% *a) *b -20~ +25
Impedance ≤300mΩ
Shipment Voltage 3.75V ~ 3.95V
NTC NTC10K



PCM:

Item Specification Parameter Unit
Operating Temperature   25
Over Charge Voltage Protect Detect Voltage 4.28±0.015 V
Delay Time 0.96~1.44 Sec
Release Connect R-Load V
Over Discharge Voltage Protect Detect Voltage 2.8±0.035 V
Delay Time 120~180 mSec
Release Connect Charger ----
Over Charge Current Protect Detect Current Typ 3.6(1.8~6.1) A
Delay Time 7.2~10.8 mSec
Release Disconnect Charger ---
Over Discharge Current Protect Detect Current Typ 3.6(1.9~5.8) A
Delay Time 7.2~10.8 mSec
Release Remove R-Load or Connect Charger ---
Short Circuit Detect Current External Short A
Delay Time 240~360 μSec
Release Remove R-Load or Connect Charger ---
Power Consumption
Operating Mode   5.5(max) μA
Power Down Mode   0.1(max) μA


Main Functions:

Lithium Polymer batteries make it possible for small objects to achieve intelligence. Bendable Lithium Polymer cells

open up new applications for lithium-ion batteries. For small, thin and flexible devices such as smart cards, trackers

and smart wearables, Lithium Polymer battery can provide a certain amount of electric energy to drive their functions

of signal transmission or data acquisition. And Lithium Polymer secondary battery allows charging and discharging

cycle, broadening the servicing life of electronics products.



FAQ:

Q1: Are you a trading company or manufacturer?What is your terms of payment?
A: T/T 30% as deposit, and 70% balance payment before shipment. We'll show you the photos of the products

and packages before shipment.

Q2: Can you do OEM and ODM?

A: Yes, OEM and ODM are both acceptable. You can provide the detailed specification requirements to us, our

engineers can design the most suitable battery solution for you.

Q3: What's your battery product range?

A: The battery range we can make is voltage from 3.2V to 100V, Capacity from 1Ah to 100Ah.

Q4: Is it possible to buy a sample to test?
A: Yes. You can buy a sample to test.

Q5. Are you a trading company or manufacturer?

A: We are professional manufacturer specialized in Lithium ion batteries and LiFePO4 batteries for Electric bicycle, Electric scooter, Electric motorcycle, Electric Tricycle, Sharing bike, vacuum cleaners, Energy storage system for Industrial and household, as well as customized battery packs application.
