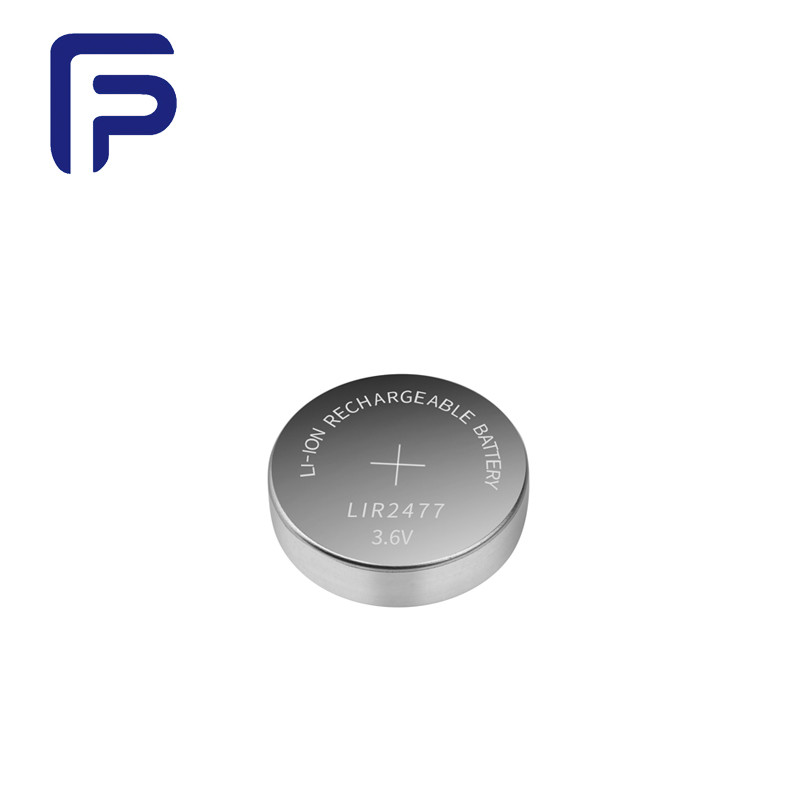

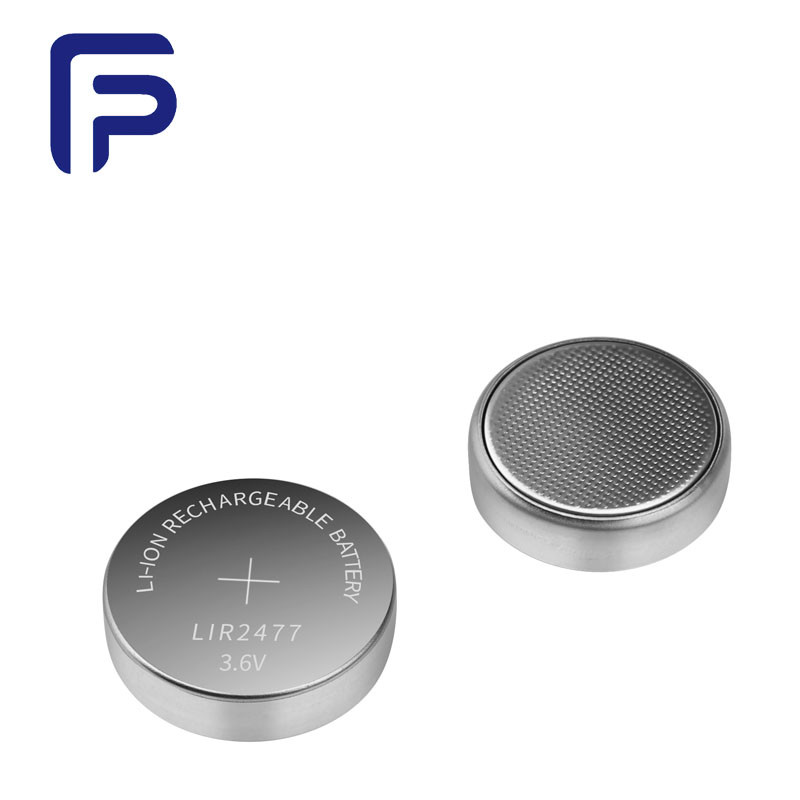

4.2V Lir2477 Rechargeable Battery , 180mAh Lithium Ion Button Battery 0.65Wh

Minimum Order Quantity : 1000PCS Price : Negotiated The Price
Packaging Details : Customer Requirements Delivery Time : 30-45 work days
Payment Terms : T/T, D/P, D/A, L/C Supply Ability : 10000PCS /Day
Place of Origin: Battery CELL made in CHINA Brand Name: FUNPACK
Certification: CE ROHS Model Number: L672477

Detail Information

Power Of Battery: 0.65Wh End Of Charge Voltage: 4.2V
Pack Configuration: 1S1P Cycle Life: ≥300 Cycles
Material: NCM Dimensions: Max 24.5mm*7.7mm
High Light:

4.2V Lir2477 Rechargeable Battery


180mAh Lir2477 Rechargeable Battery


Lithium Ion Button Battery 0.65Wh

Product Description

LIR 2477 180mAh Lithium Ion Battery 24mm*7.7mm For Safety GPS Tracking Device NFC Card TWS
Product Description:
Long cycle life, high reliability.
Small size, light weight, high energy density, environment friendly.
Wider working temperature range, excellent high and low tempera-ture performance
High efficiency, stable power supply, high power output, visual design.
High self-maintenance and strong environmental adaptability.

Basic specification:
Item Specification
Battery Pack Type FH-LIR2477
Cell Type LIR2477
Capacity 180mAh
Nominal Voltage 3.7V
Cycle Life ≥500 cycles
Impedance ≤400mΩ
Weight ~7g


Size Max 24*7.7
Power of battery 0.648Wh
End of Charge Voltage 4.2V
Charge Current 0.2C
Over-Charge Voltage Protection cell 4.25V
Maximum Continuous Discharging Current 1C
Operation Temperature Range Charge 0~55 C, Discharge -10~60 C

Main Applications :

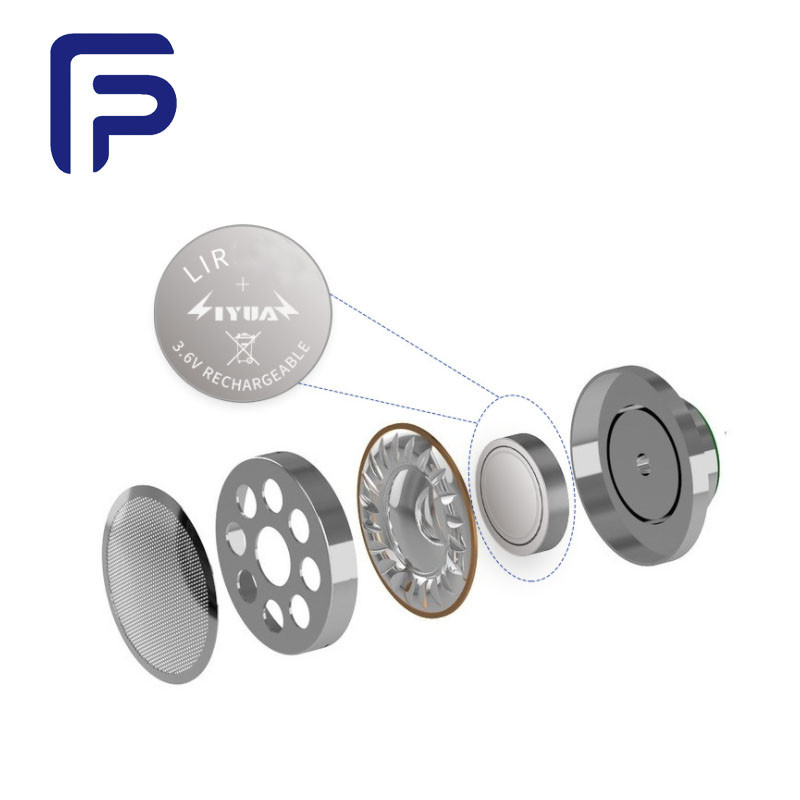

Safety GPS Tracking Device NFC Card TWS Headphones.

4.2V Lir2477 Rechargeable Battery , 180mAh Lithium Ion Button Battery 0.65Wh 04.2V Lir2477 Rechargeable Battery , 180mAh Lithium Ion Button Battery 0.65Wh 1
Q1: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Customized is available.
Q2: What about the lead time?
Sample needs 7-12 days, mass production time needs negotiation.
Q3: How do you ship the goods and how long does it take to arrive?
A: We usually ship by Fedex. It usually takes 13-15 days to arrive. Airline and sea shipping also optional.

Q4: Is it OK to print my logo on product?
A: OK, Need customer provide their packaging or we make neutral packaging.
Q5: Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us
or tell us in your email so that we’ll regard your inquiry.
