Rechargeable Lithium Ion Battery Cells 3.2V 26Ah For EV ESS Application

Minimum Order Quantity : 800 Price : Negotiated The Price
Packaging Details : Customer requirements Delivery Time : 30-45 work days
Payment Terms : T/T, D/P, D/A, L/C Supply Ability : 1200PCS /Day
Place of Origin: CHINA,GuangDong Brand Name: FUNPACK
Certification: CE UL ROHS REACH Model Number: FP-85E2240

Detail Information

Cell Type: 85E2240 Voltage: 3.2V
Life Cycle: 3500 Cycles Capacity: 26Ah
Weight: 543g Dimension: 240*141*7.9mm
High Light:

Lithium Ion Battery Cells 3.2V

,

Lithium Ion Battery Cells 26Ah

Product Description

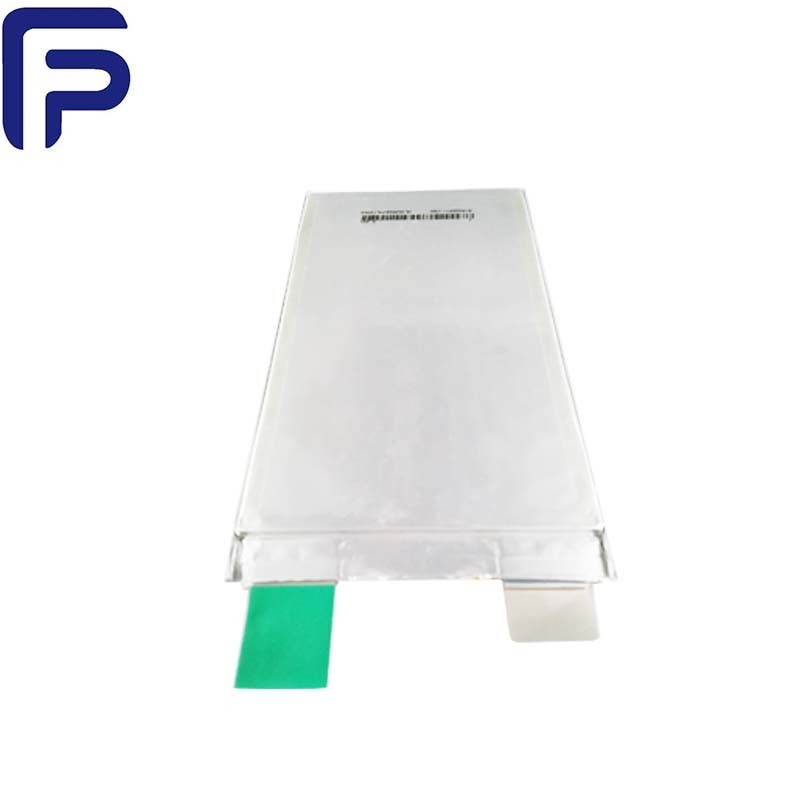

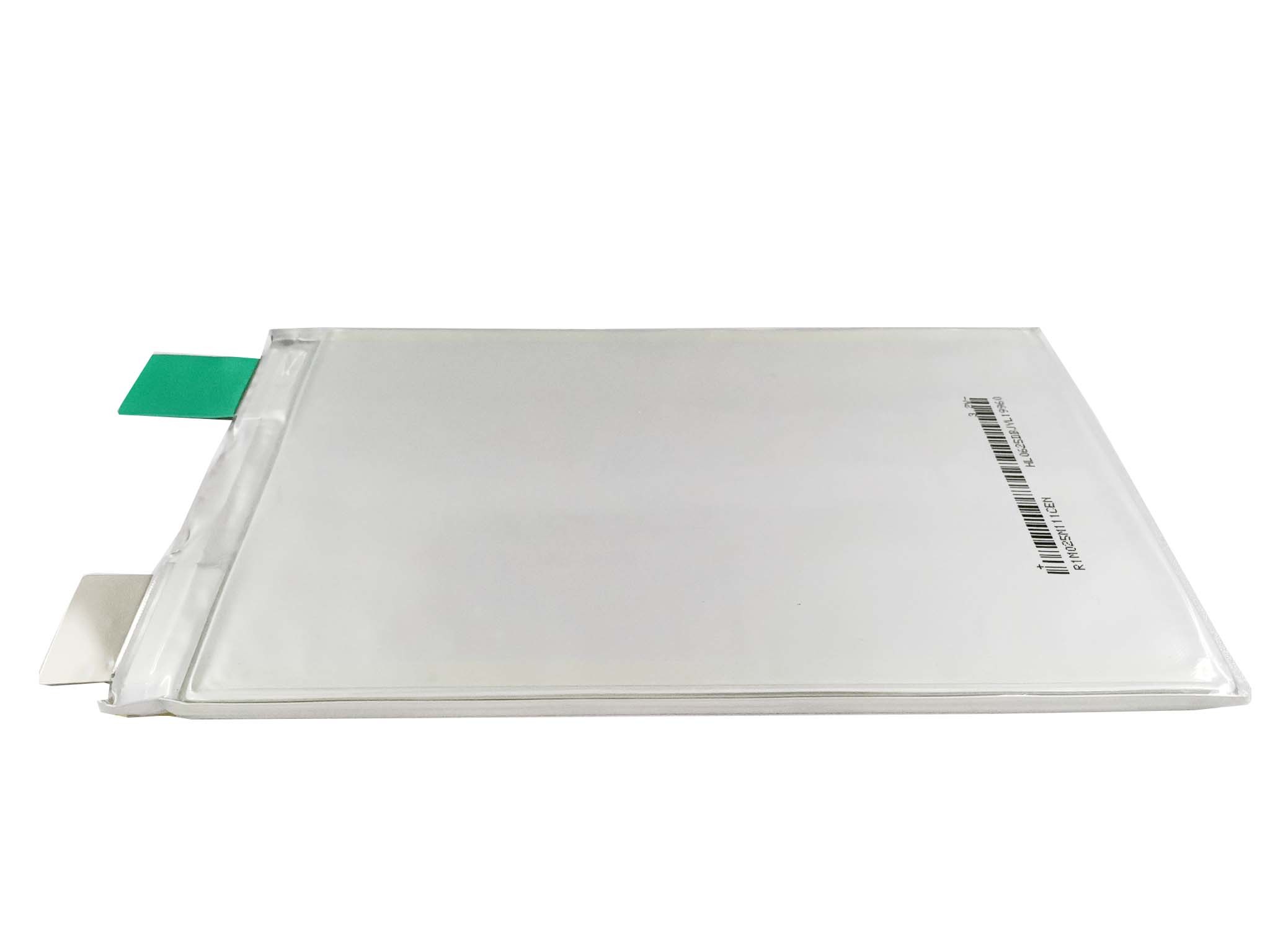

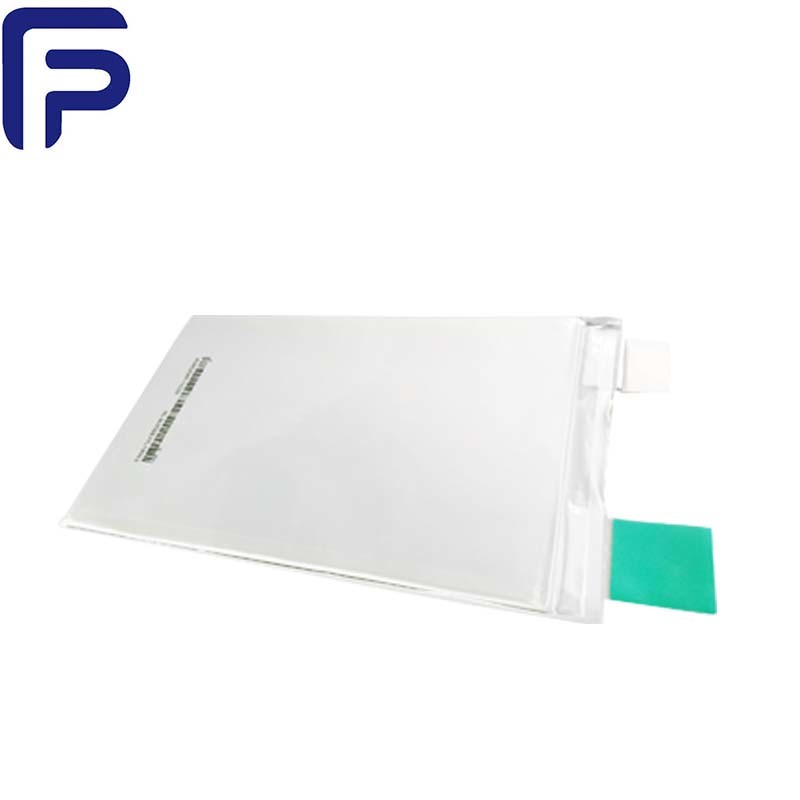

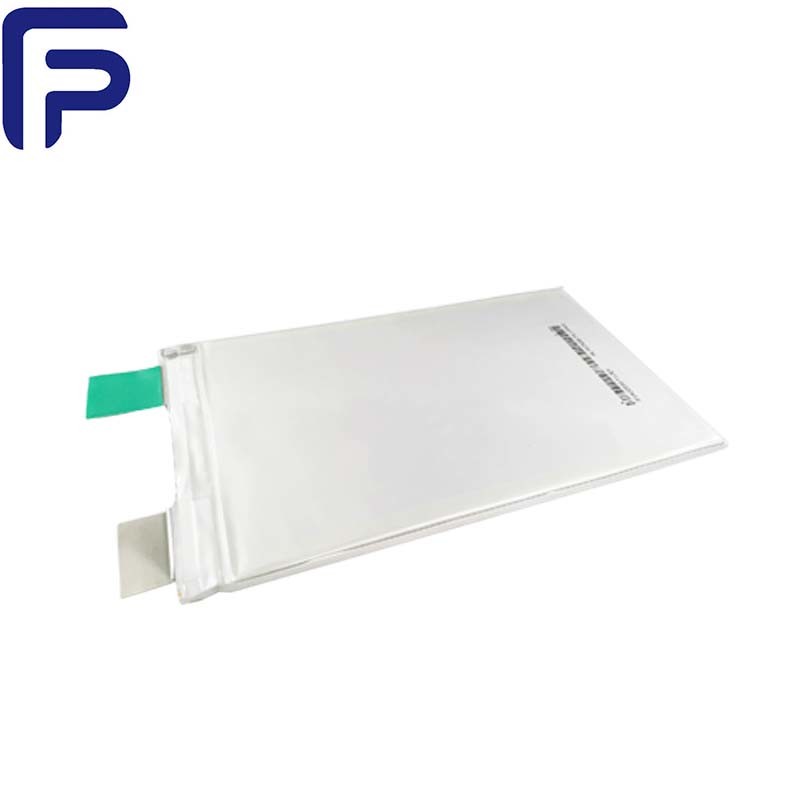

3.2V Rechargeable Flexible Packaging Lithium Ion Battery Cell 26Ah For EV or ESS Application



Features:

Independent patent technology, stable mass productiun.
Stable structure,high compaction density and excellent cycle life.
Wide operating temp range and good low temp performance.
High safety and reliability and a wide rang of applications.
Environmentally Friendly.
60A continuous discharge current.
High safety and reliability and a wide range of applications.





Basic specification:



Items Specification
Charge voltage (V) 3.65
Nominal voltage (V) 3.2
Minimal capacity(Ah@0.2C Discharge) 25.5
Typical capacity(Ah@0.2C Discharge) 26
Standard charging method(@25±2°C) 0.2Cm CC Charge to 3.65V, then CV to 0.02Cm cutoff
Charging time (h)(Ref.)(@25±2°C) 5.5h
Max continuous/pulse charge current (C) 1.0/1.5
Max. continuous discharge current (C) 3
Max. 10S pulse discharge current (C) 4
Discharge Cut-off Voltage (V) @ > 0 °C 2.5
@ ≤ 0°C 2
Operating temperature (°C) Charging temperature:0~ 45
Discharging temperature: -20 ~ 60
Storage environment (°C)
-20 to 45 1month recovery capacity90%
-20 to 35 3month recovery capacity90%
-20 to 25 12month recovery capacity90%
After ~50% charged Cell are stored at 35°C for 3months or RT for 12months or 45°C for 1 month, measure the recovered capacity with Standard charge/discharge method @ RT environment 90% of initial capacity.
ACIR@RT, 50%-SOC (mohm) ≤1.2
Cell Weight Approx.(kg) Approx: 0.543
Cell Typical Dimension(mm) L*W*T 240*141*7.9mm mm
Standard Charge
0.2Ct Constant Current
3.65V Constant Voltage
0.02Ct Cut off Current
10~45°C Temperature
Semi-fast Charge
0.5Ct Constant Current
3.65V Constant Voltage
0.05Ct Cut off Current
10~45°C Temperature
Fast Charge
1.0Ct Constant Current
3.65V Constant Voltage
0.02Ct Cut off Current
25~45 Temperature
Continuous Operation 5 ~ 45°C
Excursion -20 ~5°C
1st Over Voltage Limit 3.75V
2nd Over Voltage Limit 3.80V
1st Under Voltage 2.40V
2nd Under Voltage 2.00V



Main Applications :

It is suitable for Portable energy storage, home storage, machine station, two wheeled vehicle, UAV, electric motorcycle, ship

mooring, photovoltaic.

Rechargeable Lithium Ion Battery Cells 3.2V 26Ah For EV ESS Application 0





FAQ:

1, Q: Are you Factory,How long to make Battery Pack?
     A: We are the Professional Battery Factory,we Need 30day around if we don't have stock of that model.Because need

     strictly test and high temperature,high voltage life aging as well in every single Battery.That will takes a fixed date.
2, Q:How to start the cooperate?
     A: Lets start with the sample orders. In 5days will be ready the samples, then you test.We make the standard

         according the data sheet which we give.Once you confirm the quality, we can talk for further.
3, Q: What will be the packing?
     A: We are using blister pallet packing in each battery pack. and then fold all packing in one ctn.
4, Q: Can the connectors or PCB be customized?
      A: Yes, we can choose the right connector according your requirement.Or help to match your device.
5, Q: Is OEM/ODM battery pack available?
     A: Yes, OEM/ODM battery packs are warmly welcome. Professional engineers provide technical support.
6, Q: What information do you need to make a customized battery pack?
     A: We need the details below:
① Size of the battery pack you need in mm.
② Capacity of the Battery pack.
③ Voltage of the battery pack.
④ Max discharge current.
⑤ Cable and connector types you need.
⑥ Casing and Terminals if required.
⑦ Any protection circuits you may need.
7, Q: How do you arrange shipment for batteries?
     A: Most of the Batteries we sell are exported.So We have long-standing forwarder partner who arranges shipments to all over

    the world. Although batteries are categorized as dangerous goods, you should rest assured that your cargo will be delivered

    through our experienced shipping partner(s).
8, Q: Do you have the documents required for battery shipments?
      A: Yes, we have MSDS, UN38.3, etc. and other special files needed for shipments to some regions can also be secured.
