3.7V Rechargeable Lithium Ion Battery Pack 7800mAh 8030mAh With PCB
Contact Person : YI QUAN
Phone Number : 13631634942
Whatsapp : +8613662635407
Minimum Order Quantity : | 800PCS | Price : | Negotiated The Price |
---|---|---|---|
Packaging Details : | Customer Requirements | Delivery Time : | 30-45 work days |
Payment Terms : | T/T, D/P, D/A, L/C | Supply Ability : | 1200PCS /Day |
Place of Origin: | CHINA,GuangDong | Brand Name: | FUNPACK |
---|---|---|---|
Certification: | CE UL ROHS REACH | Model Number: | FP-E6E5156 |
Detail Information |
|||
Cell Type: | E6E5156 | Voltage: | 3.2V |
---|---|---|---|
Life Cycle: | ≥6000 Times | Capacity: | 33.2Ah |
Weight: | 625g | Internal Resistance: | ≤1.5mΩ |
High Light: | EV Lithium Ion Battery 33.2Ah,3.2V EV Lithium Ion Battery |
Product Description

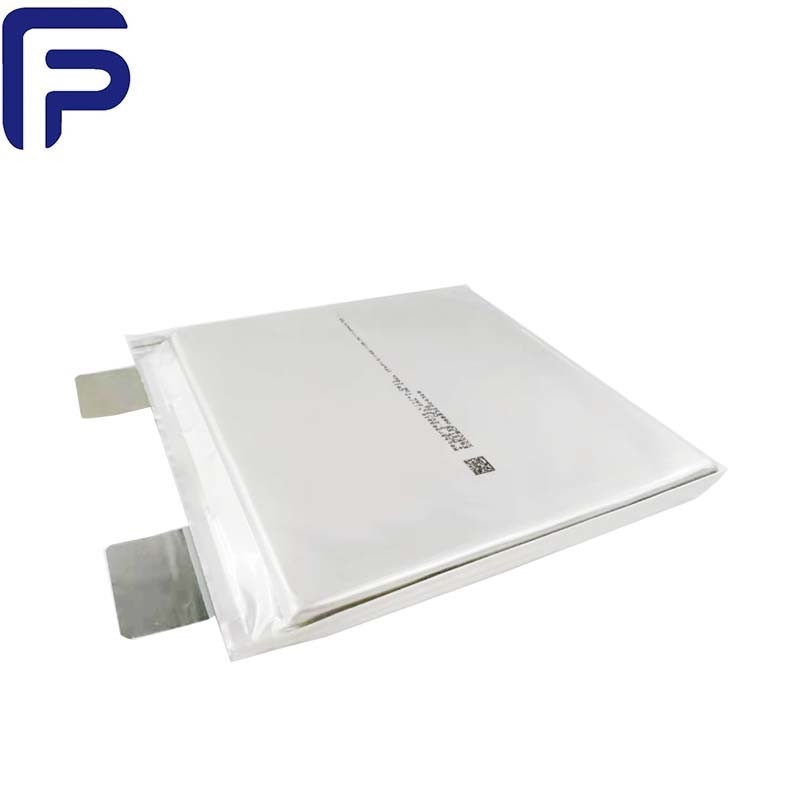

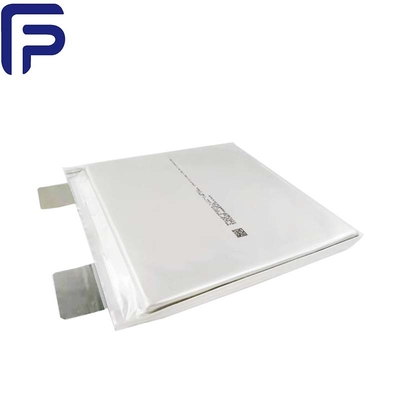

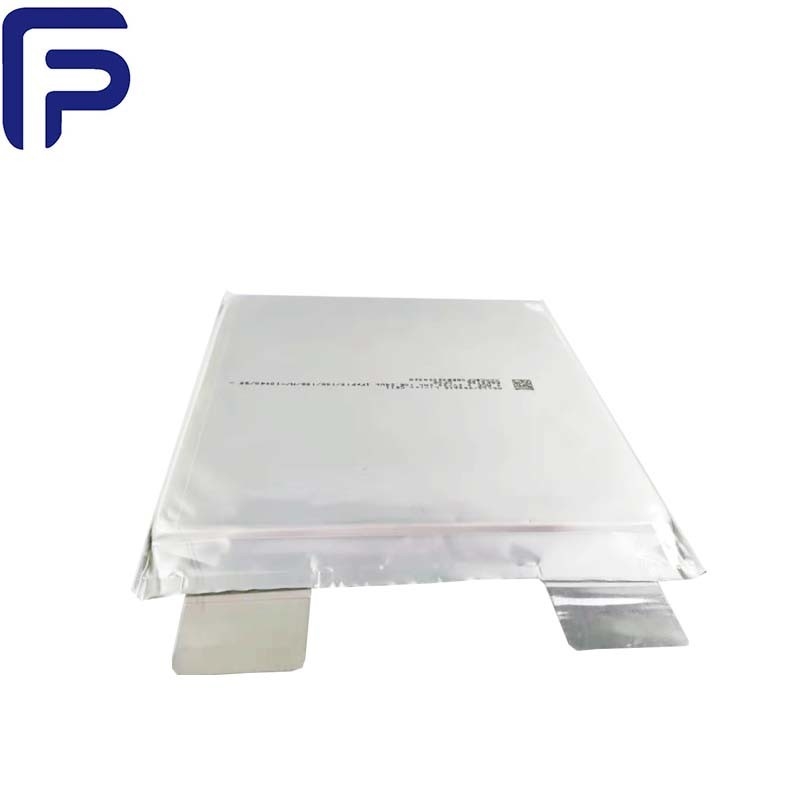

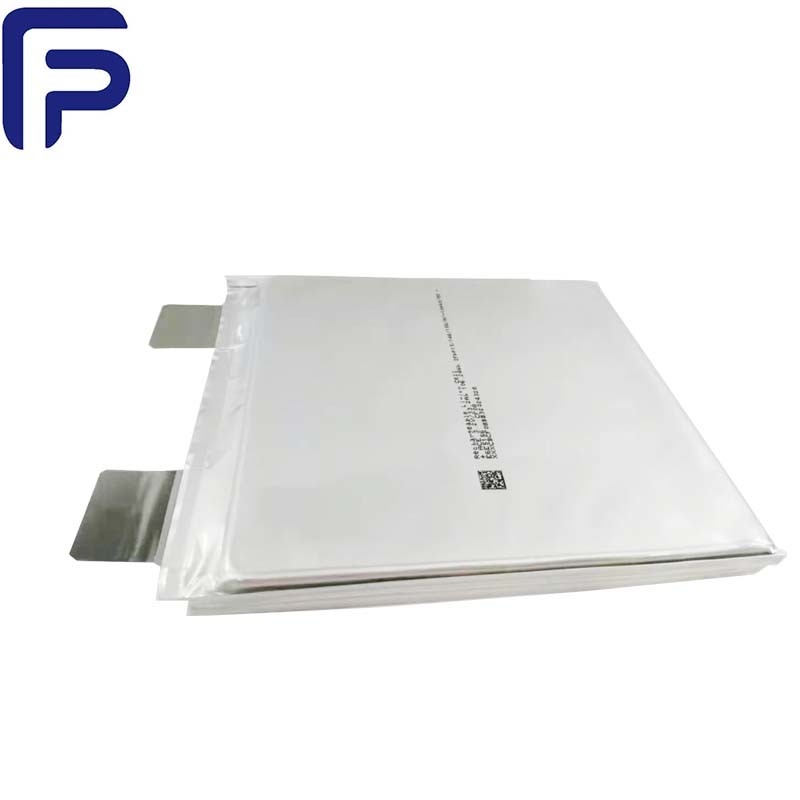

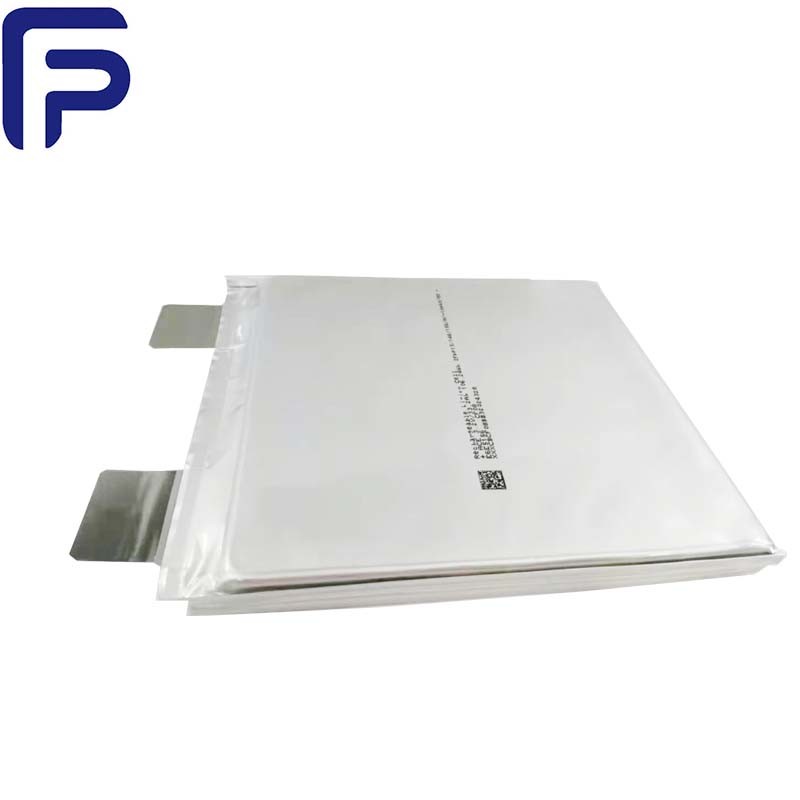

Flexible Packaging Lithium Ion Battery Cell 33.2Ah 3.2V For EV or ESS Application
Product Description:
Focus on cylindrical cell, mature and stable technology
Safety-focused formula, structure and process design,combination of safety, consistency, and long cycle life, as the pioneer
of the Battery industry.
High capacity LFP cylindrical cell and industry-leading comprehensive performance.
Wide application range and environmentally friendly. Diversified portfolio of LFP and NCM products.
Basic specification:
Items | Specifications |
Type of cell | Flexible packaging lithium ion battery cell |
Battery model | E6E5156-01 |
Battery capacity | 33.2Ah(initial capacity) |
32.2Ah(Min) | |
Nominal voltage | 3.2V |
Internal resistance of battery | ≤1.5mΩ |
Cell weight | 625g |
Maximum charging current | |
Continuous charging | 0.75C,25℃ |
Pulse charging | 10S,50%SOC,1.5C,25℃ |
2C charging | 10S,2.8V~3.5V, 25℃ |
Charging voltage | 3.65±0.05V |
Maximum discharge current | |
Continuous discharge | 1.0 C,25℃ |
Pulse discharge | 10S,50%SOC,2.0C,25℃ |
Recommended 0.5c discharge termination voltage | +28℃~+55℃,2.5V |
-10℃~+27℃,2.0V | |
-20℃ ~ -11℃,1.5V | |
Maximum operating temperature range | |
Charging | -10℃≤T≤0℃,0.1C Max,3.6V Max |
0℃≤T≤5℃,0.3C Max,3.6V Max | |
5℃≤T≤15℃,0.5C Max,3.6V Max | |
15℃≤T≤45℃,1.0C Max,3.6V Max | |
45℃≤T≤50℃,1.0C Max,3.45V Max | |
Discharge | -20℃~55℃,2.0C Max |
Optimum operating temperature range | |
Charging | 15℃~35℃ |
Discharge | 10℃~40℃ |
Storage temperature | |
Within 1 month | -40℃~55 ℃ |
Within 6 months | -20℃~35 ℃ |
Cycle life | 25 ℃, 0.75c/0.75c, ≥ 93% DOD, charge and discharge 6000 times, ≥ 75% * initial capacity |
Cell size:
Items | Description | Dimension |
T | Thickness for shipping-without mylar and side tape(mm) | 14.3±0.3 |
W | Width(mm) | 144.5±1.5 |
W0 | Width without folded edge(mm) | 142.0±1.5 |
L0 | Length(mm)-Cell body | 154.5±1.5 |
L | Length(mm)-with Tab Lead | 177.0±2.0 |
L1 | Length without top sealing(mm) | 140.0±2.0 |
W1&W2 | Tab width(mm) | 30.0±0.3 |
E | Top sealing width (mm) | 14.0±2.0 |
C | Sealant outside length(mm) | 0.5~3.5 |
D1 | +TAB to left distance (mm) | 12.5±1.5 |
D | +/-TAB Center Distance(mm) | 90.0±1.5 |
D2 | -Tab to left distance(mm) | 101.5±2.0 |
H1 | Tab to face height(mm) | 6.4±0.7 |
H2 | Tab to back height(mm) | 6.4±0.7 |
T1 | Height of folded edge | 3.5±1.0 |
Main Applications :
It is suitable for Portable energy storage, home storage, machine station, two wheeled vehicle, UAV, electric motorcycle, ship
mooring, photovoltaic.
FAQ:
Q1: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Customized is available.
Q2: What about the lead time?
A: Sample needs 7-12 days, mass production time needs negotiation.
Q3: How do you ship the goods and how long does it take to arrive?
A: We usually ship by JEC. It usually takes 13-15 days to arrive. Airline and sea shipping also optional.
Q4: How to proceed an order?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.
Q5: Is it OK to print my logo on product?
A: OK, Need customer provide their packaging or we make neutral packaging.
Q6: Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us inyour email so that we’ll regard your inquiry priority
Q7:Can custom thread ends be made?
A: Batch can be customized according to customer requirements of various threads.
