3.7V Rechargeable Lithium Ion Battery Pack 7800mAh 8030mAh With PCB
Contact Person : YI QUAN
Phone Number : 13631634942
Whatsapp : +8613662635407
Minimum Order Quantity : | 10000pcs | Price : | Negotiate the price |
---|---|---|---|
Packaging Details : | As per customer's requests | Delivery Time : | 35-45days |
Payment Terms : | L/C, T/T, D/A, D/P | Supply Ability : | 2000PCS/days |
Place of Origin: | CHINA,GuangDong | Brand Name: | FUNPACK |
---|---|---|---|
Certification: | CE ROHS | Model Number: | 605056 |
Detail Information |
|||
Pack Configuration: | 1S1P | Typical Voltage: | 3.8V |
---|---|---|---|
Charge Cutoff Voltage: | 4.35V | Minimal Capacity(Cmin): | 2570mAh |
Initial Resistance: | ≤ 220mΩ | Allowable Humidity Range: | 65±20% |
RT Cycle Life: | 500 Cycles | ||
High Light: | 3.8V Security Alarm System Battery,Polymer Security Alarm System Battery,2570mAh Lithium ion Polymer Battery |
Product Description
Product Description:

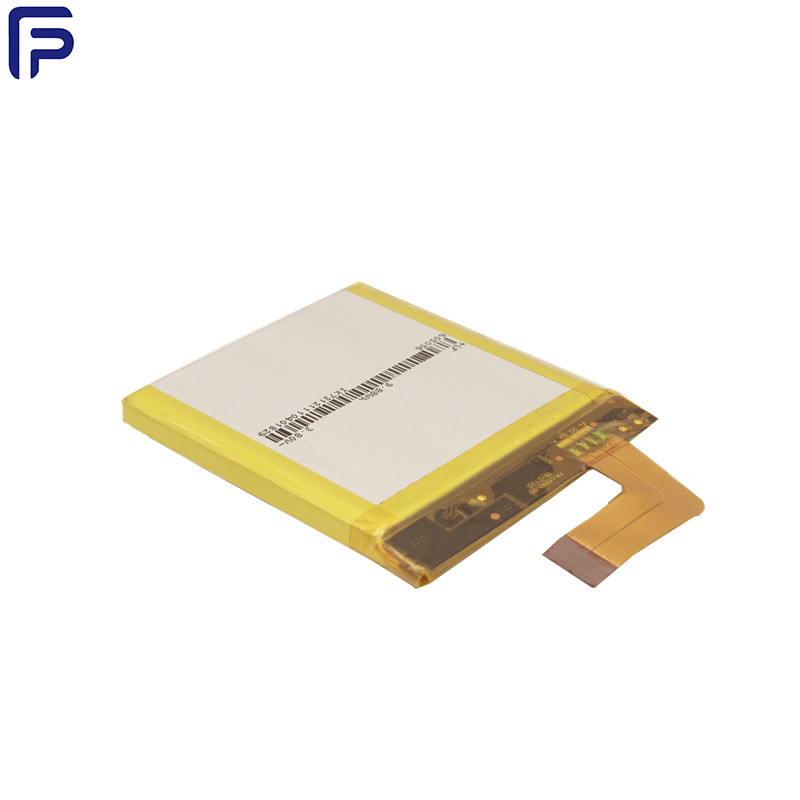

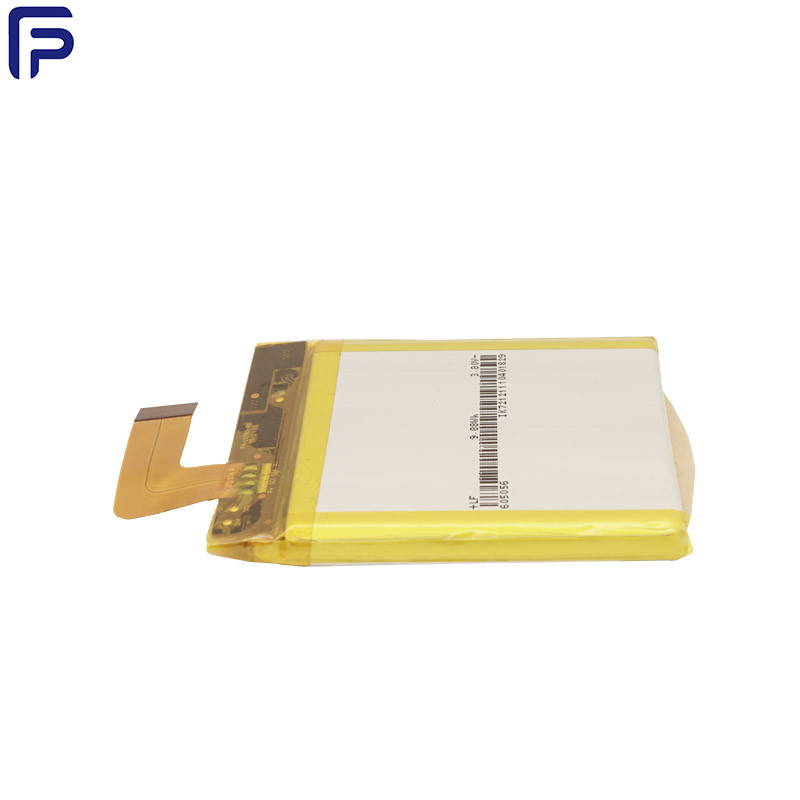

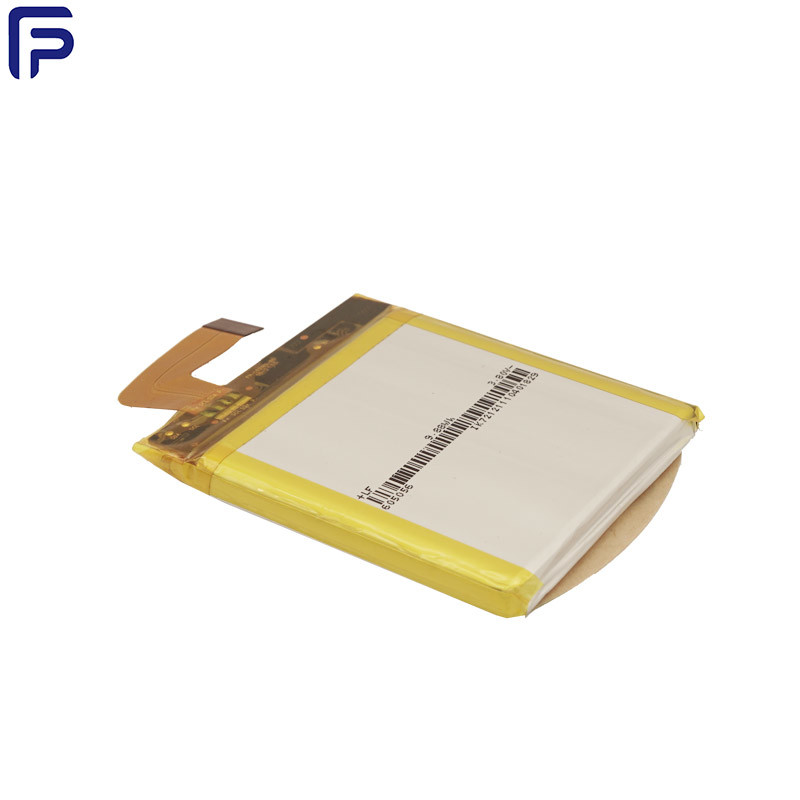

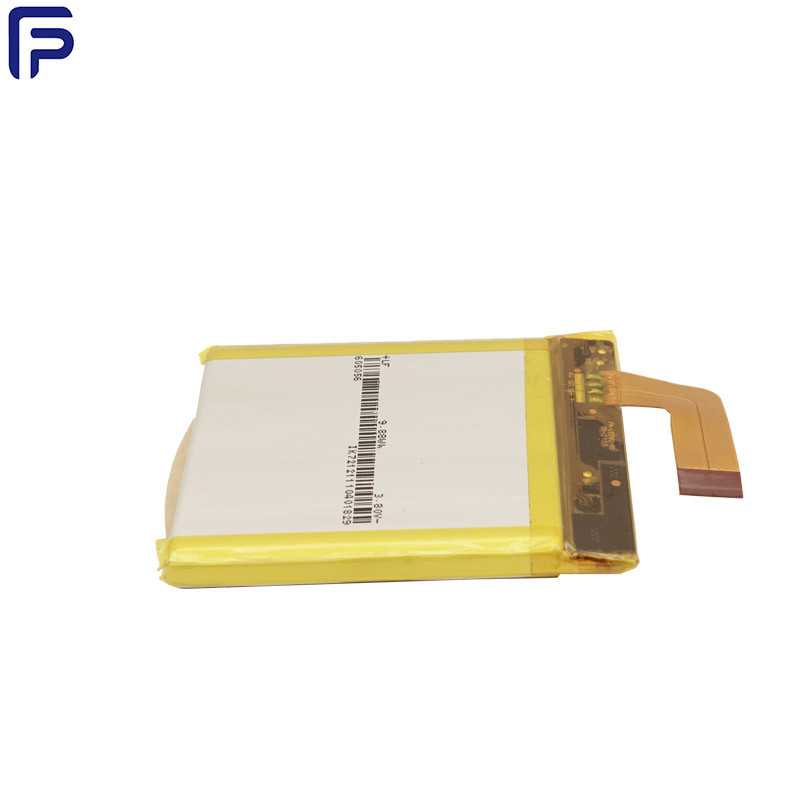

This is our newly designed polymer battery pack. With the latest structural design, the battery capacity of 2570mAh
is made in a very small size, which is suitable for the internal layout of various small-size electronic products.
Product Parameters:
Item | Specification | |
Pack Configuration | 1 Series 1 parallel | |
Minimal Capacity(Cmin) | 2570mAh | |
Typical Capacity | 2640mAh | |
1C discharge Capacity | 720mAh/2.66Wh | |
Typical Voltage | (3.8*1S1P) V | |
Charge Cutoff Voltage | (4.35*1S1P) V | |
Discharge Cut-off Voltage | (3.0*1S1P)V | |
RT Cycle life | 500 cycles | |
Pack Weight | ~48g | |
Initial resistance | ≤ 220mΩ | |
Allowable Humidity Range | 65±20% | |
Pack Voltage (V) (as of shipment, Alternative) | 3.78~3.98V | |
size | 50*60.8*6.93mm | |
Charge/Discharge | Cell Surface Temperature | Charge Current and Voltage |
Charge | <-10℃ or >60℃ | Charging prohibited |
-10℃ to 0℃ | ≤0.02C CC to 4.2V then CV to 0.02Cmin | |
0℃ to 20℃ | ≤543mA CC to 4.35V then CV to 0.02Cmin | |
20℃ to 45℃ | ≤0.5C CC to 4.35V then CV to 0.02Cmin | |
45℃ to 60℃ | ≤0.5C CC to 4.2V then CV to 0.02Cmin | |
Discharge | -20 to 60℃ | 1C max discharge to 3.0V |
Storage Temperature | -20 to 45℃ | 1month recovery≥85% |
-20 to 35℃ | 6months recovery≥85% | |
-20 to 25℃ | 12months recovery≥85% |
Main Applications:
Telecommunications,Portable equipment, Portable Devices, Illuminate Devices, Other toys, such as: cellular phone,
cordless phone, digital camera, portable DVD, portable television, GPS, PDA, PMP, PSP, portable medical device,
instrument and apparatus, miner lamp, searchlight, lighting devices, emergency light.e cigarette, mc models, power tools.
Widely applied in POS system, Solar supply system, electric tools, household,appliance and emergent device area,
electric bikes, Laptop, camcorder, Military equipment, IR telescope, Medical devices.
FAQ:
Q1: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Customized is available.
Q2: What about the lead time?
A: Sample needs 7-12 days, mass production time needs negotiation.
Q3: How do you ship the goods and how long does it take to arrive?
A: We usually ship by JEC. It usually takes 13-15 days to arrive. Airline and sea shipping also optional.
Q4: How to proceed an order?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.
Q5: Is it OK to print my logo on product?
A: OK, Need customer provide their packaging or we make neutral packaging.
Q6: Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us
or tell us in your email so that we’ll regard your inquiry priority.
