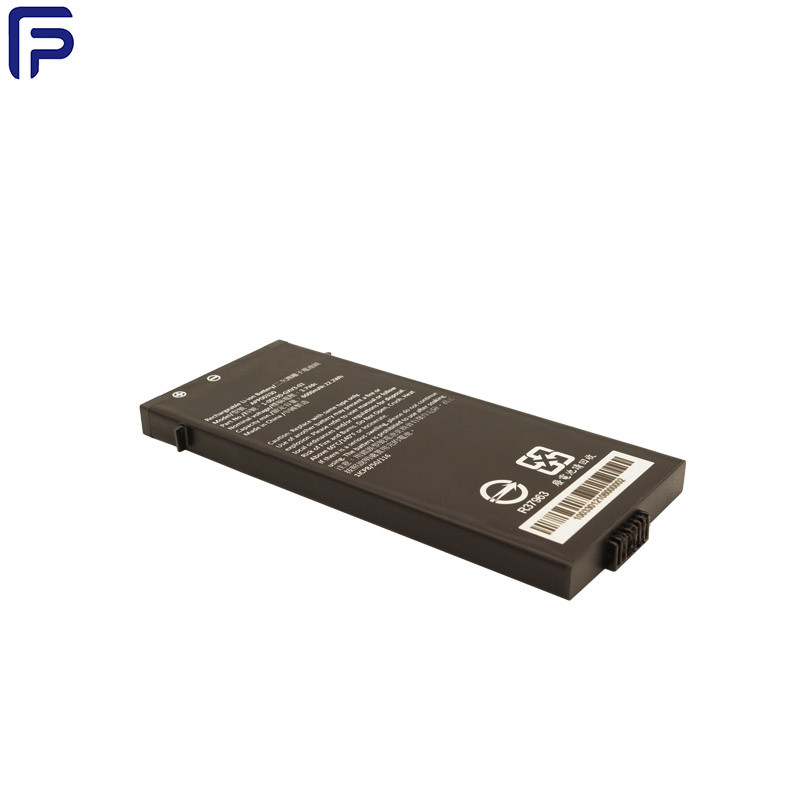

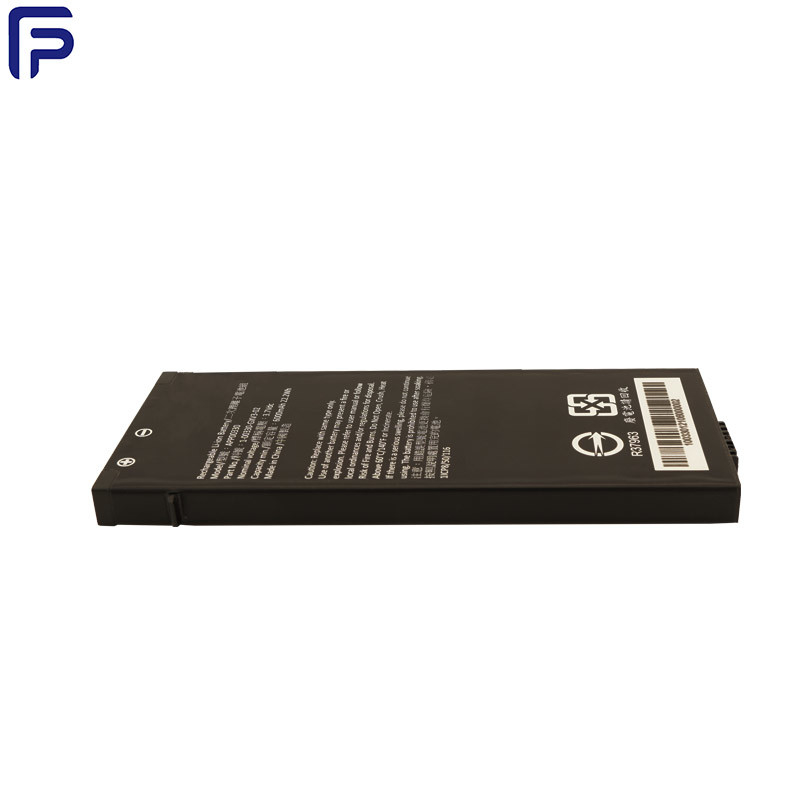

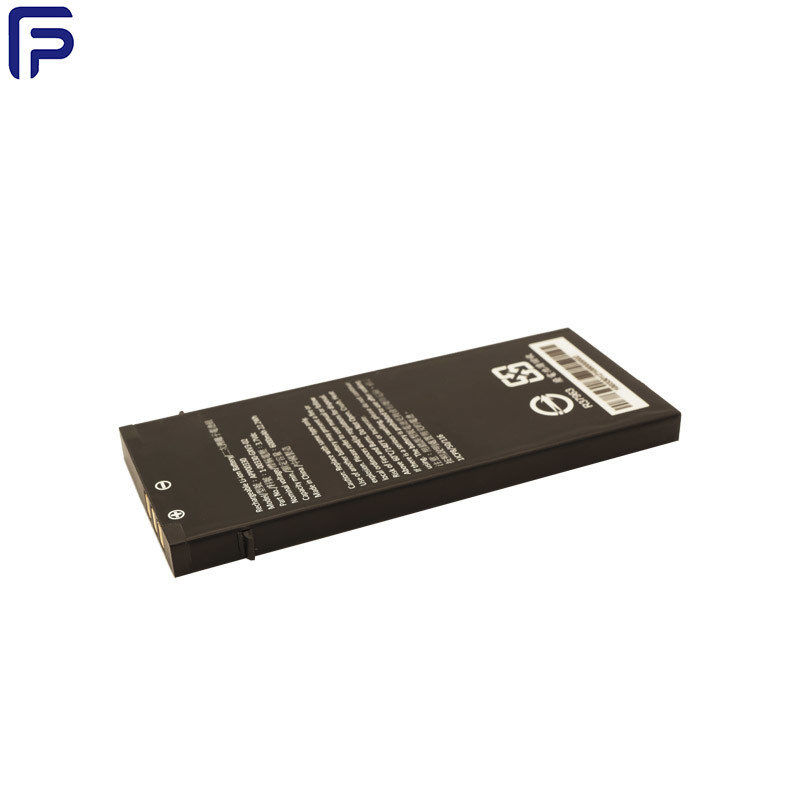

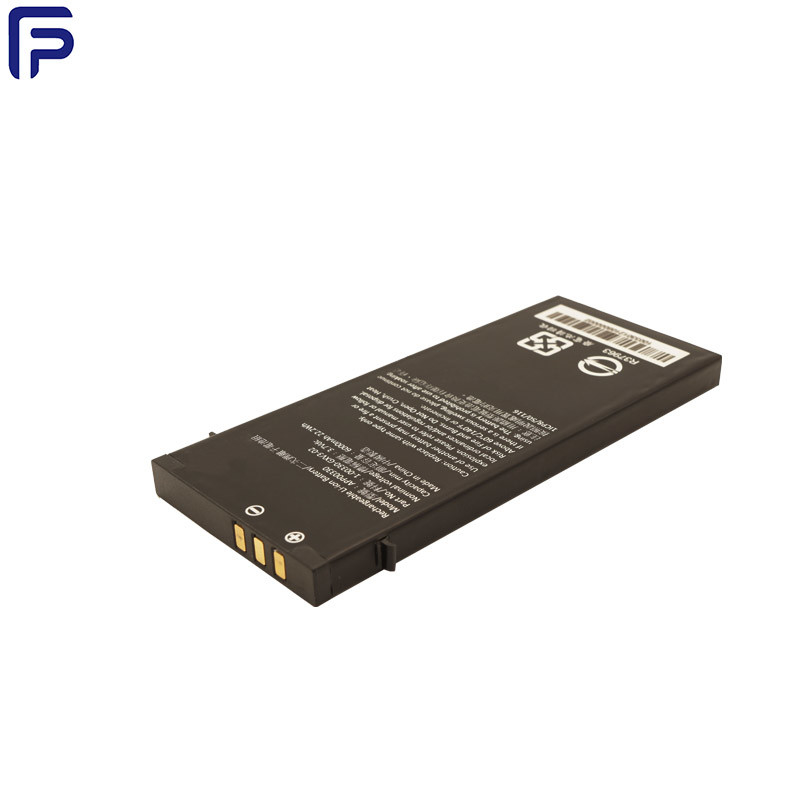

3.7V Rechargeable Lithium Ion Battery Pack 7800mAh 8030mAh With PCB
Contact Person : YI QUAN
Phone Number : 13631634942
Whatsapp : +8613662635407
Minimum Order Quantity : | 10000PCS | Price : | Negotiated The Price |
---|---|---|---|
Packaging Details : | Customer requirements | Delivery Time : | 30-45 work days |
Payment Terms : | T/T, D/P, D/A, L/C | Supply Ability : | 1500PCS /Day |
Place of Origin: | CHINA,GuangDong | Brand Name: | FUNPACK |
---|---|---|---|
Certification: | LU ROHS | Model Number: | L28022 |
Detail Information |
|||
Battery: | Li-ion Polymer Battery | Vlotage: | 3.7V |
---|---|---|---|
Capacity: | 6000mAh | Lnternal: | <100mΩ |
Shipment Vlotage: | 3.815V~3.98V | NTC: | Rv:100K 1% Bv:4250 |
Cell Weight: | 130g | Size: | 120.5*52*8.6mm |
High Light: | Lithium Ion Polymer Rechargeable Battery 3.7V,Lithium Ion Polymer Rechargeable Battery 6000mAh,Wearable Battery Pack ODM |
Product Description
Deep cycle 3.7V 6000mAh Lithium ion Polymer Battery For Smart Wearables
Features:
lithium-ion cells with the market’s highest energy density.
Product materials can be customized according to customer requirements.
Direct battery factory supply keep high end quality and stable performance.
Item | Specification |
Battery Pack Type | 1S1P Removable |
Capacity | 6000mAh(min) |
Standard Current | 1200mA (0.2C |
Maximum Charging Current | |
Charge current 4.2V@ 0℃ ~ 15℃, cut off 120mA Maintenance trigger voltage: 4.0V | 1200mA (0.2C) |
Charge current 4.2V@15℃ ~ 45℃, cut off 120mA Maintenance trigger voltage: 4.0V | 3000mA (0.5C) |
Charge current 4.1V@45℃ ~ 60℃, cut off 120mA Maintenance trigger voltage: 3.9V | 1200mA (0.2C) |
Charge current 3.0V@ 0℃ ~ 45℃, cut off 120mA Maintenance trigger voltage: 3.0V | 300mA (0.05C) |
Maximum Discharging Current*c*d | |
Discharge Current – @ -20℃ ~ 0℃ | 1200mA (0.2C) |
Discharge Current – @ 0℃ ~ 60℃ | 6000mA(1.0C) |
Nominal Voltage | 3.7V |
Cut-off Voltage | |
Discharge End of Voltage for Device set up | 3.2V ~ 3.4V |
End of Voltage (Discharge) | 3.0V |
Cycle life | After 500 cycles (Under 23±2 ℃) |
Storage Conditions | |
When stored within 1 Month (RSOC 50%) | -20~ +45℃ |
When stored within 3 Months (RSOC 50%) | -20~ +35℃ |
When stored within 12Months (RSOC 50%) | -20~ +25℃ |
Storage Conditions | 60℃±3℃ |
Impedance | ≤100mΩ |
Weight | ≤ 130g |
Shipment Voltage | 3.815V ~ 3.98V |
NTC |
Rv:100K 1% Bv:4250 |
PCM:
Item | Specification | Parameter | Unit |
Operating Temperature | 25 | ℃ | |
Over Charge Voltage Protect | Detect Voltage | 4.28±0.02 | V |
Delay Time | 0.8~1.2 | Sec | |
Release | 4.28±0.02 | V | |
2nd Over Charge Voltage Protect | Detect Voltage | 4.28±0.015 | V |
Delay Time | 0.7~1.3 | Sec | |
Release | 4.28±0.015 | V | |
Over Discharge Voltage Protect | Detect Voltage | 2.8±0.035 | V |
Delay Time | 14~26 | mSec | |
Release | 2.8±0.035 | ---- | |
2nd Over Discharge Voltage Protect | Detect Voltage | 2.4±0.035 | V |
Delay Time | 14~26 | mSec | |
Release | 2.4±0.05 | ---- | |
Over Charge Current Protect | Detect Current | Typ6.0(4.75~7.27) | A |
Delay Time | 11~21 | mSec | |
Release | Disconnect Charger | --- | |
2nd Over Charge Current Protect | Detect Current | Typ25(2.17~28.21) | A |
Delay Time | 11~21 | mSec | |
Release | Disconnect Charger | --- | |
Over Discharge Current Protect | Detect Current | Typ8.0(6.34~9.7) | A |
Delay Time | 8.0~16 | mSec | |
Release | Remove R-Load or Connect Charger | --- | |
2nd Over Discharge Current Protect | Detect Current | Typ14(10.5~17.5) | A |
Delay Time | 2.1~3.9 | mSec | |
Release | Remove R-Load or Connect Charger | --- | |
Short Circuit | Detect Current | External Short | A |
Delay Time | 175~400 | μSec | |
Release | Remove R-Load or Connect Charger | --- | |
OTP (Charge) | Detect Current | 60 | ℃ |
Delay Time | 338 ~ 702 | msec | |
Release | 55 | ℃ | |
OTP (Discharge) | Detect Current | 65 | ℃ |
Delay Time | 338~702 | msec | |
Release | 60 | ℃ | |
UTP (Charge) | Detect Current | 0 | ℃ |
Delay Time | 338 ~ 702 | msec | |
Release | 5 | ℃ | |
Power Consumption | |||
Operating Mode | 12.0 (max) | μA | |
Power Down Mode | 0.5(max) | μA |
Main Applications :
It is suitable for automobile remote control, electronic dictionary, electronic watch, electronic toys, electronic clock, electronic
health scale, blood glucose meter, electronic thermometer, calculator, wrist lamp, neck lamp, pedometer,Smart speaker
electronic dictionary Intelligent translator and other small household appliances.
FAQ:
Q1: Are you Factory,How long to make Battery Pack?
A: We are the Professional Battery Factory,we Need 30day around if we don't have stock of that model.Because need
strictly test and high temperature,high voltage life aging as well in every single Battery.That will takes a fixed date.
Q2: What will be the packing?
A: We are using blister pallet packing in each battery pack. and then fold all packing in one ctn.
Q3: Can the connectors or PCB be customized?
A: Yes, we can choose the right connector according your requirement.Or help to match your device.
Q4: Is OEM/ODM battery pack available?
A: Yes, OEM/ODM battery packs are warmly welcome. Professional engineers provide technical support.
Q5: Do you have the documents required for battery shipments?
A: Yes, we have MSDS, UN38.3, etc. and other special files needed for shipments to some regions can also be secured.
