7.6V 4590mAh Lithium Ion Polymer Rechargeable Battery Volt Battery

Minimum Order Quantity : 10000PCS Price : Negotiated The Price
Packaging Details : Customer requirements Delivery Time : 30-45 work days
Payment Terms : T/T, D/P, D/A, L/C Supply Ability : 20000PCS /Day
Place of Origin: Battery CELL made in CHINA Brand Name: FUNPACK
Certification: CE ROHS Model Number: 765965-5

Detail Information

Pack Configuration: 2S1P Typical Voltage: 7.6V
Charge Cut-off Voltage: 8.7V Discharge Cut-off Voltage: 6.0V
Initial Resistance: ≤ 240mΩ Allowable Humidity Range: 65 ± 20% RH
Pack Voltage(as Of Shipment): 7.7V ~ 8.04V Size: 59.30*16.0*70.4*65mm
High Light:

4590mAh Lithium Ion Polymer Rechargeable Battery

,

7.6Volt Lithium Ion Polymer Rechargeable Battery

,

Rechargeable 7.6 Volt Battery

Product Description

4590mAh 7.6V With PCB Safety Equipment Battery Lithium-ion Polymer Rechargeable Battery



Features

Worldwide approvals and certification of safety standards

No development costs, fast time-to-market

Life expectancy: Up to 80% of initial capacity after 500 cycles

Smart batteries with numerous features according to the SMBus specification

Rechargeable batteries have built-in high quality PCB board,
thermal protectors and circuit breakers,
effectively avoiding the over-charge, and short circuit.
High Capacity with Small Size


Product Parameters:

Item Specification
Model Name the Lithium-ion Polymer (“LIP”) rechargeable battery
Pack Configuration 2 Series 1 parallel (2S1P)
*Minimal Capacity(Cmin) 4500mAh(2S1P)
Typical Capacity 4590mAh(2S1P)
*Typical Voltage 7.6V
Charge Cut-off Voltage 8.7V
Discharge Cut-off Voltage 6.0V
Charge Current (CC=constant current charge;CV=constant voltage charge) Ambient Temperature
0℃~10℃
10℃~45℃
45℃~60℃
Discharge Current Operational Discharging Temperature: -20℃~60℃
Storage Temperature -20°C~45°C
-20°C~35°C
-20°C~25°C
After ~50% charged Cell are stored at 35°C for 3months or RT for 12months or 45°C for 1 month,measure the recovered capacity with Standard charge/discharge method @ RT environment.Recovery capacity shall ≥85% of initial capacity.
*Initial Resistance ≤ 240mΩ
Allowable Humidity Range 65 ± 20% RH
*Pack Voltage(as of shipment) 7.7V ~ 8.04V
Cycle Life Fully charge battery standard charge method and discharge battery with 0.5C current until battery voltage reaches 6.0V. Repeat the charge/discharge cycle stated above, record the remained capacity of the 500th cycles.
Size 59.30*16.0*70.4*65mm


Main Applications :

Mainly used for security equipment, Network signal tester, Medical device, LED lighting, Emergency lighting, medical equipment, Portable electronic products, Laptop, Cordless drill, power tools, street lights, Electric sweeper, body care meter, communication device, consumer electronic instrument and so on.



Main Functions:

Lithium Polymer batteries make it possible for small objects to achieve intelligence. Bendable Lithium Polymer cells

open up new applications for lithium-ion batteries. For small, thin and flexible devices , Lithium Polymer battery can

provide a certain amount of electric energy to drive their functions of signal transmission or data acquisition. And Lithium

Polymer secondary battery allows charging and discharging cycle, broadening the servicing life of electronics products.

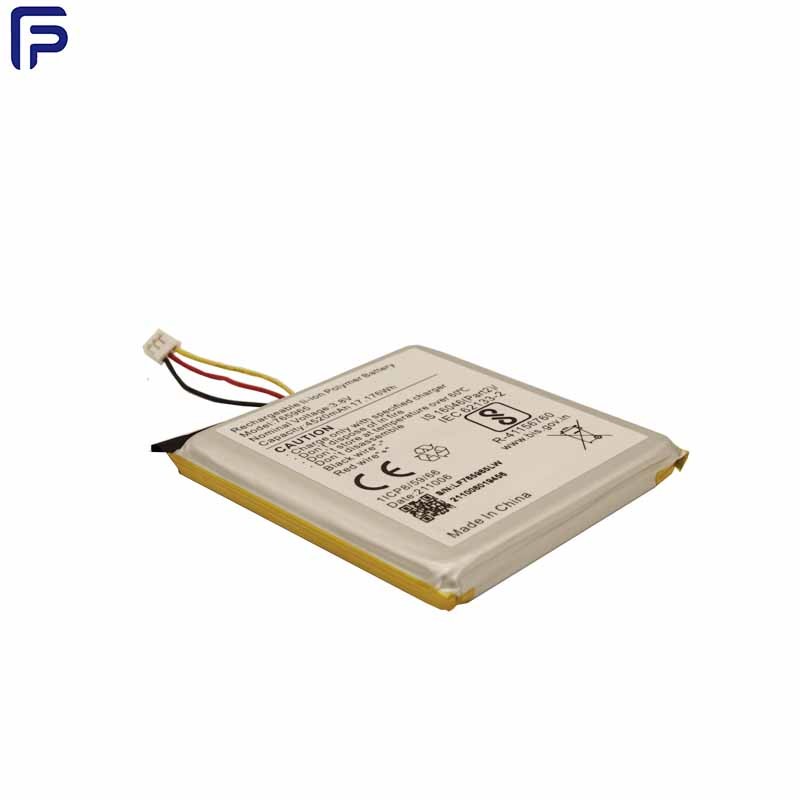

7.6V 4590mAh Lithium Ion Polymer Rechargeable Battery Volt Battery 0

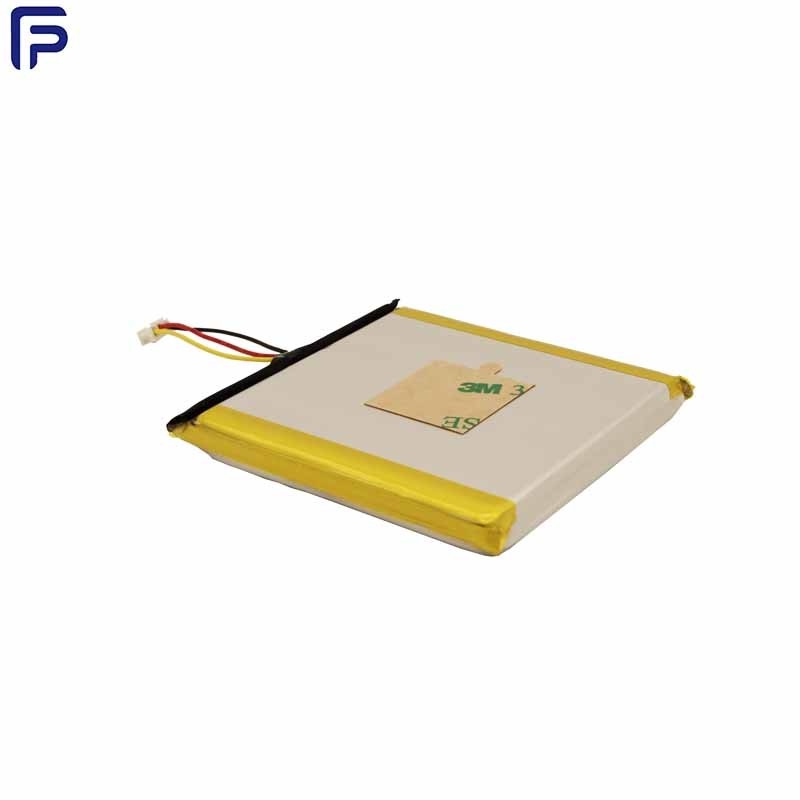

7.6V 4590mAh Lithium Ion Polymer Rechargeable Battery Volt Battery 1

FAQ:

Q1: Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Customized is available.
Q2: What about the lead time?
A: Sample needs 7-12 days, mass production time needs negotiation.
Q3: How do you ship the goods and how long does it take to arrive?
A: We usually ship by JEC. It usually takes 13-15 days to arrive. Airline and sea shipping also optional.
Q4: How to proceed an order?
A: Firstly let us know your requirements or application. Secondly we quote according to your requirements or our

suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly we arrange the production.
Q5: Is it OK to print my logo on product?
A: OK, Need customer provide their packaging or we make neutral packaging.
Q6: Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us

     or tell us in your email so that we’ll regard your inquiry priority.
