Rechargeable Track Outdoor Liquid Cooled Battery LiFePO4 Battery Module

Minimum Order Quantity : 1pcs Price : Negotiated The Price
Packaging Details : Customer Requirements Delivery Time : 30-45 work days
Payment Terms : L/C, D/A, D/P, T/T Supply Ability : 100PCS/Month
Place of Origin: CHINA, GuangDong Brand Name: FUNPACK
Certification: CE ROHS UN38.3 Model Number: TRACK-1500-372

Detail Information

Cell Type: LFP280 Group Mode: 1P416S
High-voltage Box: PDU-1500-280-F1 Rated Voltage: 1331.2V
Rated Capacity: 372.736kWh Rated Charge And Discharge Power: 186kW
Rated Charge And Discharge Current: 140A Maximum Continuous Charging And Discharging Current: 280A
Cycle Life: ≥6000cycles(0.5,25ºC80%EOL90%DOD) Operating Temperature: Charge:0-55ºCdischarging:-20~55ºC
Recommended Storage Temperature: 15~35ºC Maximum Allowable Altitude: 4000m(over 2000 M,it Will Operate In Derating)
Self Power Consumption/month: ≤3% Dimensions(WXDXH): 1300±5mm1300±5mm*2300±5mm
High Light:

Track Outdoor Liquid Cooled Battery ROHS


Rechargeable LiFePO4 Battery Module


Liquid cooling LiFePO4 Battery Module

Product Description

Product Description:

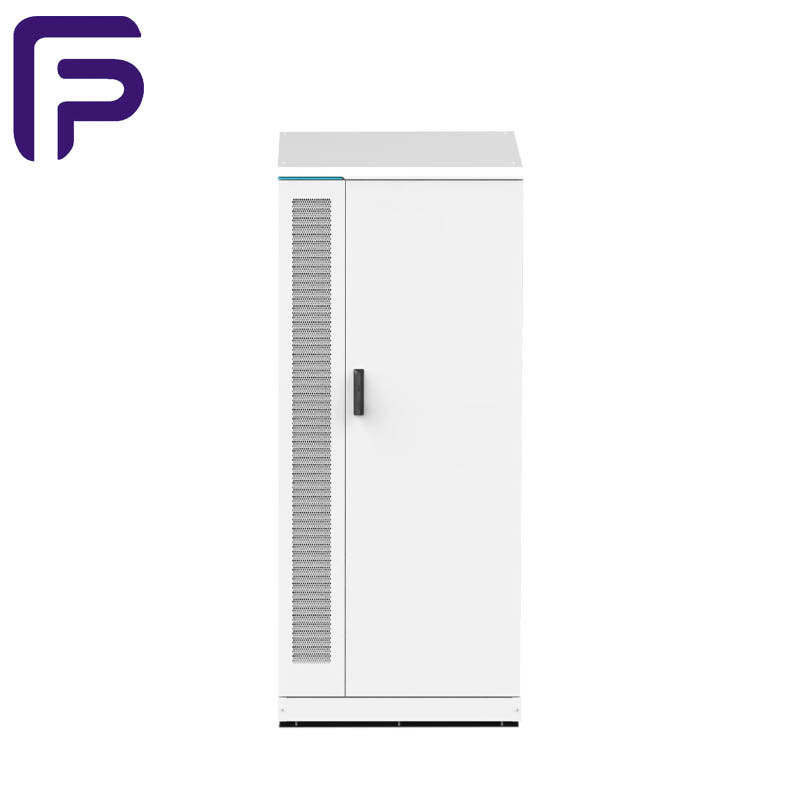

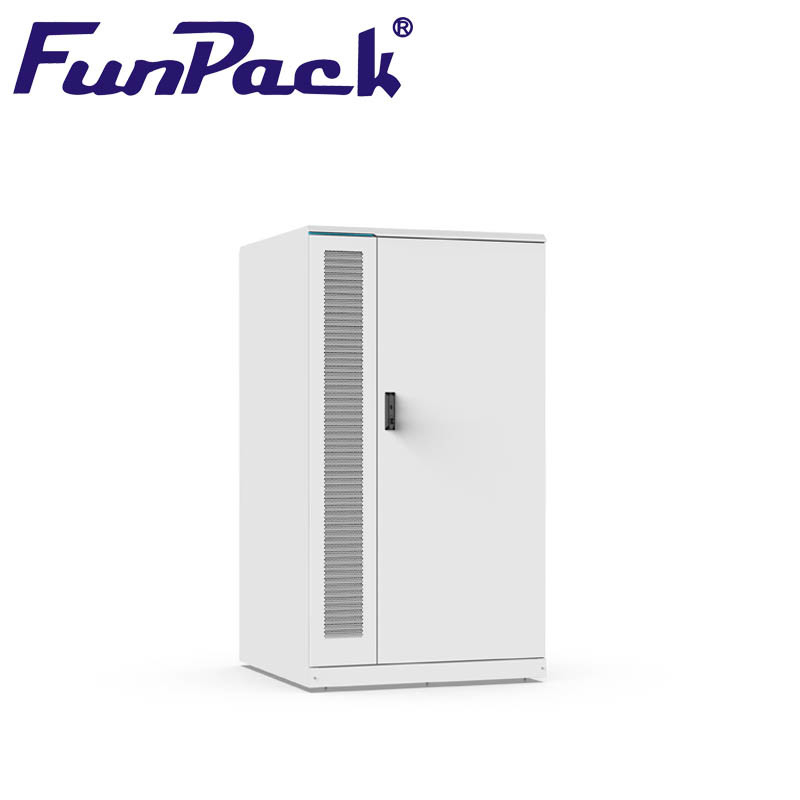

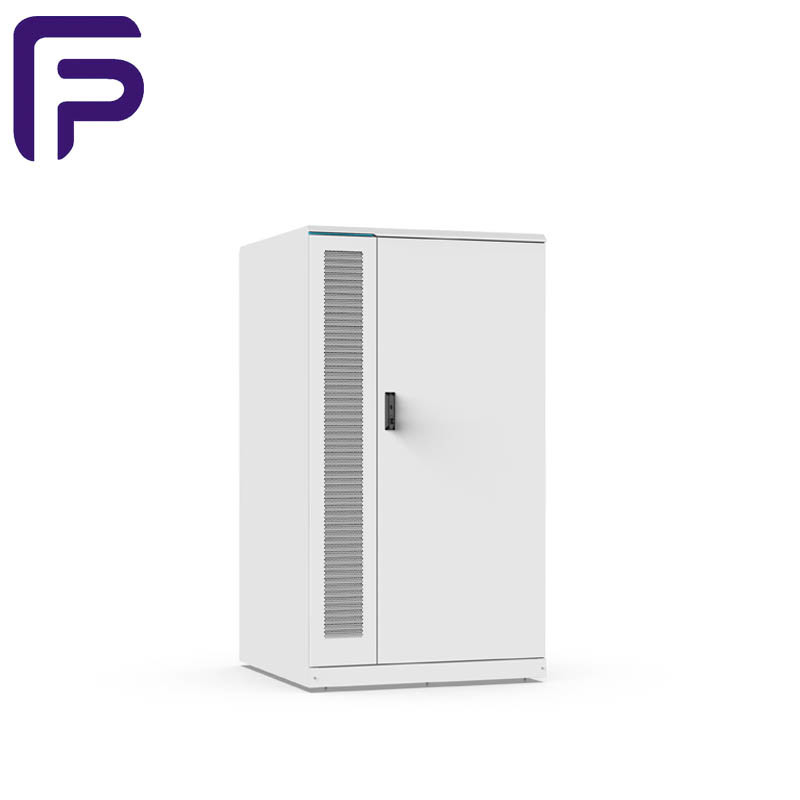

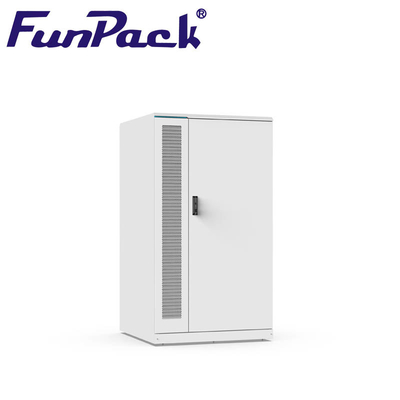

Rechargeable Track Outdoor Liquid-Cooled Battery LiFePO4 Battery Module

Product Description Of Liquid-Cooled Battery LiFePO4 Battery:

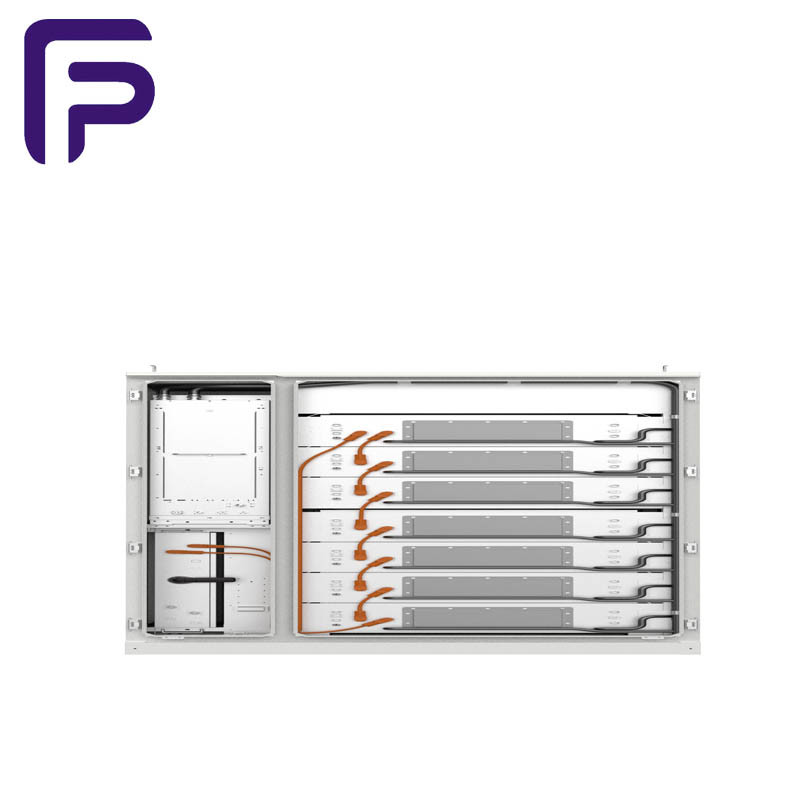

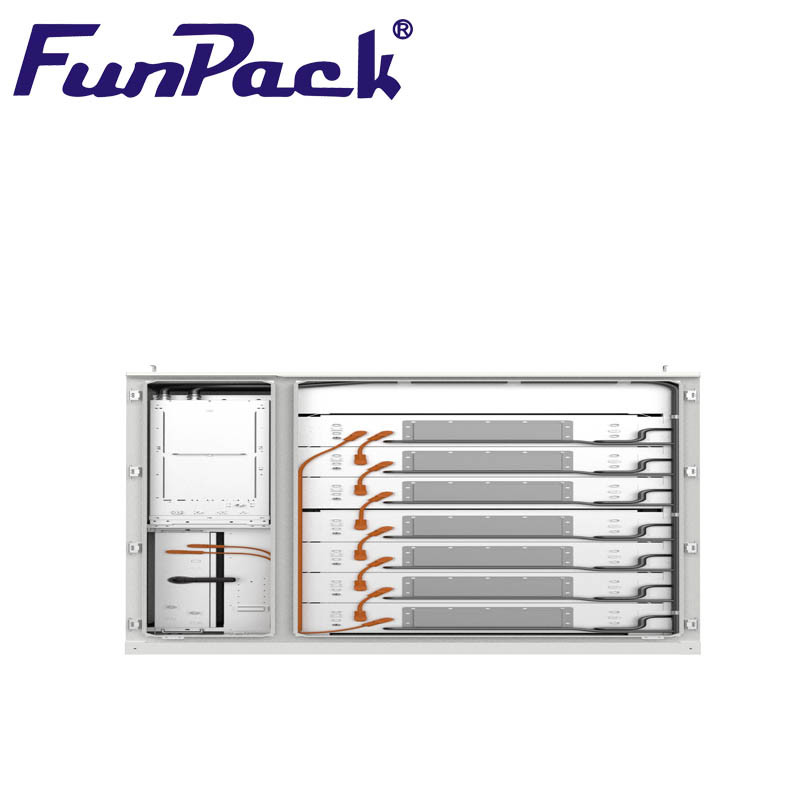

The TRACK liquid cooled battery system adopts a modular design concept, consisting of a lithium iron phosphate battery module, BMS, liquid cooled air conditioning, fire protection system, etc. The efficient liquid cooled battery module and heat dissipation design bring ultra-high energy density, while the temperature difference is less than 3 ° C. The integrated cabinet design is more flexible compared to container type, greatly simplifying transportation and on-site assembly work. It can be connected to PCS separately or used in parallel.


Product Basic Information Of Liquid-Cooled Battery LiFePO4 Battery:

Model TRACK-1500-372
Cell type LFP280
Group mode 1P416S
High-voltage box PDU-1500-280-F1
Rated Voltage 1331.2V
Voltage range 1206.4V~1456V
Rated capacity 372.736kWh
Rated charge and discharge power 186kW
Rated charge and discharge current 140A
Maximum continuous charging and discharging current 280A
Charge and discharge efficiency ≥95%
Battery cluster internal resistance ≤20mΩ
Cycle life ≥6000cycles(0.5,25ºC80%EOL90%DOD)
Operating Temperature Charge:0-55ºCdischarging:-20~55ºC
Recommended storage temperature 15~35ºC
Relative humidity 0~90%RH
Maximum allowable altitude 4000m(over 2000 m,it will operate in derating)
Self power consumption/month ≤3%
Cooling method Liquid cooling
Manufacturing process Laser welding
Communication mode CAN/RS485/dry contact
Dimensions(WXDXH) 1300±5mm1300±5mm*2300±5mm

Main Applications :

Widely used in various energy storage scenarios such as new energy consumption, peak shaving and valley filling, emergency power reserve, and dynamic capacity expansion

Rechargeable Track Outdoor Liquid Cooled Battery LiFePO4 Battery Module 4Rechargeable Track Outdoor Liquid Cooled Battery LiFePO4 Battery Module 5


Q1. Are you factory?

A: Yes, we are professional manufacturer for polymer batteries since 2017.

Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% balance payment before shipment. We'll show you the photos of the products and packages before shipm

Q3: Can I get the pre-production sample?
A: Yes, we will send you sample for approval first, after you confirm, then we will start mass production order.
