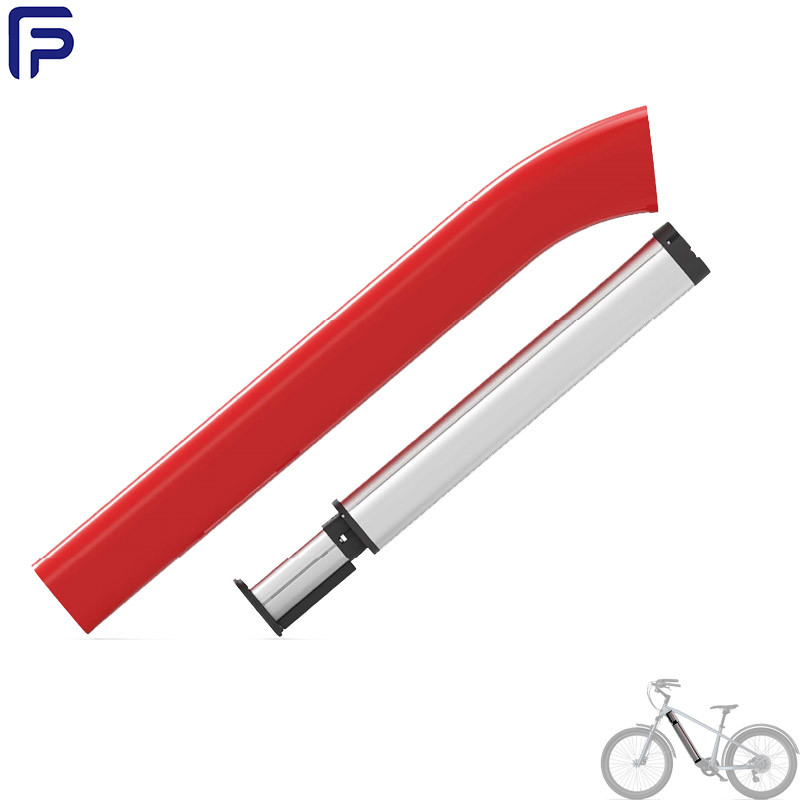

NCM Electric Bicycle Battery 36V 14Ah With 500-1000 Cycles Life

Minimum Order Quantity : 300PCS Price : Negotiated The Price
Packaging Details : Customer Requirements Delivery Time : 30-45 work days
Payment Terms : T/T, D/P, L/C, D/A Supply Ability : 800PCS /Day
Place of Origin: CHINA,GuangDong Brand Name: FUNPACK
Model Number: FP-QT-4C

Detail Information

Certification: MSDS/UN38.3/CE/ROSH/UL Type: Lithium Battery
Application: Electric Bicycle Standard Voltage: 36V
Cycle Life: 500~1000 Cycles Max Capacity: 14Ah Or Customized
Cell: LG/Local Cell/Panasonic/Samsung OEM: Acceptable
High Light:

1000Cycles Electric Bicycle Battery

,

500Cycles Electric Bicycle Battery

,

NCM 36V Bicycle Battery

Product Description

NCM Rechargeable 10S4P 36V 14AH Electric Bicycle Battery Pack 18650 Cells



Quick Details

Standard Voltage:36V                                                  Cycle life: 500~1000 cycles

Max Capacity:14Ah                                                       Model Cell: 40pcs  18650
Dimension: 544*64*67mm(Max)                                   Warranty: 1 Year
Name: Lithium  Battery 36V 14Ah



Basic specification:

Item Specification
Cell 40pcs 18650
Battery model FP-QT-4C
Max capacity 36V14Ah
Charging port DC2.1 Opt.3Pin high current
Discharge port 2pin Opt.6Pin
LED indicator without
L*W*H 544*64*67mm



BMS

Item Content Criterion

OVC

Over charge detection voltage 4.250±0.050V
Detection delay time 1.0±0.3S
Over charge release voltage 4.150±0.050V

OVD

Over discharge detection voltage 2.700±0.080V
Detection delay time 1.0±0.3S
Over discharge release voltage 3.000±0.100V
Rated operational current ≤20A

OCD

Primary over current detection current 50±5A
Primary detection delay time 800mS-1200mS
Secondary over current detection curren 100±10A
Secondary detection delay time 50mS-200mS
Short protection Detection condition >200A, 200uS-300uS
Protection yes Exist
Protective release condition Disconnect short circuit
Charging management Charging overvoltage protection voltage 43.5±0.4V
Rated charging current 3A
Software overcharges 4±0.2A
Detection delay time 300mS-600mS
Temperature protection Charging high temperature protection temperature 50±4℃
Charging protection recovery temperature 47±4℃
Discharge high temperature protection temperature 70±4℃
Discharge protection recovery temperature 55±4℃
Low temperature protect temperature of charging 0±4℃
Low temperature recovery temperature of charging 5±4℃
Interior resistance Main loop electrify resistance ≤60mΩ
The static current Since the power consumption ≤60.0uA
NTC YES Exist 10K±1% B3435±1%



NCM Electric Bicycle Battery 36V 14Ah With 500-1000 Cycles Life 0

NCM Electric Bicycle Battery 36V 14Ah With 500-1000 Cycles Life 1

OEM/ODM Service:

If you want to display your own brand logo in products, bags, labels or anywhere.

Our OEM and ODM services are ready to do it.



Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet



Delivery Time:

- Material Preparation Time: 7-15 days (or inventory)

- Production & Assembly Time 3-10 days

- Testing & Packaging Time: 2-10 days

- Total Delivery Time: 30-45days

- The faster delivery could be negotiable.
