24V14AH Arious Certifications (UL RoHS UN CE) Electric Bicycle Battery Pack Ebike Lithium Ion cell

Minimum Order Quantity : 300PCS Price : Negotiated The Price
Packaging Details : Customer Requirements Delivery Time : 30-45 work days
Payment Terms : T/T, D/P, L/C, D/A Supply Ability : 800PCS /Day
Place of Origin: CHINA,GuangDong Brand Name: FUNPACK
Model Number: FP-QT-2C

Detail Information

Certification: CE/ROSH/MSDS/UN38.3/UL Type: Lithium Ion
Application: Electric Vehicles Voltage: 24V
Cycle Life: 400-800 Times Capacity: 14Ah Or Customized
Cell: Panasonic/LG/Local Cell/Samsung OEM: Supportable

Product Description

Fall Proof 36V28AH 48V21AH Electric Bicycle Battery Pack Ebike Lithium Ion cell



Quick Details

Voltage:24v                                                             Cycle life:400-800 times

Nominal Capacity:14Ah                                         Cell model:28pcs 18650
Size: 681*46*46mm(Max)                                      Warranty: 12 months
Type: Lithium Battery 24V14Ah

Can fit 6 mosfets controller PCB



Basic specification:

Item Specification
Cell 28pcs 18650
Battery model FP-QT-2C
Max capacity 24V 14AH
Charging port DC2.1 Opt.3Pin high current
Discharge port 2pin Opt.6Pin
LED indicator without
L*W*H 681*46*46mm



BMS

Item Content Criterion

OVC

Over charge detection voltage 4.250±0.050V
Detection delay time 1.0±0.3S
Over charge release voltage 4.150±0.050V

OVD

Over discharge detection voltage 2.700±0.080V
Detection delay time 1.0±0.3S
Over discharge release voltage 3.000±0.100V
Rated operational current ≤20A

OCD

Primary over current detection current 50±5A
Primary detection delay time 800mS-1200mS
Secondary over current detection curren 100±10A
Secondary detection delay time 50mS-200mS
Short protection Detection condition >200A, 200uS-300uS
Protection yes Exist
Protective release condition Disconnect short circuit
Charging management Charging overvoltage protection voltage 43.5±0.4V
Rated charging current 3A
Software overcharges 4±0.2A
Detection delay time 300mS-600mS
Temperature protection Charging high temperature protection temperature 50±4℃
Charging protection recovery temperature 47±4℃
Discharge high temperature protection temperature 70±4℃
Discharge protection recovery temperature 55±4℃
Low temperature protect temperature of charging 0±4℃
Low temperature recovery temperature of charging 5±4℃
Interior resistance Main loop electrify resistance ≤60mΩ
The static current Since the power consumption ≤60.0uA
NTC YES Exist 10K±1% B3435±1%

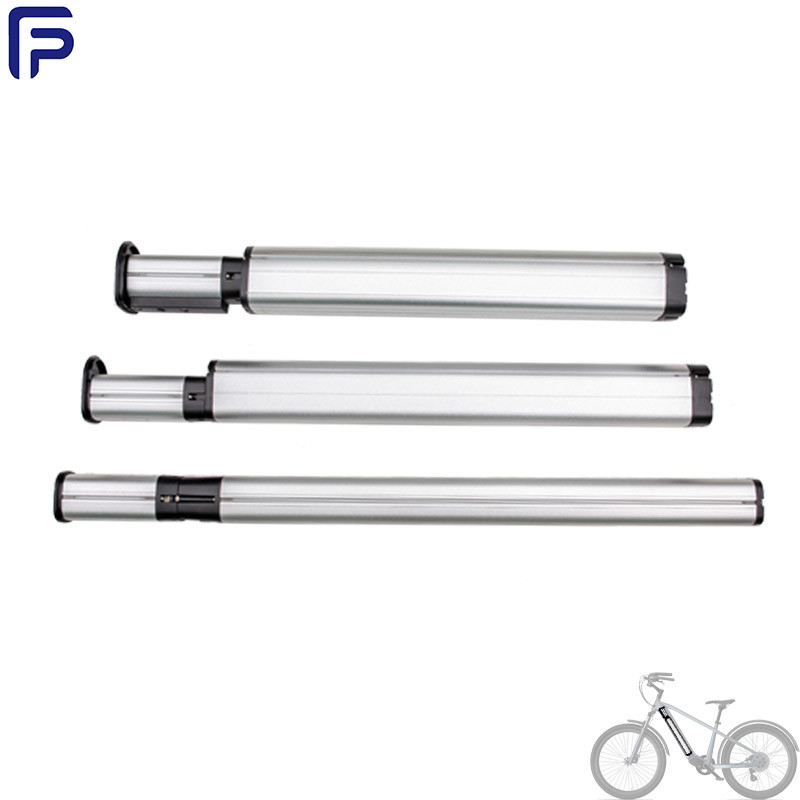

24V14AH Arious Certifications (UL RoHS UN CE)  Electric Bicycle  Battery Pack Ebike Lithium Ion cell 0

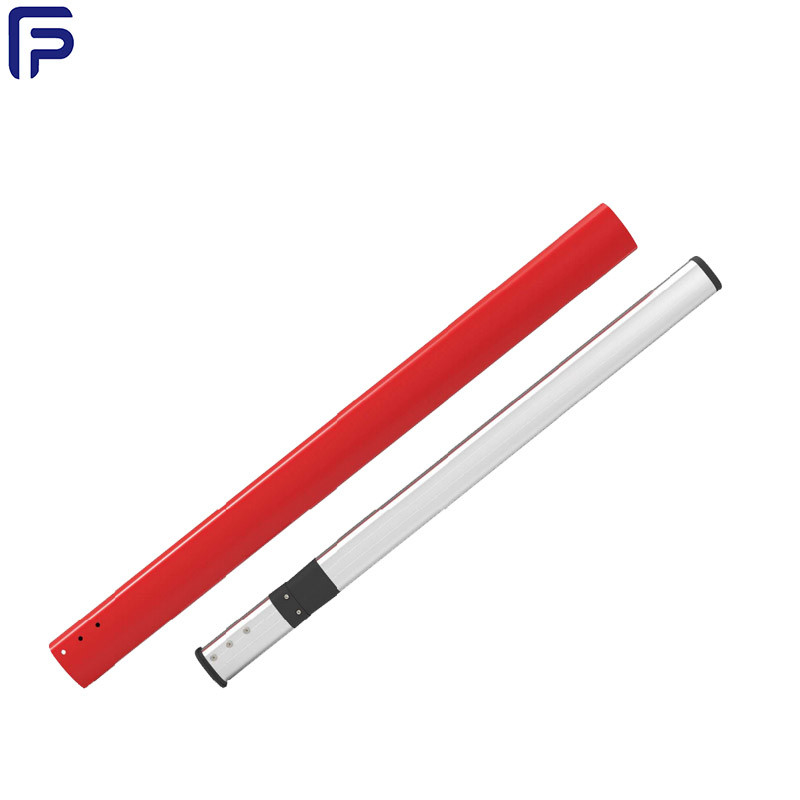

24V14AH Arious Certifications (UL RoHS UN CE)  Electric Bicycle  Battery Pack Ebike Lithium Ion cell 1

OEM/ODM Service:

Can support customers to customize their own brand logo.

Our OEM and ODM services are ready to do it.



Delivery Time:

- Material Preparation Time: 7-15 days (or inventory)

- Production & Assembly Time 3-10 days

- Testing & Packaging Time: 2-10 days

- Total Delivery Time: 30-45days

- The faster delivery could be negotiable.
