36V17.5AH OEM Rechargeable Electric Ebike Battery Pack Bicycle Lithium Ion Cells

Minimum Order Quantity : 300PCS Price : Negotiated The Price
Packaging Details : Customer requirements Delivery Time : 30-45 work days
Payment Terms : T/T, D/P, L/C, D/A Supply Ability : 800PCS /Day
Place of Origin: CHINA,GuangDong Brand Name: FUNPACK
Model Number: FP-JL-5U

Detail Information

Certification: CE/ROSH/MSDS/UN38.3 Type: Lithium Battery
Application: Electric Bike Voltage: 36V
Cycle Life: 500-800 Cycles Capacity: 16Ah~30Ah Or Customized
Cell: Panasonic/LG/Samsung/Local Cell OEM: Acceptable

Product Description

OEM 36V17.5AH Rechargeable Electric Ebike Battery Pack Bicycle Lithium Ion Cells



Quick Details

Voltage:36V                                                       Cycle life:500~800 cycles

Standard capacity:16Ah-30Ah                          Cell: 50PCS 18650
Dimension: 426*90*68mm(Max)                        Warranty: 12 months

Type: Lithium ion Battery 36V 17.5ah

Lithium-ion battery protection: short circuit protection, overcharge protection, over discharge protection, over current protection,

temperature protection, etc.



Basic specification:

Item Specification
Cell 50PCS 18650
Battery model FP-JL-5U
Max capacity 36V17.5AH
Charging port DC2.1 Opt.3Pin high current
Discharge port 6Pin
LED indicator single LED with three colours
L*W*H 426*90*68mm



BMS

Item Centont Criterion

OVC

Over charge detection voltage 4.250±0.050V
Detection delay time 1.0±0.3S
Over charge release voltage 4.150±0.050V

OVD

Over discharge detection voltage 2.700±0.080V
Detection delay time 1.0±0.3S
Over discharge release voltage 3.000±0.100V
Rated operational current ≤20A

OCD

Primary over current detection current 50±5A
Primary detection delay time 800mS-1200mS
Secondary over current detection curren 100±10A
Secondary detection delay time 50mS-200mS
Short protection Detection condition >200A, 200uS-300uS
Protection yes Exist
Protective release condition Disconnect short circuit
Charging management Charging overvoltage protection voltage 43.5±0.4V
Rated charging current 3A
Software overcharges 4±0.2A
Detection delay time 300mS-600mS
Temperature protection Charging high temperature protection temperature 50±4℃
Charging protection recovery temperature 47±4℃
Discharge high temperature protection temperature 70±4℃
Discharge protection recovery temperature 55±4℃
Low temperature protect temperature of charging 0±4℃
Low temperature recovery temperature of charging 5±4℃
Interior resistance Main loop electrify resistance ≤60mΩ
The static current Since the power consumption ≤60.0uA
NTC YES Exist 10K±1% B3435±1%

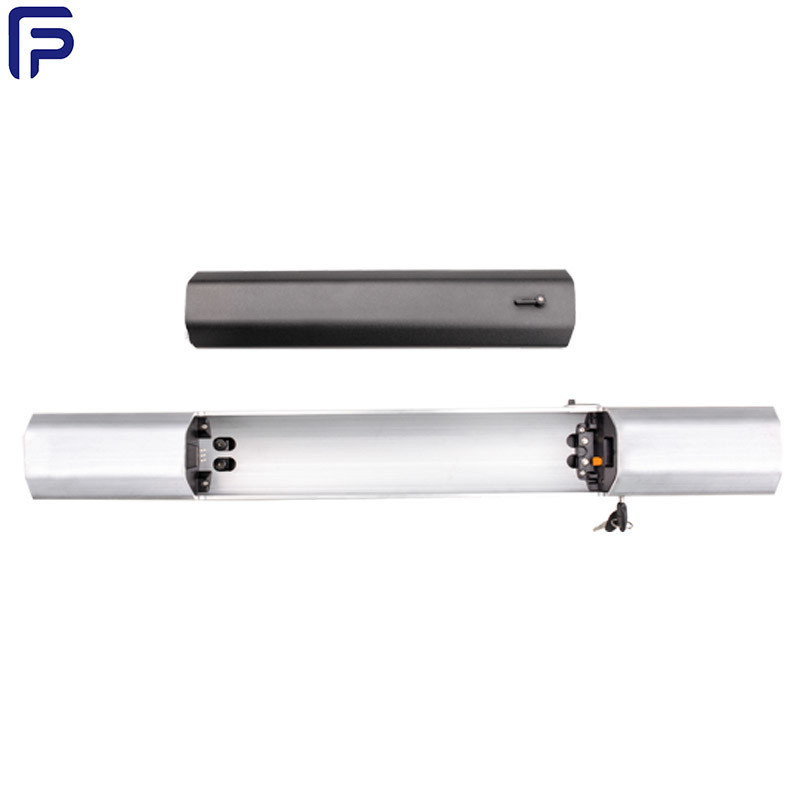

36V17.5AH OEM Rechargeable Electric Ebike Battery Pack  Bicycle  Lithium Ion Cells 0

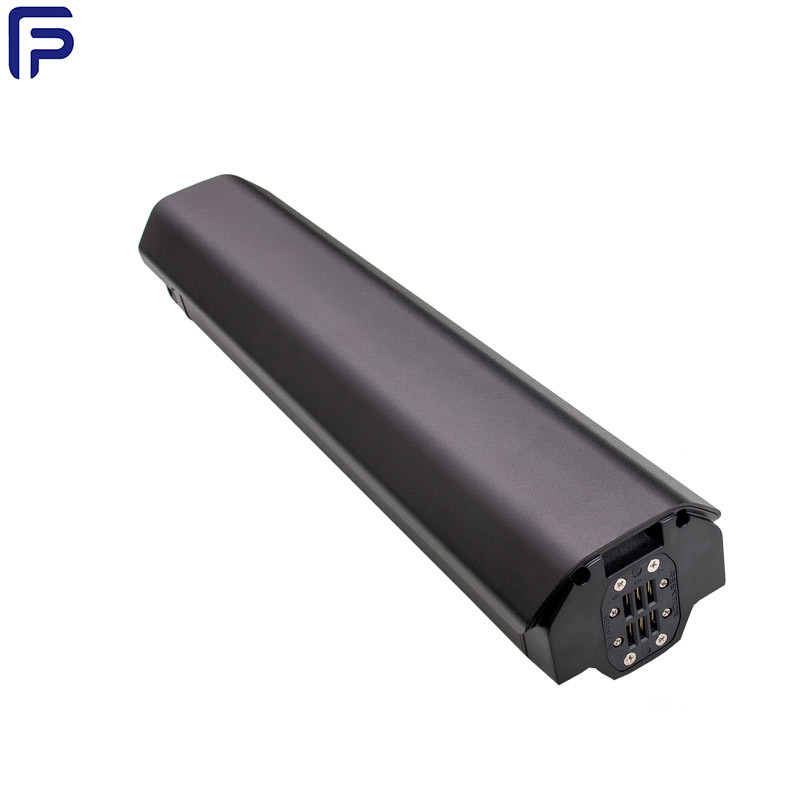

36V17.5AH OEM Rechargeable Electric Ebike Battery Pack  Bicycle  Lithium Ion Cells 1

OEM/ODM Service:

If you want to display your own brand logo in products, bags, labels or anywhere.

Our OEM and ODM services are ready to do it.



Delivery Time:

- Material Preparation Time: 7-15 days (or inventory)

- Production & Assembly Time 3-10 days

- Testing & Packaging Time: 2-10 days

- Total Delivery Time: 30-45days

- The faster delivery could be negotiable.
