48V 13S3P 15AH Electric Bicycle Battery Deep Cycle For E Bike
Contact Person : YI QUAN
Phone Number : 13631634942
Whatsapp : +8613662635407
| Minimum Order Quantity : | 300PCS | Price : | Negotiated The Price |
|---|---|---|---|
| Packaging Details : | Customer Requirements | Delivery Time : | 30-45 work days |
| Payment Terms : | T/T, D/P, L/C, D/A | Supply Ability : | 800PCS /Day |
| Place of Origin: | CHINA,GuangDong | Brand Name: | FUNPACK |
|---|---|---|---|
| Model Number: | FP-JY-MINI |
|
Detail Information |
|||
| Certification: | CE/ROSH/UL/MSDS/UN38.3 | Type: | Li-Ion |
|---|---|---|---|
| Application: | Electric Vehicles | Voltage: | 36V |
| Cycle Life: | 500-1000 Cycles | Capacity: | 14Ah Or Customized |
| Cell: | Panasonic/Samsung/LG/Local Cell | OEM: | Supportable |
| High Light: | Electric Bicycle Battery Pack 13S4P,18650 Electric Bicycle Battery Pack,Rechargeable e bike battery pack 36v |
||
Product Description

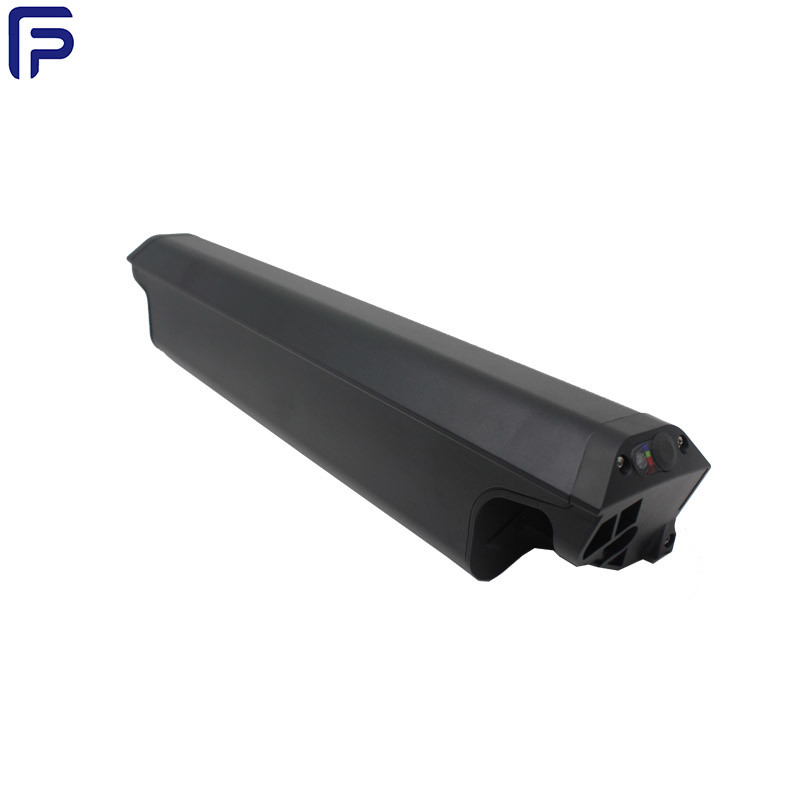

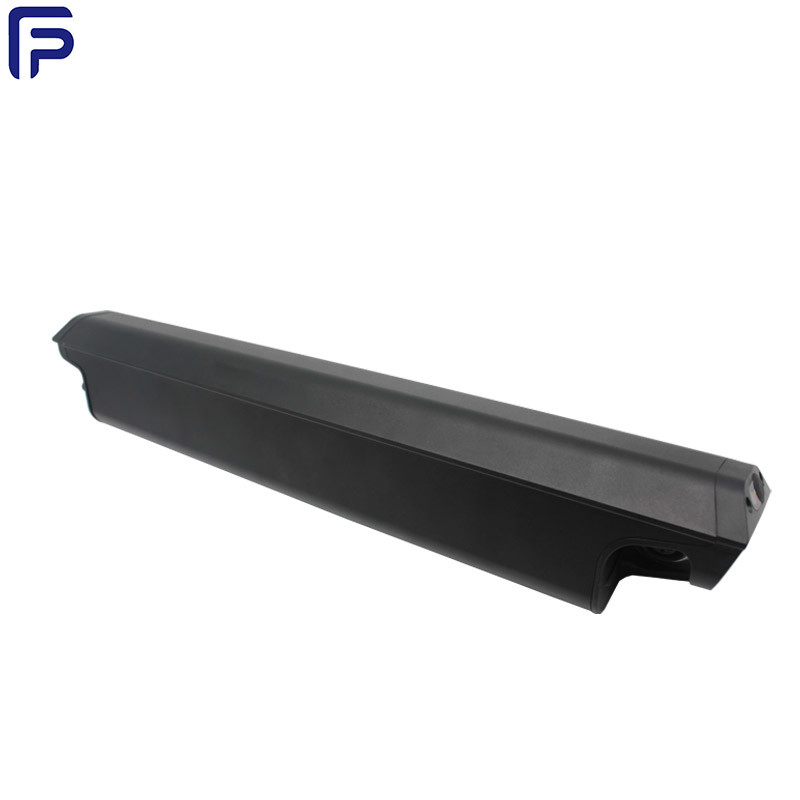

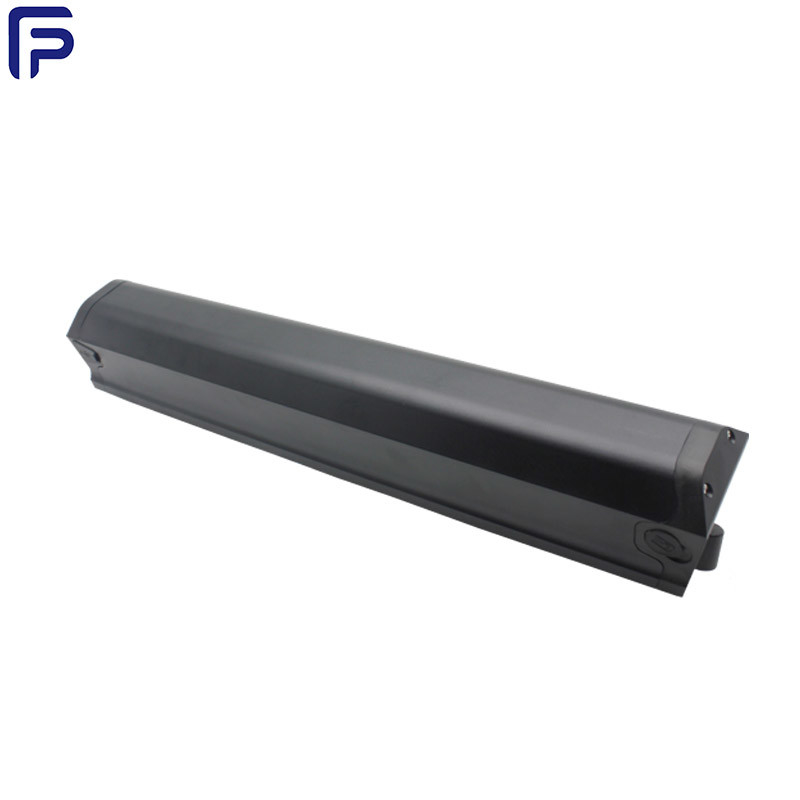

Ternary Rechargeable 36V 14Ah Electric Bicycle Battery Pack 13S4P 18650 Pack
Quick Details:
Voltage:36V Cycle life:500-1000 times
Capacity:14Ah Cell: 18650 40pcs
Case dimension: 458*65*74mm(Max) Warranty: 1 Year/12months
Product Name: Lithium ion Battery 36V 14Ah
Basic specification:
| Item | Specification |
| Cell | 40pcs 18650 |
| Battery model | FP-JY-MINI |
| Max capacity | 36V14Ah |
| Charging port | DC2.1 Opt.3Pin high current |
| Discharge port | 2pin Opt.5Pin |
| LED indicator | single LED with three colours |
| L*W*H | 458*65*74mm |
BMS
| Item | Content | Criterion |
|
OVC |
Over charge detection voltage | 4.250±0.050V |
| Detection delay time | 1.0±0.3S | |
| Over charge release voltage | 4.150±0.050V | |
|
OVD |
Over discharge detection voltage | 2.700±0.080V |
| Detection delay time | 1.0±0.3S | |
| Over discharge release voltage | 3.000±0.100V | |
| Rated operational current | ≤20A | |
|
OCD |
Primary over current detection current | 50±5A |
| Primary detection delay time | 800mS-1200mS | |
| Secondary over current detection curren | 100±10A | |
| Secondary detection delay time | 50mS-200mS | |
| Short protection | Detection condition | ＞200A, 200uS-300uS |
| Protection | yes Exist | |
| Protective release condition | Disconnect short circuit | |
| Charging management | Charging overvoltage protection voltage | 43.5±0.4V |
| Rated charging current | 3A | |
| Software overcharges | 4±0.2A | |
| Detection delay time | 300mS-600mS | |
| Temperature protection | Charging high temperature protection temperature | 50±4℃ |
| Charging protection recovery temperature | 47±4℃ | |
| Discharge high temperature protection temperature | 70±4℃ | |
| Discharge protection recovery temperature | 55±4℃ | |
| Low temperature protect temperature of charging | 0±4℃ | |
| Low temperature recovery temperature of charging | 5±4℃ | |
| Interior resistance | Main loop electrify resistance | ≤60mΩ |
| The static current | Since the power consumption | ≤60.0uA |
| NTC | YES Exist | 10K±1% B3435±1% |
OEM/ODM Service:
If you want to display your own brand logo in products, bags, labels or anywhere.
Our OEM and ODM services are ready to do it.
Packing:
According to Stardard Export Packing.
Carton box, wooden box, wooden pallet
Delivery Time:
- Material Preparation Time: 7-15 days (or inventory)
- Production & Assembly Time 3-10 days
- Testing & Packaging Time: 2-10 days
- Total Delivery Time: 30-45days
- The faster delivery could be negotiable.
